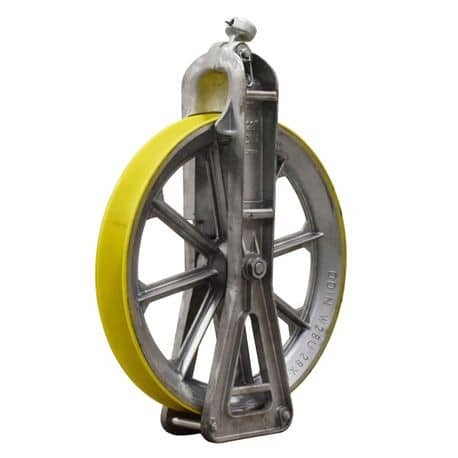

DDIN Wide Stringing Blocks
DDIN Wide Stringing Blocks are constructed of high-strength aluminum alloy, making them lightweight, strong, and durable. The urethane lined sheaves prevent damage to the conductor and the anti-friction ball bearings packed with synthetic aviation grease make these blocks resistant to extreme conditions.
Contact us if you have any questions.
$737.44 – $2,964.50
Call to Order
DNSBW16U
DNSBW22U
DNSBW28U
DNSBW36U
DNSBW42U
Sheave Diameter (A):
16"
22"
28"
36"
42"
Throat Width (B):
4"
4"
4"
5"
5-3/8"
Throat Depth (C):
5-3/4"
5-1/2"
5-1/2"
6-1/2"
6-3/8"
Overall Length (D):
26-3/4"
32-1/2"
38-3/4"
47-1/4"
53"
Max Sheeve Width (E):
3-1/4"
3"
3-1/4"
3-5/8"
4"
Working Load Limit (WLL)
12,000 lbs.
12,000 lbs.
12,000 lbs.
12,000 lbs.
12,000 lbs.
Weight:
40.5 lbs.
62 lbs.
71.5 lbs.
145 lbs.
168 lbs.
DDIN Wide Stringing Blocks
- A wider version of the Standard Stringing Block
- “V-Groove” urethane lined wide-throat sheave
- Designed to improve the installation of T2® and VR2® conductors
- Constructed of aluminum alloy; lightweight and durable
- Anti-friction bearings packed with synthetic aviation grease
- Lifting bars located at the center and at the bottom of the blocks
Product FlyerAdditional information
| Weight | 170 lbs |
|---|---|
| Dimensions | 42 × 6 × 53 in |
| Sheave Size | 16", 22", 28", 36", 42" |
| Block Type | Standard |
| Brand | DDIN |
| Job Type | Distribution |
| Sheave Type | Urethane Lined |
| Sheave Width | Wide |
