DDIN Grounded Stringing Blocks

$894.67$1,907.17

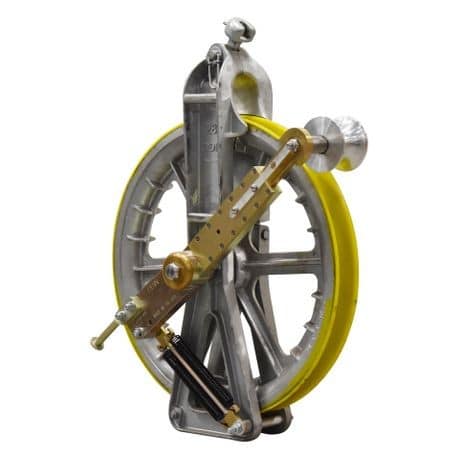

DDIN Grounded Stringing Blocks are assembled with a unique grounding attachment mounted directly to the axle. The 4-½” x ¾” ground stud can accept virtually any ground clamp, while the dual heavy-duty springs keep the roller in constant contact with the conductor. These blocks maintain the same trusted features as DDIN’s Standard Stringing Blocks including urethane-lined sheaves, anti-friction shielded ball bearings packed with aviation grease, and a high-strength aluminum alloy frame.

For a convenient transport and storage solution, add a 47″ x 40″ x 36″ Steel Wire Basket. This will hold up to 15 12″ blocks, 10 16″ blocks, or 6 22″ blocks. For 28″ blocks, the 67″ x 44″ x 41″ basket will hold up to 6 blocks.

Contact us if you have any questions.

DNSB12UG
DNSB16UG
DNSB22UG
DNSB28UG
Sheave Diameter (A):
12"
16"
22"
28"
Throat Width (B):
2-1/2"
2-1/2"
2-1/2"
2-1/2"
Throat Depth (C):
4"
5-1/4"
5-5/8"
5-11/16"
Overall Length (D):
21-7/8"
26-1/2"
31-9/16"
38-3/4"
Max Sheeve Width (E):
1-3/8"
1-3/8"
2"
2-3/8"
Working Load Limit (WLL)
12,000 lbs.
12,000 lbs.
12,000 lbs.
12,000 lbs.
Weight:
30 lbs.
40.5 lbs.
75 lbs.
86 lbs.

Reviews

Be the first to review “DDIN Grounded Stringing Blocks”

We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.

Product Specifications
Weight 75 lbs
Shipping Dimensions 39 × 10 × 39 in
Sheave Size

12", 16", 22", 28"

Block Type

Grounded

Brand

DDIN

Job Type

Distribution

Sheave Type

Urethane Lined

Sheave Width

Standard

Rentable

Rentable

More Product Information

DDIN Grounded Stringing Blocks

  • GOLD Standard grounding attachment mounted to the frame
  • 4-1/2″ x 3/4” Ground stud accepts virtually any ground clamp
  • Dual heavy-duty springs keep the roller in constant contact with the conductor

free pdf download icon 3388 thumb e1683558593662 Product Flyer

Questions? Contact Us!

As always, if you have any questions about this tool, or stock quantities contact us by phone at: 877-860-5666

ot by email: sales@tallmanequipment.com
