Super Beast Digital Combo

Item_number: AISB-D-C Categories: , , ,

For more than 45 years, HJ Arnett Industries has manufactured top-of-the-line instruments used by over 500 utilities. The “Beast of Burden” products are the standard for troubleshooting service issues and neutral issues.

The “Super Beast” products help utility troubleshooters identify if their service drop is providing proper voltage/load.  The efficient use of the Beast products will quickly identify if customer complaints are on the line side (utility) or consumer side.

This device displays digital readings, indicating the condition of the secondary service conductor. The digital meters are slightly more accurate than the analog meters (+/- 1V).

Contact us if you have any questions.

Item_number: AISB-D-C Categories: , , ,

$1,310.00

Item in stock for fast shipping

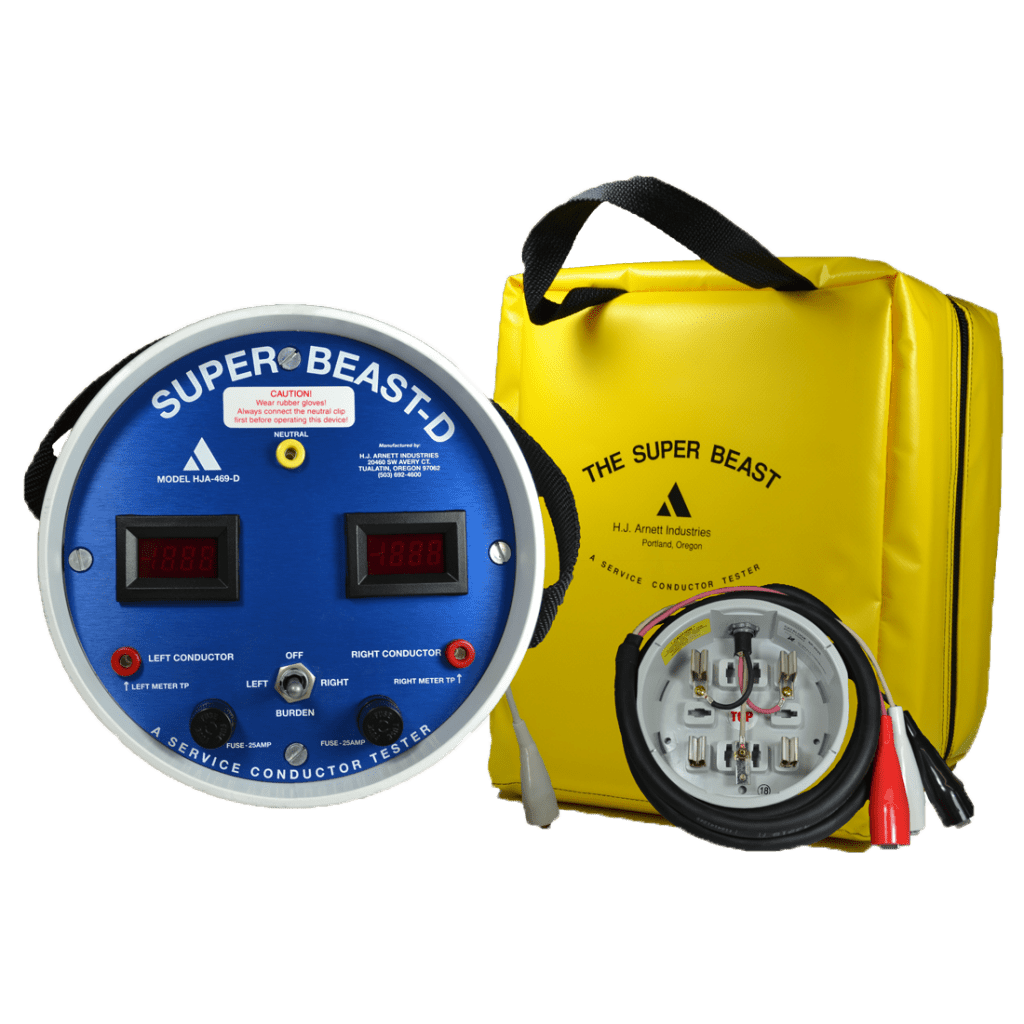

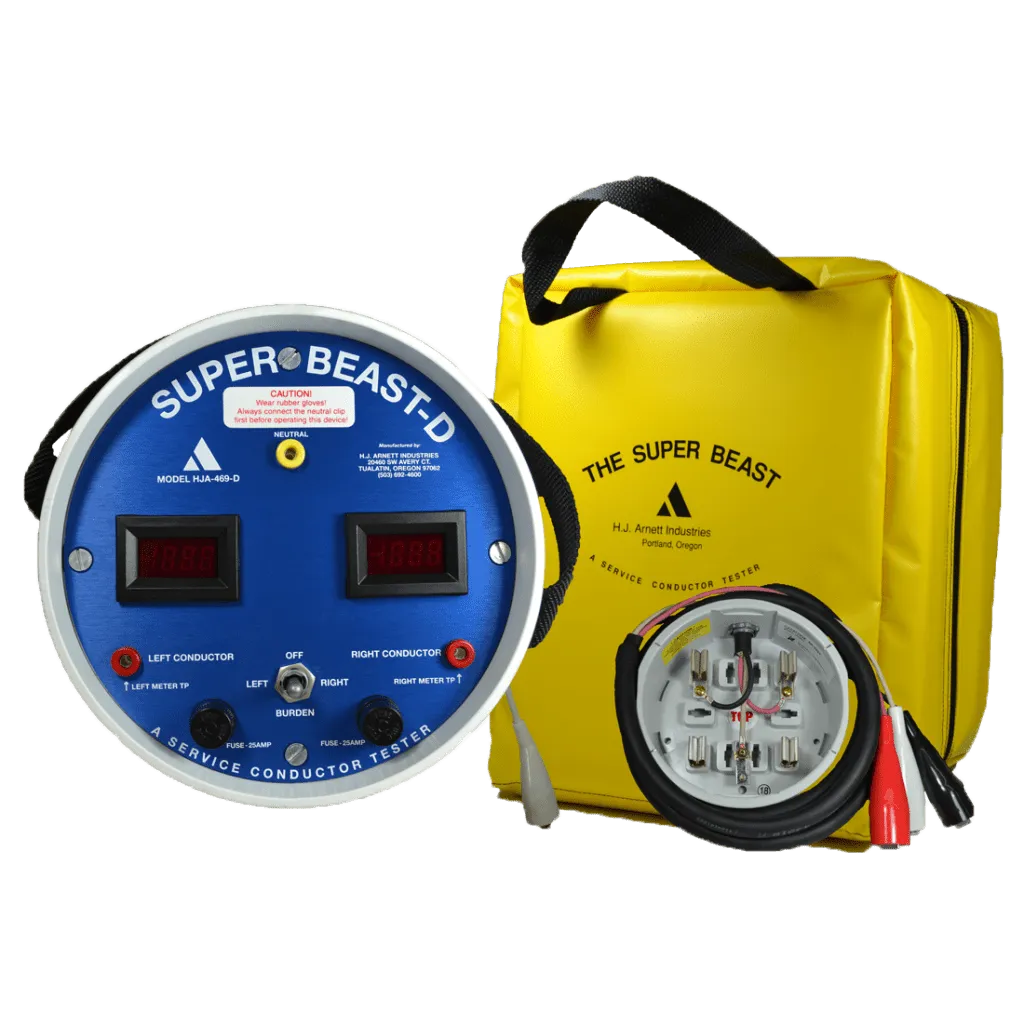

Super Beast Digital Combo

Product Features:

  • • 20 Amp Tester (Line Side) with digital meters
  • • Indicates problems on secondary service
  • • Detects open neutral quickly, and accurately
  • • Isolates and identifies overhead or underground complaints on utility side (line side)
  • • Product is very durable and portable, allowing for efficient troubleshooting.
  • • Verifies condition of secondary conductors and associated connections (see points of connection diagram download)
  • • Includes bag & meter base adapter

Other Features:

Voltmeter Test Jacks: The banana jacks on the front panel are used as test points to measure A.C. voltage with a digital voltmeter or analog meter. The white test point (neutral, ground) is common to both the red and black test points on the Super Beast meter; connect it to the common of the digital voltmeter. To measure the voltage across the right meter, simply touch the other lead of the digital voltmeter to the “Right Conductor” test point on the Super Beast face plate. Repeat the process with the “Left Conductor” to measure voltage across the left meter.

3-Phase Application: The Super Beast can be used effectively on 120/208 volt 3-phase Wye systems using a Portable Meter Base Adapter as follows:

  1. Connect clips of the adapter to neutral, line 1 and line 2.
  2. Take readings on line 1 and line 2.
  3. Move on clip lead from either line 1 or line 2 to line 3.
  4. Take readings again. Interpret the results the same as for single phase operation.

*Note: The Super Beast is not designed for use on 120/240 volt 3-phase delta, because 208 volts are present between ground and “High Phase” of a standard 3=phase delta system.

Instructions PowerPoint

Additional information

Weight 9 lbs
Dimensions 11 × 11 × 13 in
Brand

Arnett Industries

Load

20 Amp Load

Contains

Super Beast Digital, Bag, & Meter Base Adapter
