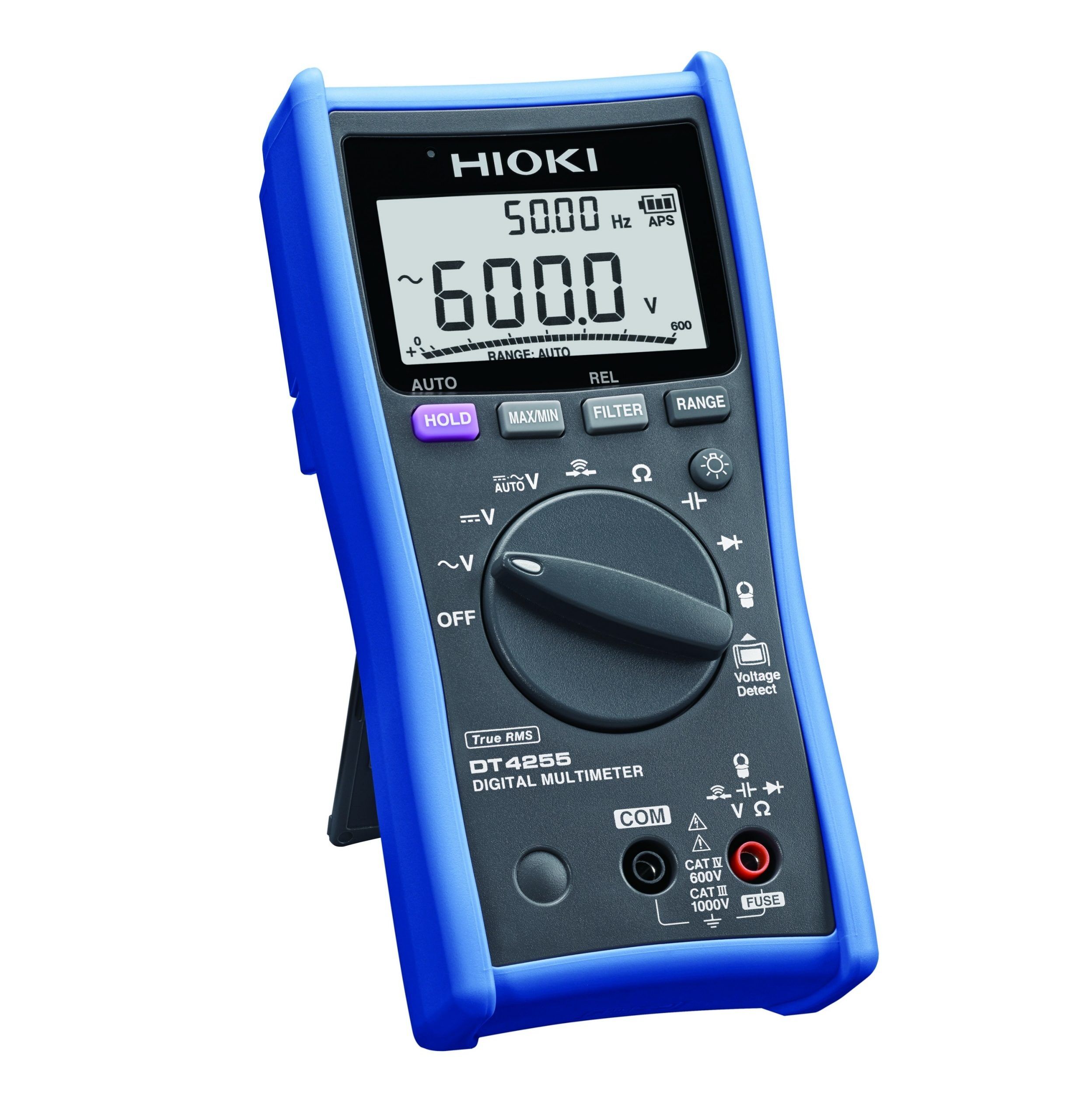

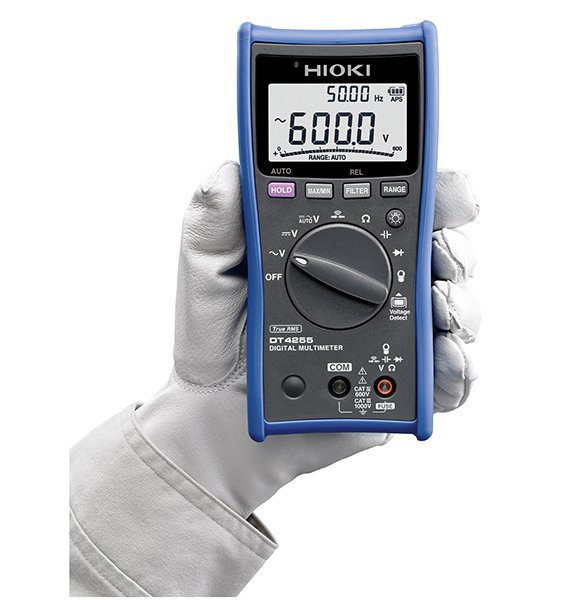

HIOKI DT4255 Digital Multimeter

Item Number: HUDT4255 Categories: , , ,

$213.33

Available on backorder

The Hioki DT4200 Digital Multimeter Series deliver a super fast response rate and safety features that take electrical testing to a higher level. The DT4255 is a digital multimeter designed for maximum safety with voltage measurement terminals that are protected by a fuse.

Contact us if you have any questions.

Available on backorder

100% Secure Payments

Reviews

Be the first to review “HIOKI DT4255 Digital Multimeter”

We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.

Product Specifications
Weight .86 lbs
Shipping Dimensions 2.05 × 3.31 × 6.85 in
DC Voltage

600.0 mV to 1000 V
5 ranges, Basic accuracy: ±0.3 % rdg. ±3 dgt.

AC Voltage

6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz
Basic accuracy 40 – 500 Hz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)

Auto AC/DCV

Yes

Resistance

600.0 Ω to 60.00 MΩ, 6 ranges, Basic accuracy: ±0.7 % rdg. ±3 dgt.

AC Current (use with Clamp on probes)

10.00 A to 1000 A, 7 ranges, Add the Clamp on probe accuracy to basic accuracy 40 – 1 kHz : ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)

Voltage Detection

Hi: AC40 V to 600 V, Lo: AC80 V to 600 V

C (capacitance)

1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.

Frequency

99.99 Hz to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage),
Basic accuracy: ±0.1 % rdg. ±1 dgt.

Continuity Check

Continuity threshold [ON]: 25 Ω or less,
[OFF]: 245 Ω or more,
Response time: 0.5 ms or more

Diode Test

Open terminal voltage: 5.0 V or less, Testing current 0.5 mA or less,
Threshold of forward voltage: 0.15 V to 1.5 V

Other Functions

Filter function, Display value hold, Auto hold, Max/Min/Average value display, Relative display, Auto-power save, USB communication (option)

Display

Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph

Display Refresh Rates

5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s)

Power Supply

LR03 alkaline batteries ×4, Continuous use: 130 hours (backlight OFF)

Accessories

Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4

Brand

Hioki

More Product Information

HIOKI DT4255 Digital Multimeter

KEY FEATURES

• Maximum safety in the field by absolutely preventing short-circuit accidents with fused measurement terminals and current-limiting resistor
• ±0.3% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
• Low-pass filter (100 Hz/ 500 Hz) cuts high harmonics (when measuring inverter fundamental waveforms)
• Connect to PC with USB communication function (optional)
• Broad -25°C (-13°F) to 65°C (149°F) operating temperature range
CAT IV 600 V, CAT III 1000 V

Manual download

Catalog download
