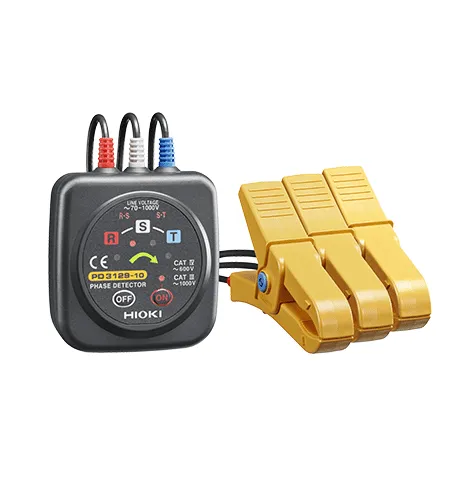

HIOKI Phase Detector

Item Number: HUPD3129-10 Categories: , , , Tag:

$281.31

Hioki’s non-contact voltage detection and measurement technology place efficiency and safety as priority considerations with the goal of protecting customers that need to conduct on-site electrical work as part of renovations and expansions of manufacturing plants and buildings. Model PD3129-10 is a non-contact phase rotation meter that detects the phase of electrical current flow within insulated wires without using metallic contact voltage clips. The green arrow indicates normal phase, which can be useful for visual reports that document the proper completion of electrical work.

Contact us if you have any questions.

Item in stock for fast shipping

100% Secure Payments

Reviews

Be the first to review “HIOKI Phase Detector”

We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.

Product Specifications
Weight .53 lbs
Shipping Dimensions 2.76 × 1.18 × 2.95 in
Functions

Phase detection (positive and negative)

Voltage detection method

Static Induction

Voltage Range

70 to 1000 V AC (50/60 Hz) (sine wave, continuous input)

Frequency Range

45 Hz to 66 Hz

Object to be connected

7 mm (0.28 in) to 40 mm (1.57 in) of insulated wiring

Display

Phase detection : Positive ; 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up
Negative ; 4 LEDs lit in counterclockwise order and the buzzer sounds continuously

Battery check function

Power ON lamp: lights up (Power ON), blinks (Battery LOW)

Auto power off

Auto shut off if no activity is detected after power is turned ON for 15 minutes

Power supply

R6P (AA) manganese battery ×2, Continuous use: 70 hr

Accessories

Carrying case ×1, Strap ×1, Spiral tube ×1, Instruction manual ×1, R6P (AA) manganese battery ×2

Brand

Hioki

More Product Information

HIOKI Phase Detector

  •  Simply clip clamps onto wire insulation
  • Green LED arrow clearly shows phase direction, perfect for visual reports
  • CAT III 1000V
  • Rotating LED indicator shows the phase sequence for a 3-phase power supply at a glance
  • Intermittent beeps signal positive phase; continuous tone signals reverse phase
  • Magnetic base allows the instrument to be secured on a distribution panel

Manual download

Brochure download
