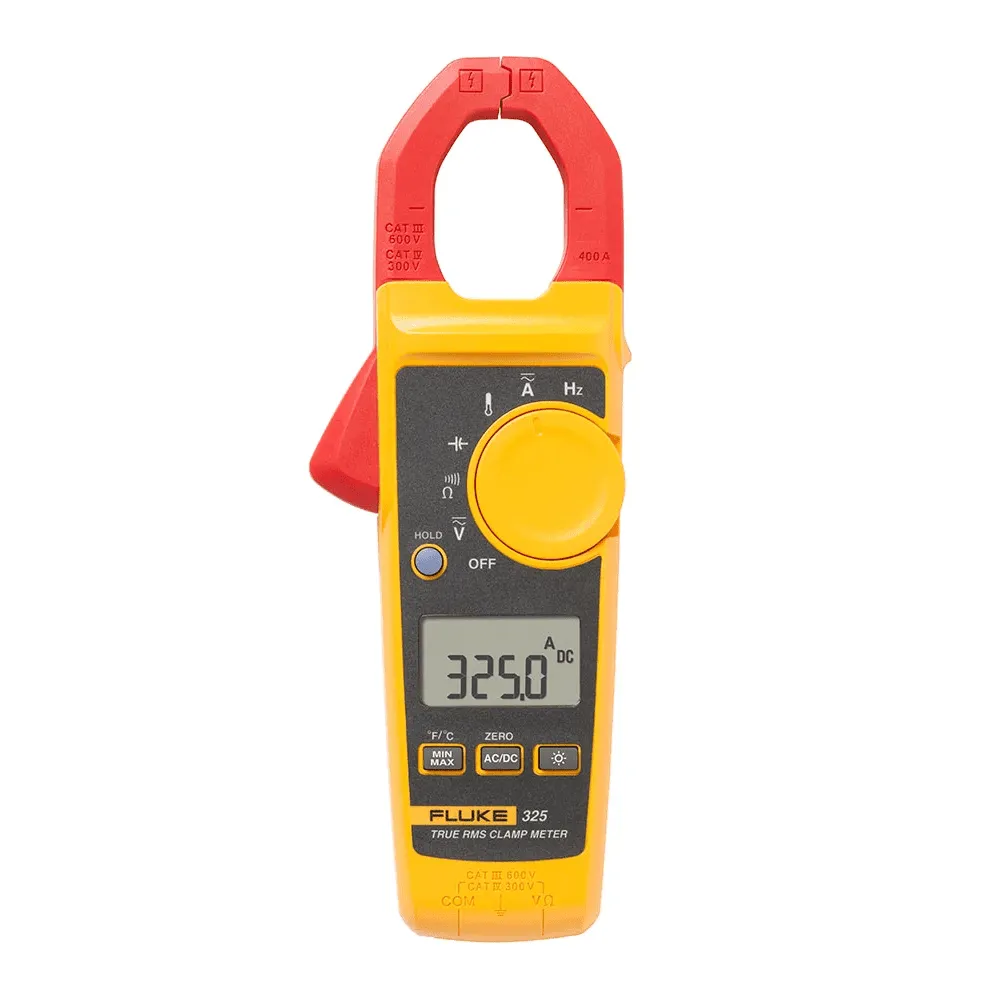

FLUKE 325 True RMS Clamp Meter
Troubleshoot problems safely and accurately
The Fluke 325 True-rms Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians. Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-rms AC current and voltage on non-linear loads, the 325 measures:
- DC current
- DC voltage
- Temperature
- Frequency
You’ll carry fewer tools in your bag and get more work done.
Contact us if you have any questions.
Call to Order
You must be logged in to post a review.
We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.
Product Specifications
| Weight | .75 lbs |
|---|---|
| Shipping Dimensions | 10 × 5 × 3 in |
| Brand | Fluke |
| AC Current | Range: 40.00 A / 400.0 A |
| DC Current | Range: 40.00 A / 400.0 A |
| AC Voltage | Range: 600.0 V |
| DC Voltage | Range: 600.0 V |
| Resistance | Range: 400.0 Ω / 4000 Ω / 40.00 kΩ |
| Continuity | ≤ 30 Ω |
| Capacitance | 0 to 100.0 μF / 100μF to 1000 μF |
| Frequency | 5.0 Hz to 500.0 Hz |
| AC response | True-RMS |
| Contact Temperature | -10.0°C to 400.0°C (14.0°F to 752.0°F) |
| Category Rating | CAT III 600 V |
More Product Information
FLUKE 325 True RMS Clamp Meter
Key features
- True-rms AC/DC current, voltage, temperature, frequency

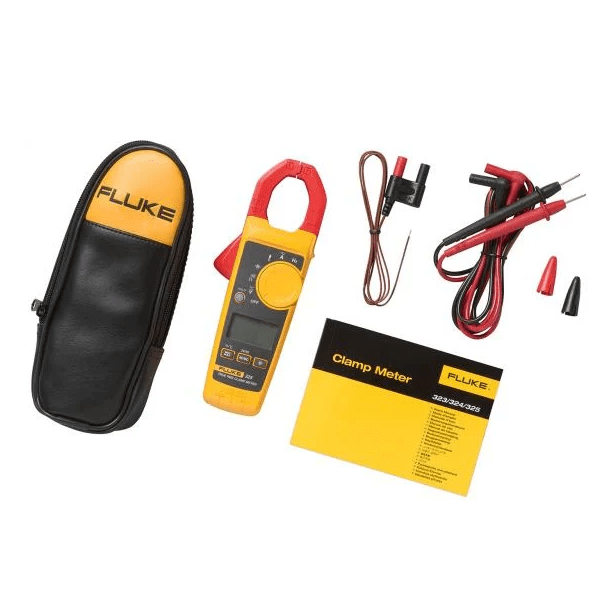

- Clamp meter, test leads, K-type thermocouple and soft case
- Versatile tool performs most front-line measurement tasks
Covers most problems you see day-in, day-out
The 325 gives you a strong combination of measurement functions, in a tool that is reliable, easy-to-use and affordable. This clamp meter offers True-rms AC voltage and current measurements on non-linear signals. Paired with the CAT III 600 V, CAT IV 300 V safety rating the clamp meter can also measure:
- Measures AC/DC current up to 400 A through jaw
- AC/DC voltage to 600 V using test leads
- Measures frequency from 5 Hz to 500 Hz; resistance to 40 kΩ
- Measures temperature from -10 °C to 400 °C with included K-type thermocouple
- Min/Max function records important values
Contact
As always, if you have any qustions about this tool, or stock quantities contact us by phone at: 877-860-5666
ot by email: sales@tallmanequipment.com
