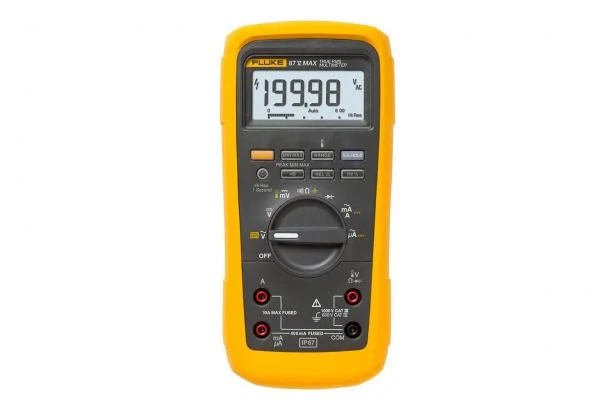

FLUKE 87V MAX True-rms Digital Multimeter

Item_number: FL87V-MAX Categories: , , , ,

The 87V MAX contains all the trusted features of the most popular digital multimeter used today, the Fluke 87V, and then some. From wet, dusty or dark environments to long days, the 87V MAX was designed to help you finish the most on a work site. It features a unique function for accurate voltage and frequency measurements on variable frequency motor drives (VFDs) and other electrically noisy equipment; using true-rms ac voltage and current for accurate measurements on non-linear signals.

Contact us if you have any questions.

Item_number: FL87V-MAX Categories: , , , ,

$514.68

Item in stock for fast shipping

FLUKE 87V MAX True-rms Digital Multimeter

  • Withstands drops up to 4-meters (13 feet) with industrial strength casing and holster
  • Waterproof, dustproof IP67 case for the most extreme work sites

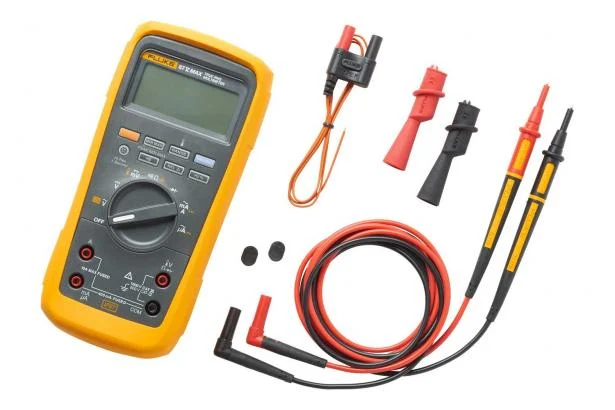

  • Premium TL175 TwistGuard™ test leads
  • Double the battery life of the 87V (up to 800 hours); backlit keys for dark environments

Fluke’s most rugged digital multimeter

The 87V MAX is built with an IP67 rated, industrial-strength case and a removable holster. The holster doubles as a test probe holder for easier, one-handed operation. This meter is fully waterproof and dust proof keep working reliably no matter where your job takes you.

4-meter Drop tested

  • Industrial-strength is no joke, the meter is designed to survive drops up to 4-meters (13 feet).

Withstands hot and cold environments

  • Rely on accurate measurements with the extended operating temperature range of -40 °C (for up to 20 minutes) to +55 °C.

Easy-to-read measurements

The large display digits and 2-level bright, white backlight and backlit keypad buttons make for increased visibility. Along with the high resolution 19,999 count display mode allows you to read measurements easily in any work environment. This multimeter will run for up to 800 hours of battery life and offers measurement capabilities

  • up to 1000 V ac and dc and up to 10 A (20 A for 30 seconds),
  • frequency to 200 kHz
  • min/max/average recording, plus 250 μs Peak min-max to capture variations automatically or
  • use the built-in thermometer.

Manual

Quick Reference Guide



Additional information

Weight 1.5 lbs
Dimensions 8.5 × 4 × 2.5 in
Brand

Fluke

DC Voltage

Range: 0.1 mV to 1000 V
Accuracy: ±(0.05% + 1)
Maximum Resolution: 0.1 mV

AC Voltage

Range: 0.1 mV to 1000 V
Accuracy: ±(0.7% + 4) true-rms
AC Bandwith: 20 kHz with low pass filter; 3 dB @ 1 kHz
Maximum Resolution: 0.1 mV

DC Current

Range: 0.1 μA to 10 A (20 A for 30 seconds maximum)
Amps Accuracy: ±(0.2% + 2)
Maximum Resolution: 0.1 µA

AC Current

Range: 0.1 μA to 10 A (20 A for 30 seconds maximum)
Amps Accuracy: ±(1.0% + 2) true-rms
Maximum Resolution: 0.1 µA

Resistance

Range: 0.1 Ω to 50 MΩ
Accuracy: ±(0.2% + 1)
Maximum Resolution: 0.1 Ω

Capacitance

Range: 0.01 nF to 9999 μF
Accuracy: ±(1% + 2)
Maximum Resolution: 0.01 nF

Frequency

Range: 0.5 Hz to 199.99 kHz
Accuracy: ±(0.005% + 1)
Maximum Resolution: 0.01 Hz

Duty Cycle

Maximum Duty Cycle: 99.9%
Accuracy: ±(0.2% per kHz + 0.1%)
Maximum Resolution: 0.1%

Temperature Measurement Range

–200.0 °C to 1090 °C
–328.0 °F to 1994.0 °F
excluding probe

80 BK temperature probe

–40.0 °C to 260 °C, ± 2.2 °C or 2% whichever is greater
–40.0 °F to 500 °F, ± 4.0 °F or 2% whichever is greater

Conductance

Maximum Conductance: 60.00 nS
Accuracy: ±(1.0% + 10)
Maximum Resolution: 0.01 nS

Diode Test

Range: 2 V
Resolution: 0.001V
Accuracy: ±(1% + 1)

Diagnostics and data storage

Peak Min/Max: 250 μS
Min/Max/Avg: Yes
Reading hold/Auto (Touch) Hold: Yes
Relative Reference: Yes

Display

Digital: 6000 counts updates 4/second
19,999 counts in high–resolution mode
Analog Bar Graph: 32 segments, updates 40/second
Backlight: Two level

Low Pass Filter

Yes

Input Alert

Yes

Safety Rating

IEC61010-1: Pollution Degree 2
IEC 61010-2-033: CAT IV 600 V, CAT III 1000 V

Agency Approvals

CE, CSA

IP Rating

IEC 60529: IP67

Power

Three AA batteries. 800 hours typical, without backlight
