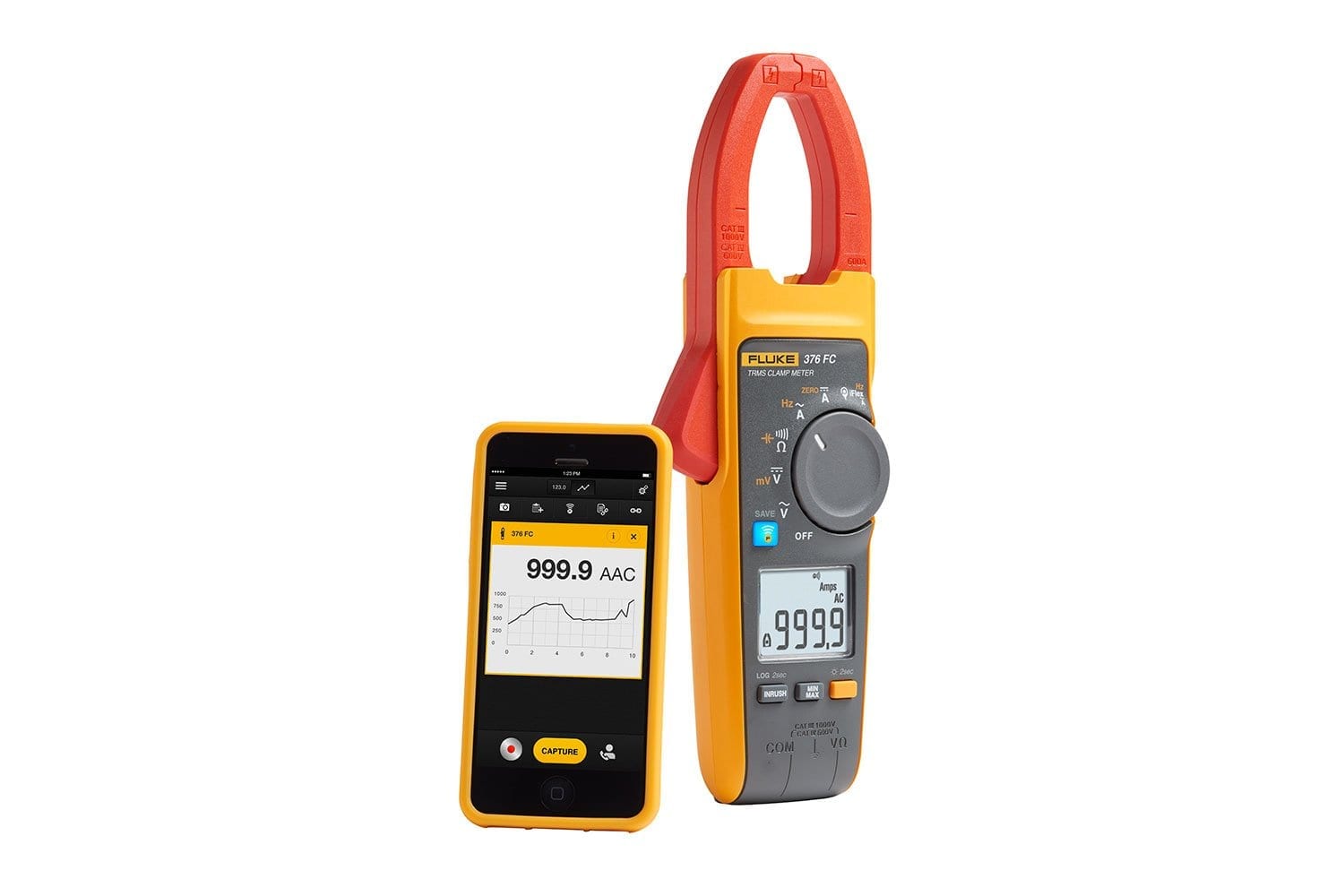

Fluke 376 FC Clamp Meter

Item_number: FLFLUKE-376 FC Categories: , , , Tag:

The Fluke 376 FC True- RMS Clamp Meter with iFlex is the most advanced troubleshooting tool for industrial and commercial electricians. The 376 is part of the Fluke Connect family of wireless testers that let you log, trend, and monitor measurements while safely away from the arc fault area thanks to Bluetooth connectivity.

Clamp Meter Key features

  • Measures AC/DC current with included iFlex current probe
  • VFD low pass filter for accurate measurements of non-linear signals
  • Remotely log, trend, and monitor to pinpoint intermittent faults
  • Inrush measurement to filter out the noise and capture starting current

Contact us if you have any questions.

Item_number: FLFLUKE-376 FC Categories: , , , Tag:

$485.61

Find the cause of difficult problems

The 376 FC clamp meter uses an integrated low-pass filter for accurate measurements of nonlinear signals, such as variable speed drives, electronic ballasts, and other nonlinear loads. The clamp also uses proprietary inrush current measurement technology to filter out the noise and capture the motor starting current exactly as the circuit protector sees it.

Measure:
  • Voltage up to 1000 V AC or DC
  • Resistance up to 60 kΩ with continuity detection
  • Min, max, average, and inrush recording for automatic detection of fluctuations 500 mV DC
  • Measuring range for connection to other accessories
  • 1000 μF capacitance measurement

Safe and comfortable operation

The 376 FC clamp has a CAT III 1000 V, CAT IV 600 V safety rating to give you the highest possible protection in a test instrument.

The included iFlex flexible current clamp makes it easy to access large conductors in tight spaces. The flexible probe:

  • Extends the measurement range to 2500 A AC.
  • Allows frequency measurement up to 500 Hz with body clamp and iFlex

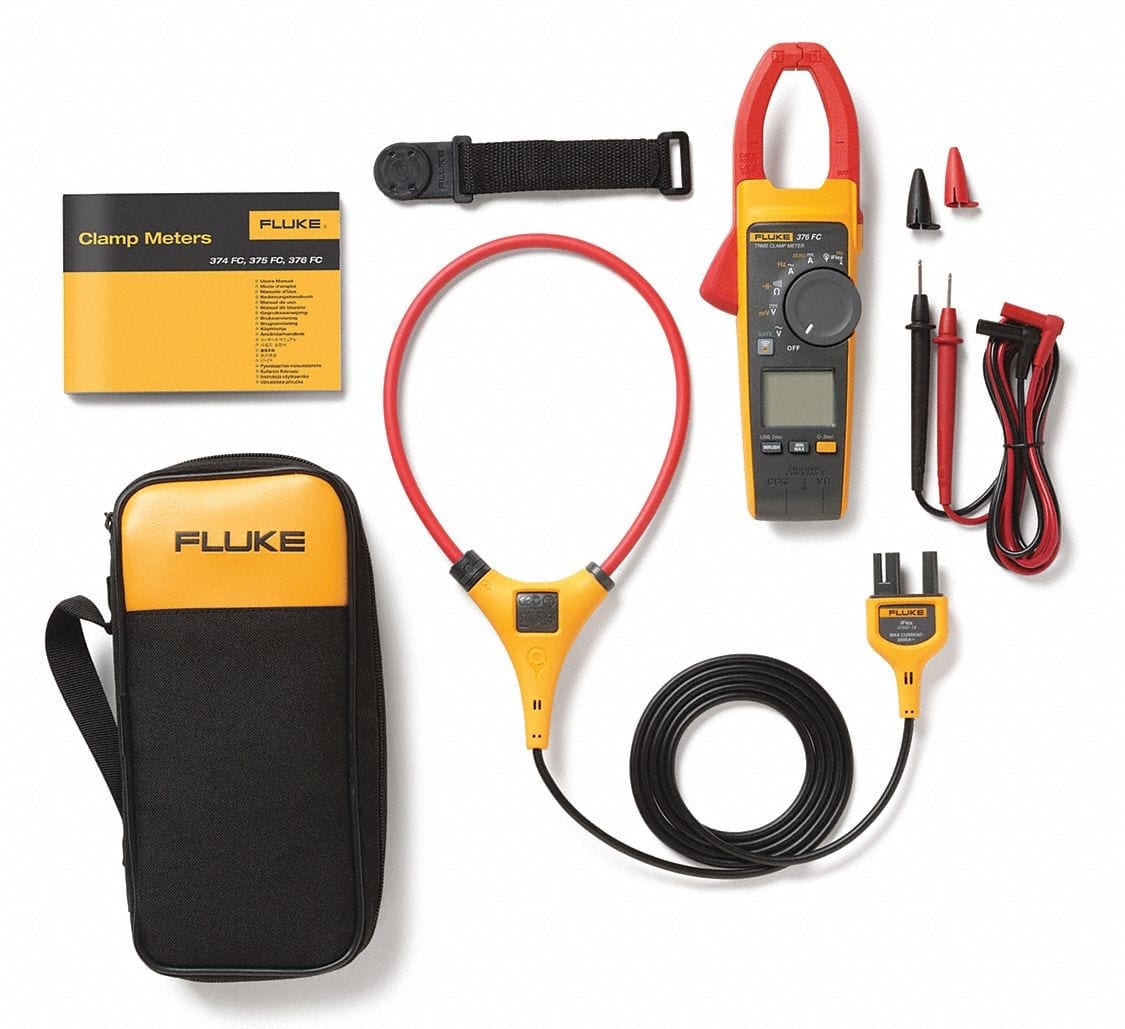

Clamp meter Kit Includes:
  • Fluke 376 FC True-RMS Clamp Meter
  • 18-inch iFlex® Flexible Current Probe
  • TPAK magnetic hanging strap
  • TL75 Test Leads
  • Two AA batteries (Installed)
  • Soft carrying case

Downloads

External Link374 FC/375 FC/376 FC | Users manual

External Link374 FC/375 FC/376 FC | Statement of memory volatility

External Link374 FC/375 FC/376 FC | Safety sheet

External Link374 FC/375 FC/376 FC/902 FC | Calibration manual

External Link370 FC Clamps Data Sheet

External LinkBrochure





Additional information

Weight 0.870826 lbs
Dimensions 9.80315 × 3.34646 × 1.77165 in
Range

999.9 A

Resolution

0.1 A

Accuracy

2% ±5 digits (10 Hz to 100 Hz)
2.5% ±5 digits (100-500 Hz)

Crest Factor (50 Hz/60 Hz)

3 @ 500 A
2.5 @ 600 A
dd 2% for C.F. >2
