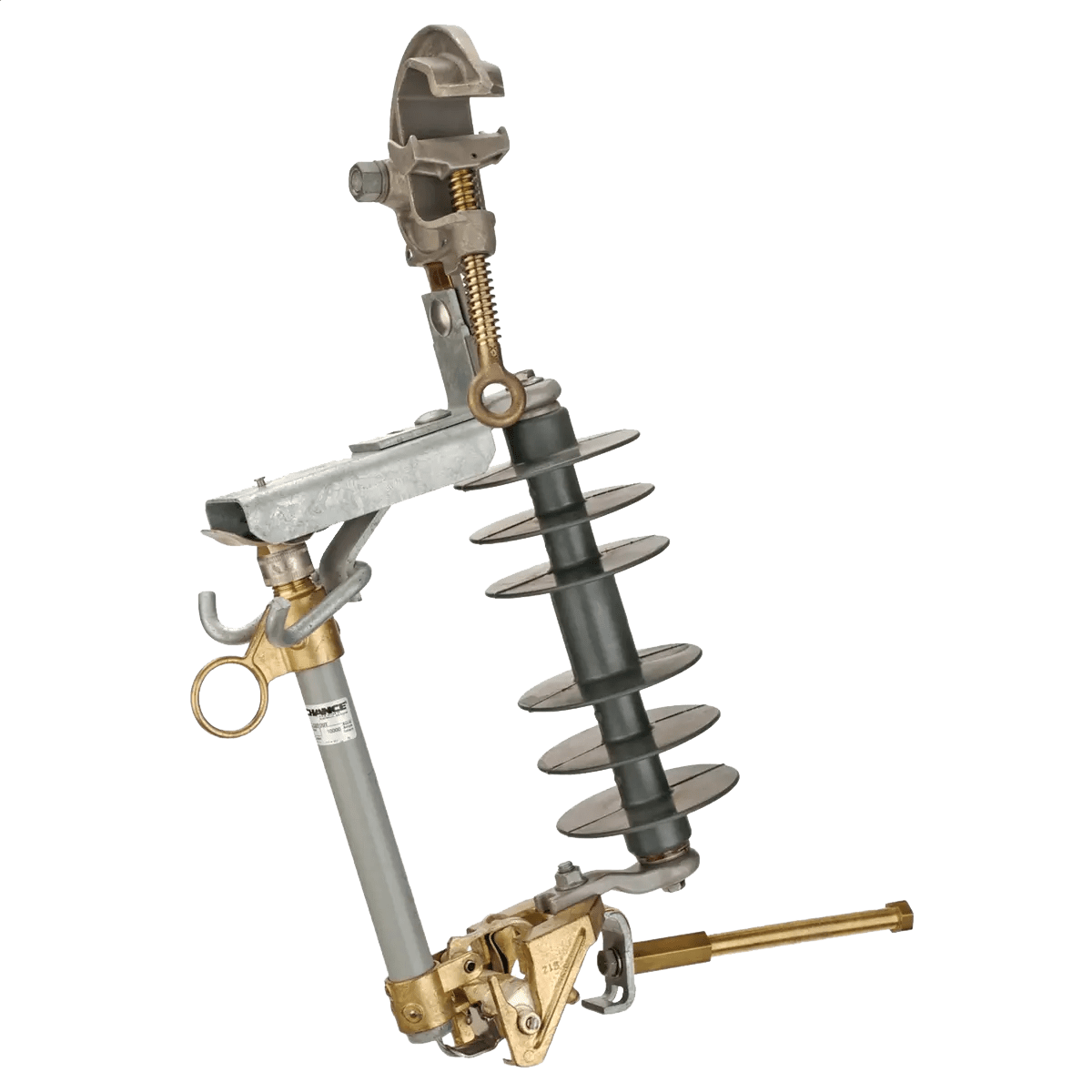

TEMPORARY CUTOUT TOOLS

$495.75$528.18

Temporary Cutout Tools are the best tools to provide fuse protection during live-line maintenance. The brass stud allows the connection of a temporary jumper. Conductor range: #6 solid copper .162 – 1033 kcmil, ACSR 1.25″.

Contact us if you have any questions.

100% Secure Payments

Reviews

Be the first to review “TEMPORARY CUTOUT TOOLS”

We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.

Product Specifications
Weight 12 lbs
Shipping Dimensions 29 × 15 × 6 in
Item #:

PSC6010341, PSC6010342

Brand

ABChance

More Product Information

TEMPORARY CUTOUT TOOLS

To provide fuse protection during live-line maintenance, the temporary cutout tool simply clamps onto primary conductor with a Grip-All clampstick. Brass stud at lower end accepts clamp on temporary tap jumper. Insultated bushing and hot parts are from Chance Type C-Polymer cutouts: Upper contact with integral sleet shield and hooks for operation by loadbreak tool and lower trunnion of cast bronze. Fusetube must be fitted with fuselink rated no larger than 100 amps.
  • To provide fuse protection during live-line maintenance, temporary cutout tool simply clamps onto primary conductor with a Grip-All clampstick
  • Brass stud at lower end accepts clamp on temporary tap jumper
  • Insulated bushing and hot parts are from Chance Type C-Polymer cutouts
  • Upper contact with integral sleet shield and hooks for operation by loadbreak tool and lower trunnion of cast bronze
  • Fusetube must be fitted with fuselink rated no larger than 100 amps
  • Available in ratings for 15kV and 27kV systems
  • Tools come with or without a pivot-lever closing device
  • 250 in.-lb. torque for clamp eyescrew
  • Includes tap stud with 1/2″ diameter



Specsheet download

Sales Drawings download
