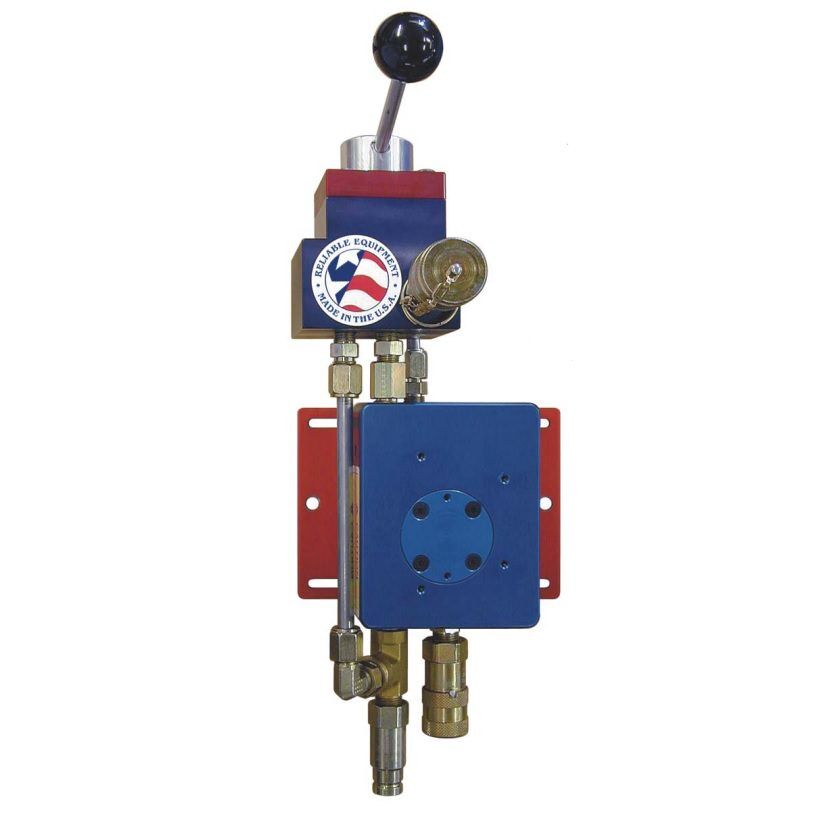

Single Acting Hydraulic Intensifier/Control Valve 10,000 PSI
$3,912.94
Available on backorder
The Single Acting Hydraulic Intensifier/Control Valve provides a unique solution to your high pressure single acting tooling requirements. The REL-10-I-SA provides quick advance and retract for high pressure (10,000 psi) single acting spring return tools, without the need for additional H/P hoses, couplers or an in-line control valve. This system combines the power of a high pressure hydraulic intensifier with the simplicity of a fixed position three way control valve. The REL-10-I intensifier will increase line pressure to a maximum of 10,000 psi and is fully compatible with all high pressure hydraulic equipment.
The PVA-00L3 single-acting control valve, provides 3-way control (Advance, Neutral, Retract) direct from the high pressure source. Together this intensifier/valve package allows return oil to bypass the intensifier and return directly to the tank (return) line, increasing tool speed and performance.
Contact us if you have any questions.
100% Secure Payments
You must be logged in to post a review.
We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.
Product Specifications
| Brand | Reliable |
|---|---|
| Hydraulic System | Open or Closed Center |
| Motor | Gear Driven |
| Operating Pressure | 1,400-2,000 psi |
| Flow Range | 4-7 gpm |
| Optimum Operating Pressure | 1,800 psi @ 6 gpm |
| Output-Fast Advance Mode | 305 in. 3/min |
| Output-High Pressure Mode | 30 in. 3/min |
| Relief Valve Setting | 4,000 – 10,000 psi |
| High Pressure Port | 3/8 in. NPT |
| Inlet Port | 3/8 in. NPT |
| Return Port | 3/8 in. NPT |
More Product Information
Single Acting Hydraulic Intensifier/Control Valve 10,000 PSI
SPECIFICATIONS – HYD. POWER SOURCE
200 PSI back pressure is the maximum agreed standard for the Hydraulic Tool Manufacturers Association (HTMA).
1. Maximum fluid temperature must not exceed 140OF (60OC) at the maximum expected ambient temperature. A sufficient oil cooling capacity is needed to limit the fluid temperature.
2. Maximum flow must not exceed 8 GPM. Install a flow meter in the return line to test the rate of flow in the system before working the tool.
3. Pressure relief valve must not exceed 2,200 PSI. The pressure relief valve must be located in the supply circuit between the pump and the intensifier to limit excessive pressure to the tool.
Any hydraulic power source used with this unit must meet the requirements above.
