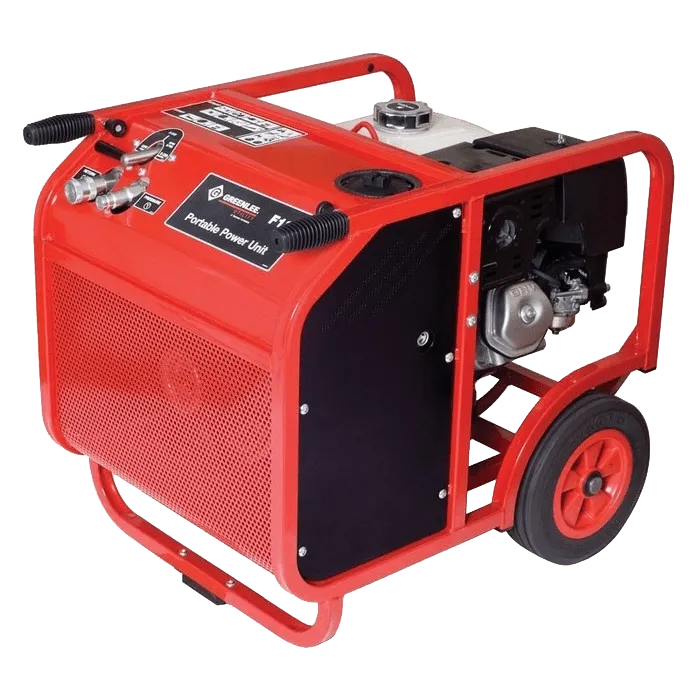

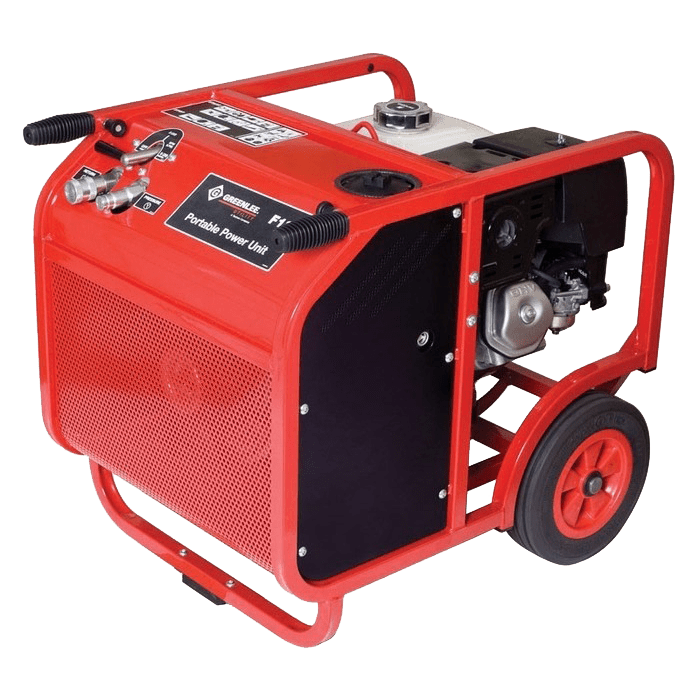

GREENLEE Hydraulic Power Unit

  • Easy pull recoil start and dependable Honda 4-stroke OHV GX390 gasoline engine with low oil alert and shutdown protection system
  • The engine is CARB (California Air Resources Board) certified as well as compliant with upcoming 2011 EPA emissions standards
  • Powder-coated, welded steel tubular frame protects components and allows easy access to all service points
  • Oversized oil cooler and electric fan ensures cool running
  • Large 13 inch (330 mm) no-flat tires ensure easy job site handling and transport over a wide variety of surfaces and soils
  • Quick-release telescoping handles
  • Hydraulic oil-level site gauge
  • HTMA flat-faced couplers and a 25-micron return line filter

Contact us if you have any questions.


GREENLEE Hydraulic Power Unit


Cooling System Oil Cooler, Electric Fan
Dry Weight 168.000 LB (76.000 KG)
Fuel Gasoline 1.700 GAL (6.500 L)
Height (Handle Folded) 25.500 IN (648.000 MM)
Horsepower 13 HP At 3600 RPM (9.7 KW At 3600 RPM)
Hydraulic Oil Capacity 1.800 GAL (7.000 L)
Length 28.000 IN (710.000 MM)
Rated Flow 5 - 8 GPM (19 - 30 LPM)
Rated Pressure 2000 PSI (138 BAR)
Standard CARB (California Air Resources Board) Certified, 2011 EPA Emissions Standard
System Open-Center System
Tire Type Large 13.000 IN (330.000 MM) No-Flat Tires
Width 23.500 IN (597.000 MM)

Instruction Manual

Additional information

Weight 168 lbs
