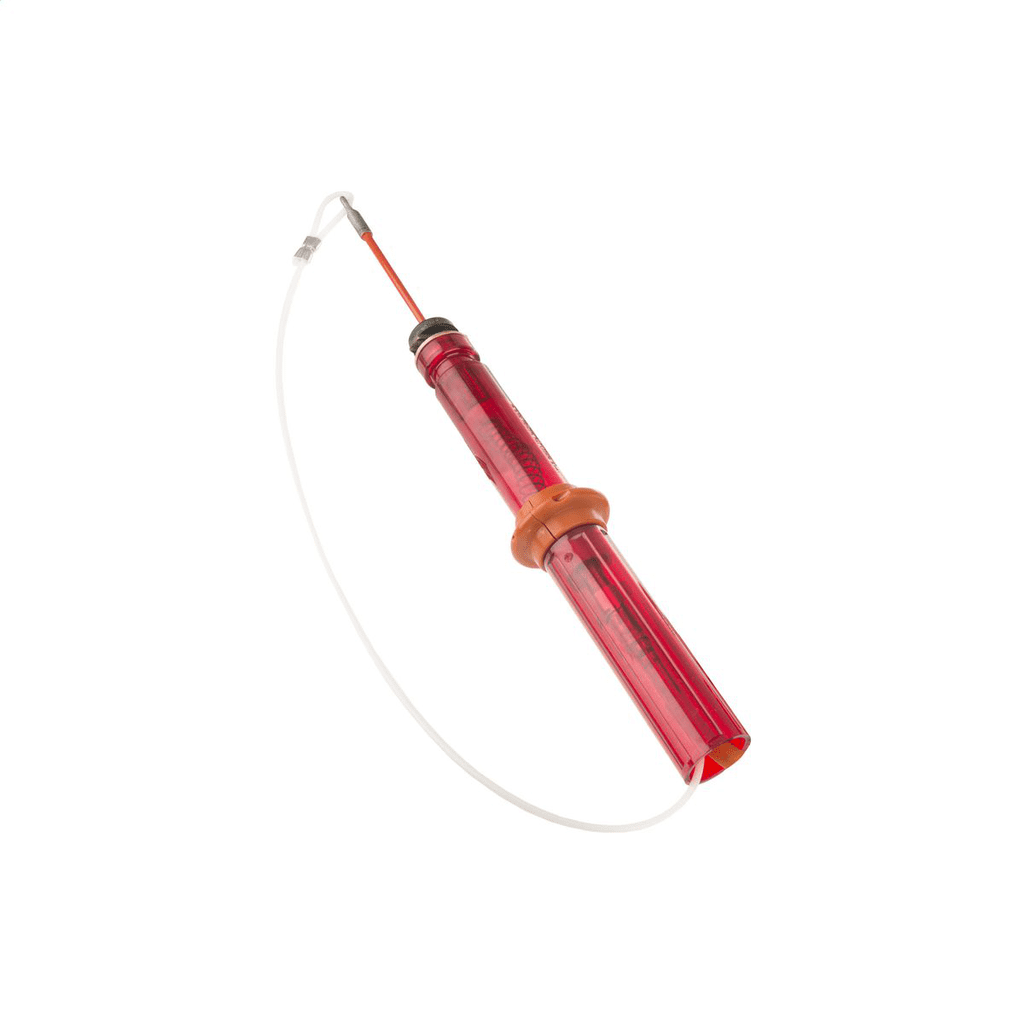

Load-Pickup Tool – 15kV

Item_number: ABC4031631 Categories: ,

Installed on one end of a jumper assembly, this tool can pick up loads and carry 250 amps at 15kV. The spring-loaded contacts are closed by pulling on the insulated lanyard. The contacts cannot be recocked unless the tool is removed from the conductor. Conductor range of #6 to 795 kcmil ACSR.

**This tool cannot be used as a load-break tool.**

Contact us if you have any questions.

Item_number: ABC4031631 Categories: ,

$516.68

Load-Pickup Tool Downloads

Instruction Manual

Sales Drawings



Additional information

Weight 6.5 lbs
Dimensions 35 × 8 × 8 in
Electrical Current Rating

250 A

Conductor Diameter (Main) - Maximum

1.108 in

Conductor Diameter (Main) - Minimum

0.162 in
