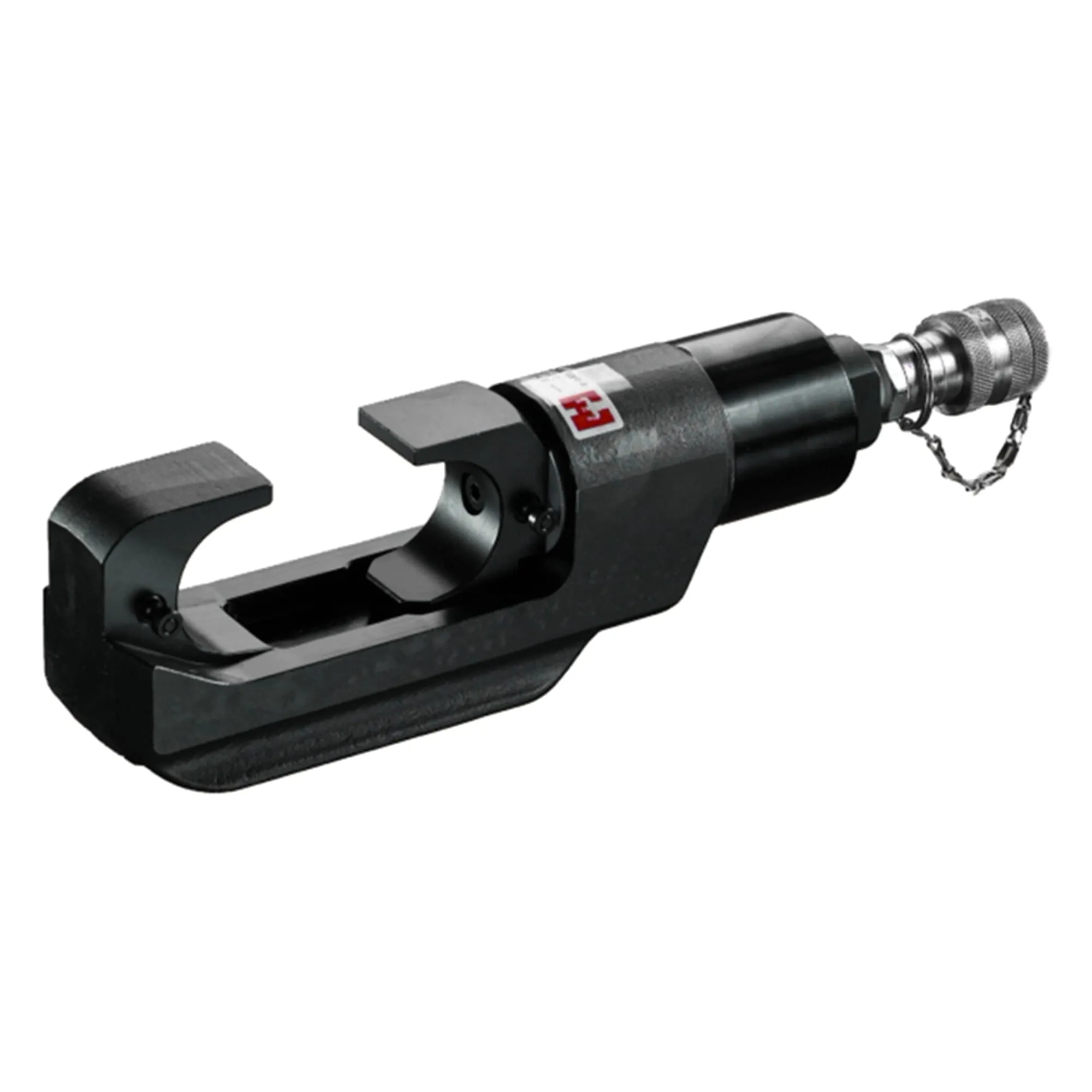

HUSKIE 15 Ton Remote Compression C-Head

The EP-610H is a remote C-head that requires an external 10,000 psi pumping source. It accepts all Huskie HT61 series and Burndy “P” type dies used in the Y-46. When used with a Huskie PU-15 die adapter it will accept all “U” type dies used with any 12 ton tool. This tool is primarily used for cables above 750 MCM or in cases where additional tonnage is required to compress larger lugs, terminals, and sleeves on tension connections. It is most always used on larger underground cables up to 1000 MCM. The EP-610H is supplied with a 3/8″ male screw type coupler and carrying case.

NOTE: When using any of these high-pressure tools|always use 10,000 psi rated non-conductive hose (NC-16 series).

Contact us if you have any questions.


HUSKIE 15 Ton Remote Compression C-Head

  • 3/8” Male screw type coupler provided
  • Protective rubber boot on “C” head
  • Also Available for T&B Style 15 Ton Dies
  • (Model EP-610TB)
  • PU-15: “U” Die Adapter for 15 Ton Tools
  • 2″ Jaw Opening

Operation Manual

Tool Facts

Additional information

Weight 14.5 lbs
Dimensions 14.5 × 4 × 2 in
Item Description

Hydraulic head, “U” Die Adapter
