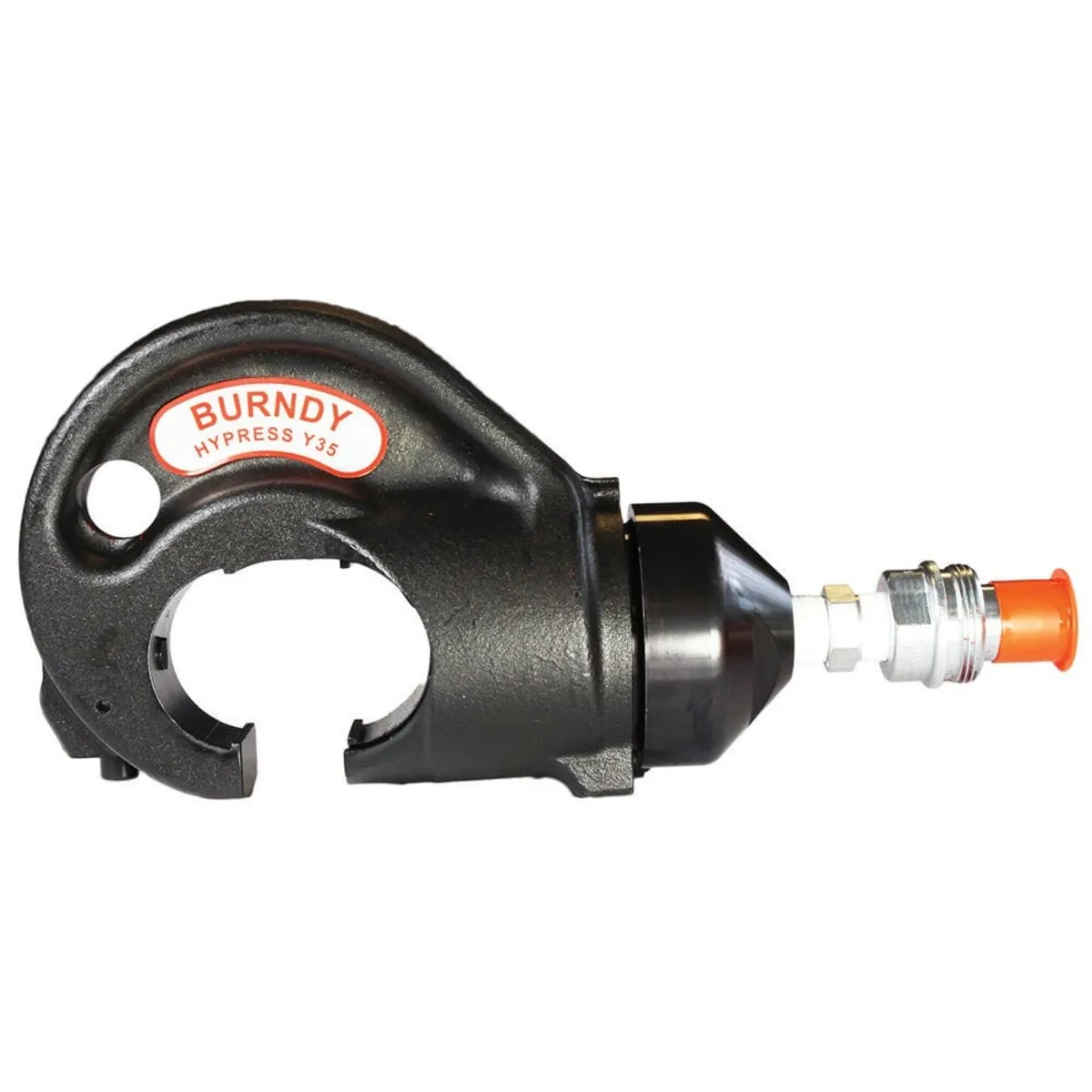

BURNDY 12 Ton Compression Head

12-Ton Remote Compression Head Crimper, Operating Pressure 10,000 psi, Uses U Dies, #8 AWG – 750 kcmil Copper and Aluminum, up to 3/4″ Ground Rod.

Easy tool removal from line conductor after compression taps are installed with the open C shaped head, Easily lifted into working position using the lifting eye, Long life expectancy is provided with heavy-duty reinforced back

5 year limited warranty

Contact us if you have any questions.

$2,004.92

BURNDY 12 Ton Compression Head

  • Lifting eye
  • 0.95” jaw opening
  • Uses U style dies
  • Positive die lock buttons

Sales Drawing

Additional information

Weight 8 lbs
Dimensions 9.75 × 4.75 × 9.25 in
Application

Copper, Aluminum, ACSR, HYGROUND® Compression Grounding, Ground Rod

Crimp Force Capacity

12 Ton

Jaw Width

.95"

Die Type

U Die

EU RoHS Indicator

Yes

Trade Name

Hypress

Crimping Ranges

Copper #8 str. – 500 kcmil code cable (Grounding Terminals, Grounding Splices); Copper #8 str. – 500 kcmil and up to 3/4” ground rod (Grounding Taps); Copper #8 str. – 750 kcmil code cable, N30 – N500 Navy cable, flexible, and extra flex (Terminals (Bare), Terminals (Insulated), Splices to 400 kcmil only; Aluminum #8 str. – 750 kcmil code cable (Terminals, Splices to 350 kcmil only)
