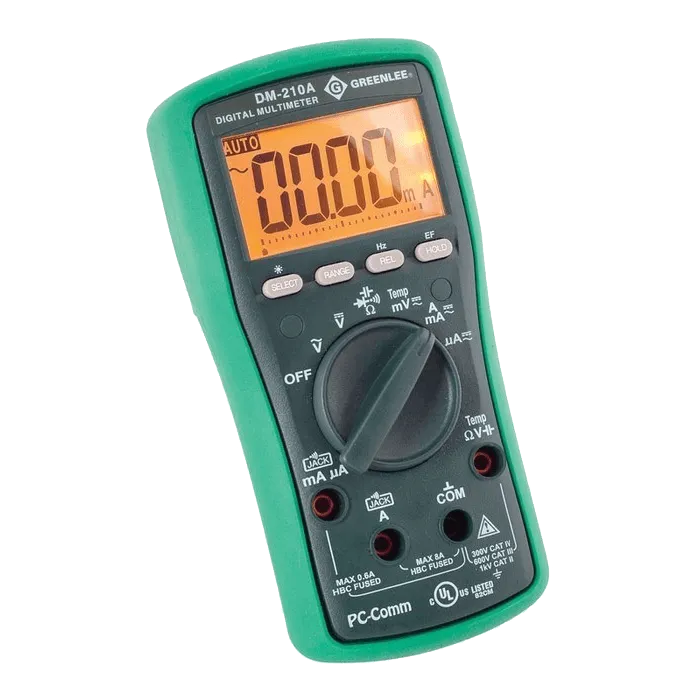

GREENLEE DM-210A Digital Multimeter
$130.92
Available on backorder
The Greenlee DM-210A Digital Multimeter is a hand-held testing device with the following measurement capabilities: AC and DC voltage, AC and DC current, frequency, and resistance. It also checks diodes and verifies continuity. An optional optically isolated computer interface with software facilitates the recording of readings from the multimeter to a computer.
Contact us if you have any questions.
You must be logged in to post a review.
We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.
Product description
GREENLEE DM-210A Digital Multimeter
- Measures voltage, current, resistance, and frequency
- Tests continuity and diodes
- Backlit LCD with 6,000 count display
- Two voltage detection modes – non-contact or using a single test lead
- BeepJack warns when test leads are incorrectly inserted in current measurement terminals
- Automatic and manual range selection
- Relative offset mode to see changes in measurements
- Data hold
- Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
- Lifetime Limited Warranty

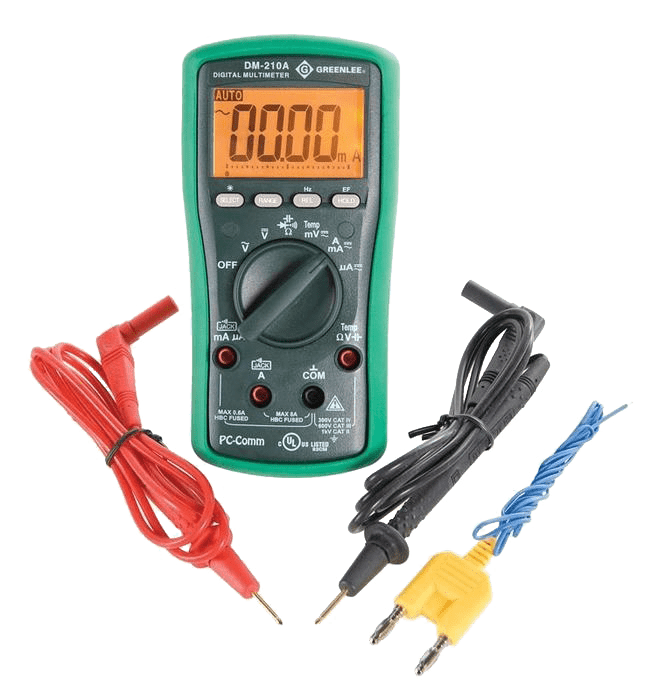

- Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400°F/204°C max), test leads, protective boot
- Measures capacitance
- Measures temperature using a type K thermocouple
Product Specifications
| Weight | 1.35 lbs |
|---|---|
| Shipping Dimensions | 10 × 10 × 12 in |
| Amperage Measurement | 600, 6000 MICAMP, 60, 600 MILAMP, 6, 8 AMP |
| Battery | (2) 1.5 V AAA |
| Capacitance | 60, 600 NFD, 6, 60, 600, 3000MFD |
| Display | Backlit LCD With 6,000 Count |
| Frequency Measurement | 10 HZ – 50 KHZ Sine Wave, 5 HZ – 999.9 KHZ Logic Level Square Wave |
| Includes | (2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400 DEG F/204 DEG C max), Test leads, ProtectiveBoot |
| Measurement Category | CAT IV 300 V, CAT III 600 V, CAT II 1000 V |
| Replacement Part | TSG-3 Sure-Grip Test Leads |
| Resistance Measurement | 600 OHM, 6, 60, 600 KOHM, 6, 60 MOHM |
| Standard | CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed |
| Temperature Rating | K Type, -58 To 1832 DEG F (-50 To 1000 DEG C) |
| Type | Digital |
| Voltage Measurement | 60, 600 MILV, 6, 60, 600, 1000 V |
| Brand | Greenlee |
