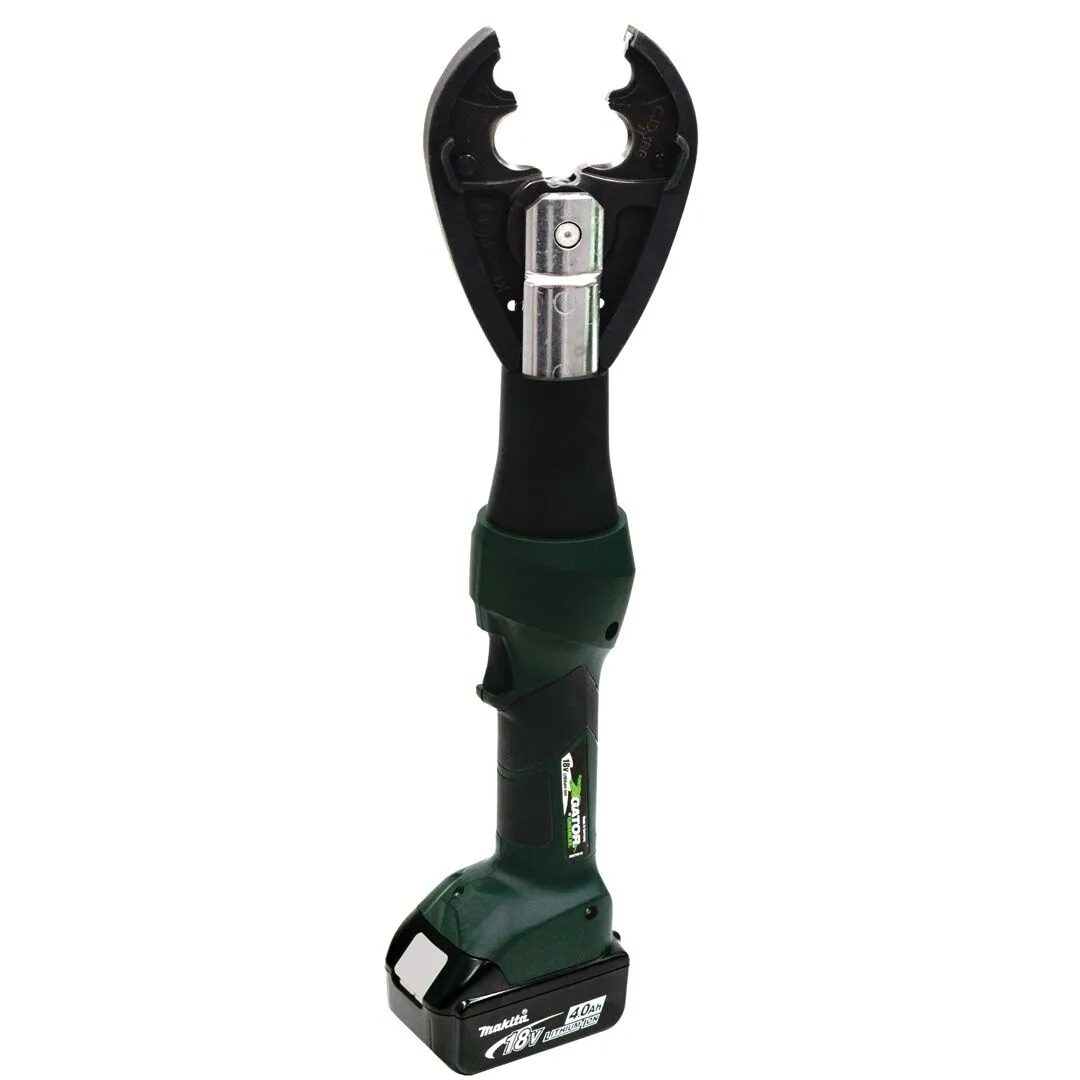

Greenlee 6 TON IN-LINE CRIMPERS

These Greenlee 6 Ton In-Line Crimpers are equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.

Contact us if you have any questions.

$1,818.04$1,825.73

Clear

Greenlee 6 TON IN-LINE CRIMPERS

  • The EK425LX is operated with one hand, leaving the other hand free to position the cable and connector
  • The crimping jaws open wide to fit easily over connectors
  • In-line tool style is lightweight and very easy to control
  • To help prepare for a crimp, the jaws can be jogged closed until they just grip the connector, allowing the operator to position the cable in the connector before finishing the crimp
  • The EK425LX will complete about 325 crimps per battery charge on 4/0 AWG splices
  • When a crimp is fully completed, the EK425LX signals the operator by automatically opening the jaws
  • It is then ready to make the next crimp
  • And, when the crimping jaws need to be opened before a crimp is complete, the operator can simply push a button on the back side of the tool
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is belows specifications

Greenlee EK425T and EK425X GATOR® Battery-powered Crimping Tools Instruction Manual

Greenlee GATOR Battery-powered In-line T/X Tools Service Manual

Brochure

Additional information

Weight 14 lbs
Dimensions 25 × 14 × 10 in
Type

Die style crimper

Application

6 Ton Crimping

Handle Type

In-Line Style with over-molded rubber grip

Standard

C/US UL Listed

Wire Size

Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 – 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR

Crimping Force

12,000 lbs. (53 kN)

Crimping Capacity

Connector 10-1/0 AWG 5/8 IN Service Entrance Connectors, 1/0-4/0 AWG 0.840 Service Entrance Connectors, 6 – 4/0 AWG Aluminum H Taps, 10-2 AWG Copper H Taps, 6-2/0 AWG Copper Tension Splices, 6-4/0 AWG All Aluminum Tension Splices, 4-1/0 AWG One Piece ACSR

Connector Type

Service entrance connectors, H-Taps, Tension splices, Jumper splices, Stirrups, Color-coded lugs & splices

Head Style

D3 and Fixed BG, Kearney

Charger

120 VAC, 12 VDC
