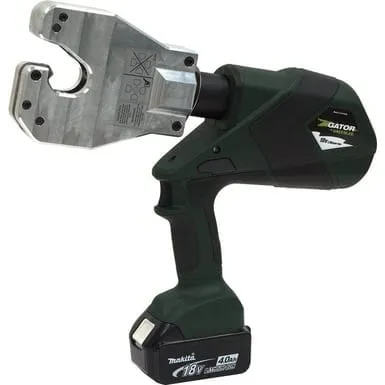

Greenlee 6 Ton Crimper Quad

The Greenlee 6 Ton Crimper Quad is equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.

Contact us if you have any questions.

$3,725.21$3,729.35

Clear

Greenlee 6 Ton Crimper Quad

  • Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • State of the art 18V lithium-ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • LED light provides the operator with the battery charge and tool maintenance status
  • The two-stage hydraulic system provides fast advance and power speeds, saving time
  • Forward handle position improves tool balance
  • One trigger controls all tool functions
  • Crimping head rotates 350°
  • Tools automatically retract when the crimping cycle is complete
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • LED work light illuminates dark work areas
  • Greenlee battery-powered crimping tools now use bio-degradable oil
  • Smart chargers control the charging current, charging voltage, and battery temperature to maximize battery life
  • Utilizes four indentors to make the crimp
  • The flip-top style uses a pull pin to open head for easy removal from the connector
  • U.S. Patents #6,206,663 and #6,065,326
  • Available with 120V or 12V  battery charger

EK6ATT and EK6ATX GATOR® Battery-powered Dieless Crimping Tools Instruction Manual

GATOR® Battery-powered Pistol Grip T/X Tools Service Manual

Brochure

Additional information

Weight 12 lbs
Dimensions 14 in
Type

Dieless style crimper

Application

6 Ton Crimping

Handle Type

Pistol Style with over-molded rubber grip

Charger

12 VDC, 120 VAC

Standard

C/US UL Listed

Wire Size

6 AWG – 500 kcmil Cu, 6 AWG – 400 kcmil Al

Crimping Force

12,400 lbs. (55 kN)

Crimping Capacity

500 kcmil (MCM) Copper, 400 kcmil (MCM) Al

Connector Type

Color-coded lugs and splices
