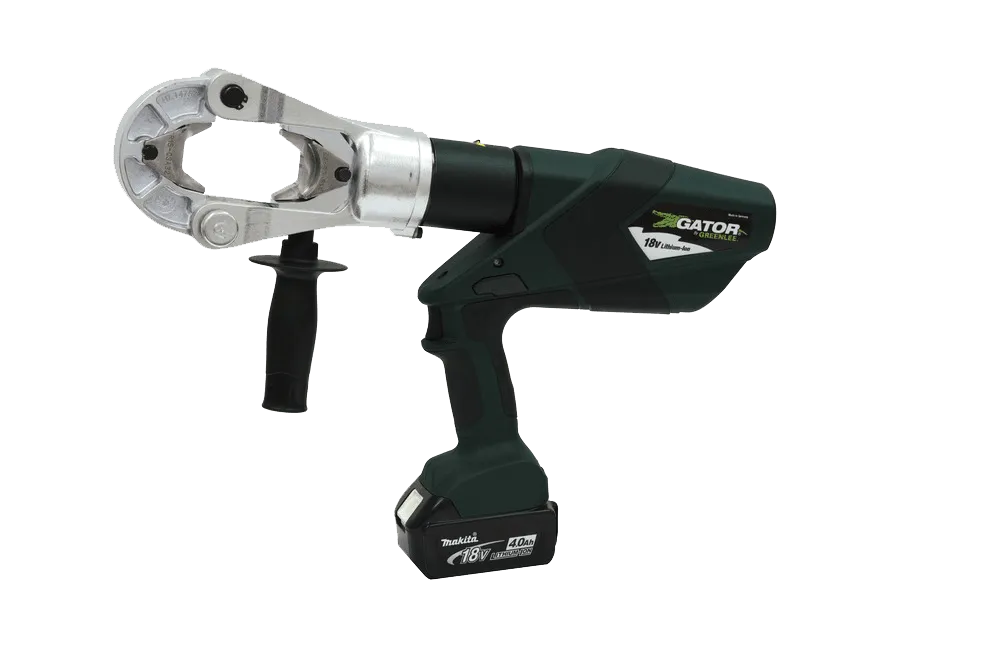

Greenlee 15 Ton Crimper Flip T

The Greenlee 15 Ton Crimper is equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.

Contact us if you have any questions.

$4,455.38$4,465.08

Clear

Greenlee 15 Ton Crimper Flip T

  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • State of the art 18V lithium-ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • LED light provides the operator with the battery charge and tool maintenance status
  • The two-stage hydraulic system provides fast advance and power speed, saving time
  • Forward handle position improves tool balance
  • One trigger controls all tool functions
  • Crimping head rotates 350°rees
  • Tools automatically retract when the crimping cycle is complete
  • Flip-top configuration, reduction in deflection, with improved crimp consistency
  • Quick-release locking pin
  • Utilizes "P" and "U" style crimping dies
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable

EK1550FT and EK1550FX GATOR® Battery-powered, 15-ton Crimping Tools

GATOR® Battery-powered Pistol Grip T/X Tools Service Manual

Brochure

Additional information

Weight 16.3 lbs
Dimensions 18.5 × 4 × 14 in
Type

Dieless style crimper

Application

15 Ton Crimping

Handle Type

Pistol Style with over-molded rubber grip

Charger

12 VDC, 120 VAC

Standard

C/US UL Listed

Wire Size

8 AWG – 1500 kcmil Cu, 8 AWG – 1250 kcmil Al

Crimping Force

30,000 lbs. (134 kN)

Crimping Capacity

1500 kcmil (MCM) Copper, 1250 kcmil (MCM) Al

Connector Type

Color-coded lugs and splices
