The Greenlee EK1240LX with 1.65″ opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry U style crimping dies.

Contact us if you have any questions.

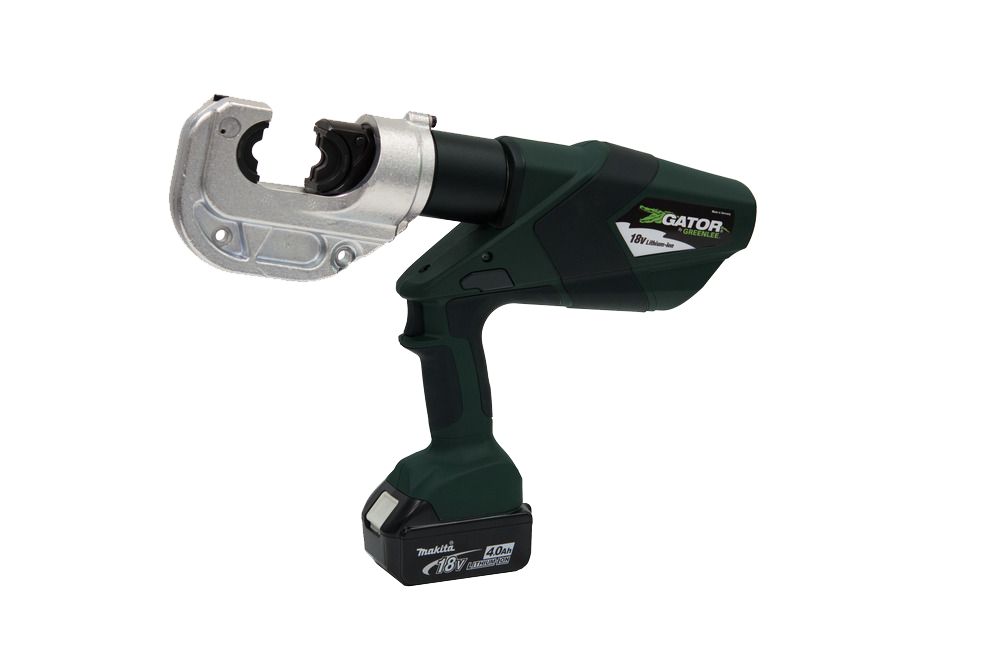

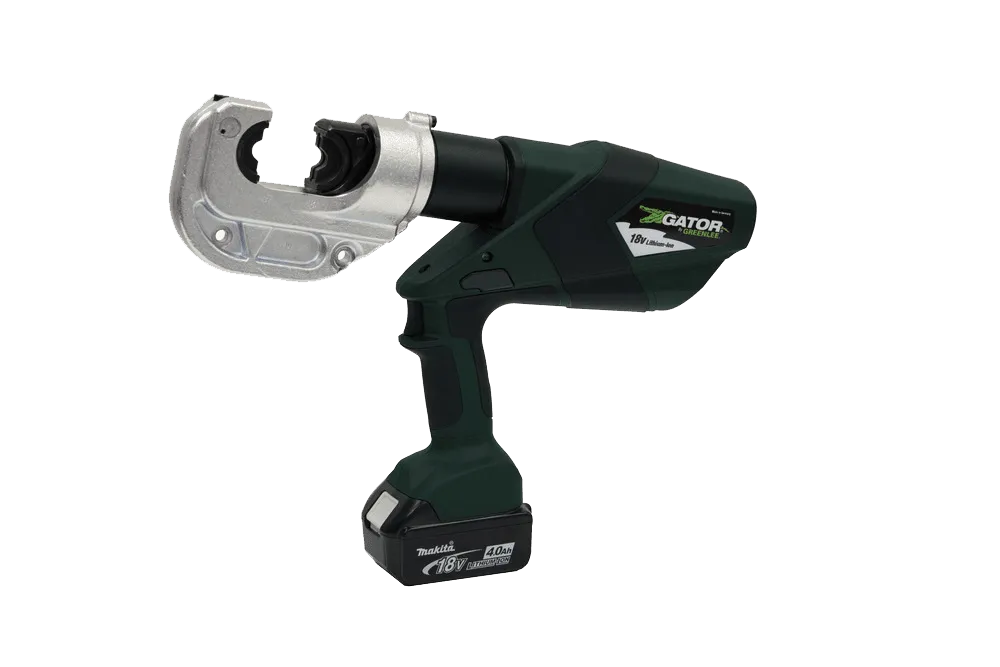

Greenlee 12 Ton Crimper

  • Equipped with Bluetooth™ Communication enabled via the Gator Eye app
  • Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • State of the art 18V lithium-ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • LED light provides the operator with the battery charge and tool maintenance status
  • In-Line tool style is lightweight and very easy to control
  • One trigger controls all tool functions
  • Crimping head rotates 350°
  • Tools automatically retract when the crimping cycle is complete
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • LED work light illuminates dark work areas
  • Greenlee battery-powered crimping tools now use bio-degradable oil
  • Smart chargers control the charging current, charging voltage, and battery temperature to maximize battery life
  • Used with Greenlee KC4, KA4, and KD4 crimping dies
  • Available with 120V, 12V, or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger

12 Ton Crimper Operators Manual

12 Ton Crimper Service Manual


Additional information

Weight 15 lbs
Dimensions 16.25 × 14 × 4 in

Die style crimper


12 Ton Crimping

Handle Type

Pistol Style with over-molded rubber grip


12 VDC, 120 VAC


C/US UL Listed

Wire Size

8 AWG – 750 Kcmil Cu & Al

Crimping Force

24,000 lbs. (106 kN)

Crimping Capacity

750 Kcmil (MCM) Cu & Al

Connector Type

Color-coded lugs and splices

Opening Size

1.65 IN (42 mm)
