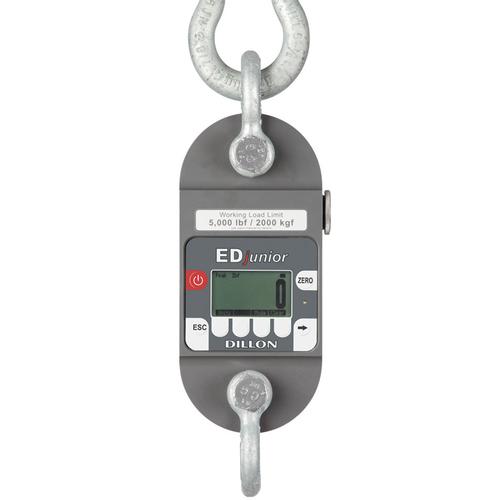

DILLON EDjunior Dynamometer

Item Number: N/A Categories: , , , ,

The EDjunior dynamometer gets straight to the point, apply a load – take a reading. Its Spartan design is a direct response to industries that have wanted an extremely well-built instrument that could be relied upon for simple, yet critical measurements of weight and force.

The EDjunior draws its strength from the exhaustive engineering that went into the design of the Dillon EDXtreme dynamometer. Both share the same base of research and testing to match material characteristics and load cell technology. The choices made in development have yielded an exceptionally rugged instrument capable of consistently delivering accurate, repeatable measurements.

The EDjunior is even more remarkable when you consider price. If you believe you have to pay more to get more – just compare the Dillon EDjunior to the competition. Nothing else comes close!

The EDjunior is all about value. Behind its simple design and easy operation, you will find the quality and performance not found elsewhere in the low price range. With the EDjunior, Dillon proves that economy can go hand-in-hand with accuracy, long service life and, most importantly, worker safety.

Contact us if you have any questions.


Be the first to review “DILLON EDjunior Dynamometer”

We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.

More Product Information

DILLON EDjunior Dynamometer

The EDjunior provides peak detection as well as sustained load readings. Selectable units of measure include lbf, kgf and Newtons.

  • Accuracy — The load element design and strain gauges chosen for the EDjunior produce an accuracy of 0.2 % (full scale). This level of precision offers flexibility for use in a broad range of applications.
  • Resolution — Readings are displayed with a resolution of 1 part in 1000 to ensure the level of el of readability required for critical lifting applications.


Control Interface – The exclusive Dillon SOFTKEY interface provides direct access to setup and display functions without the typical confusing menu structure. The 6-digit dot-matrix display features 1 inch (26 mm) high numerals for greater visibility

High Strength, Low Weight – Heavy, cumbersome tools make tough jobs even harder. Through the use of aircraft quality materials, Dillon has made the EDjunior an easy-to-position, highly mobile instrument with exceptional strength. It offers an impressive factor of safety at all capacities. Dillon’s distinctive curve-body design further eliminates unnecessary weight and streamlines the unit to help prevent binding.

Battery Operation – Power is supplied by two C-cell batteries that are easily accessible through a side-loading port. Battery replacement, however, is a rare event. With the EDjunior’s low power consumption, typical battery life is over 425 hours.

All Environments – With its NEMA4/IP55 design, the EDjunior is at home in virtually any environment and ideally-suited to exterior job-site applications as well as in-plant use.

Backlight – When in a low light area, turn on the configurable backlight to make readings highly visible.

Standard Accessories – Cases for secure transportation and storage of instruments and shackles.

Brochure download

Product Specifications
Weight 20 lbs
Shipping Dimensions 20 × 15 × 6 in



2,500 lbs, 5,000 lbs, 10,000 lbs, 25,000 lbs


As always, if you have any qustions about this tool, or stock quantities contact us by phone at: 877-860-5666
