Digital Voltage Indicator with Capacitive Test Point Mode Kit, 100V to 500kV, w/Overhead Hook Probes, Underground Bushing Probe, Proof Tester

Item_number: HDDVI-500T/K02 Categories: , , ,

The Greenlee DVI-500T/K02 (52074182) Digital Voltage Indicator with Capacitive Test Point Mode Kit, 100V to 500kV, Overhead Hook Probes, Underground Bushing Probe, and Proof Tester, is designed to be used on both transmission and distribution systems in overhead and underground applications. The DVI-500T indicates voltage from 0.1kV to 500kV and is auto-ranging;; it also features a capacitive test point mode, allowing it to be used in underground applications to indicate voltages on elbow test points.

The DVI-500T displays voltage on a large 1.45 in. LED display with a 3-digit readout. In addition, an audible alarm alerts the user to the presence of voltage above 100VAC.

The DVI-500T is very easy to use, since there are no range selector switches or settings to be made – simply contact the conductor and read the display. The DVI features an auto shut-off function and will turn off after 4 minutes of inactivity.

The DVI-500T/K02 Digital Voltage Indicator Kit includes two overhead probes: a large 6 in. overhead hook probe (HP-DVI-6) for transmission system use and a smaller 2 in. overhead hook probe (HP-DVI-2) for distribution system use. Simply attach the correct probe for the proper overhead application.

The DVI-500T/K02 kit also includes an underground probe (IEP-DVI-5) for underground or pad mount applications, or for any application up to 21kV line-to-ground where the DVI will be used in close proximity to grounded conductors or surfaces. Use of a hotstick (sold separately) is required for all overhead and underground applications.

The PT-DVI Proof Tester is also supplied with the DVI-500T/K02 Kit. The Proof Tester generates high voltage AC for testing the DVI. It should be used before and after each use to verify proper operation of the voltage indicator.

Contact us if you have any questions.

Item_number: HDDVI-500T/K02 Categories: , , ,

$1,852.48

Digital Voltage Indicator with Capacitive Test Point Mode Kit, 100V to 500kV, w/Overhead Hook Probes, Underground Bushing Probe, Proof Tester

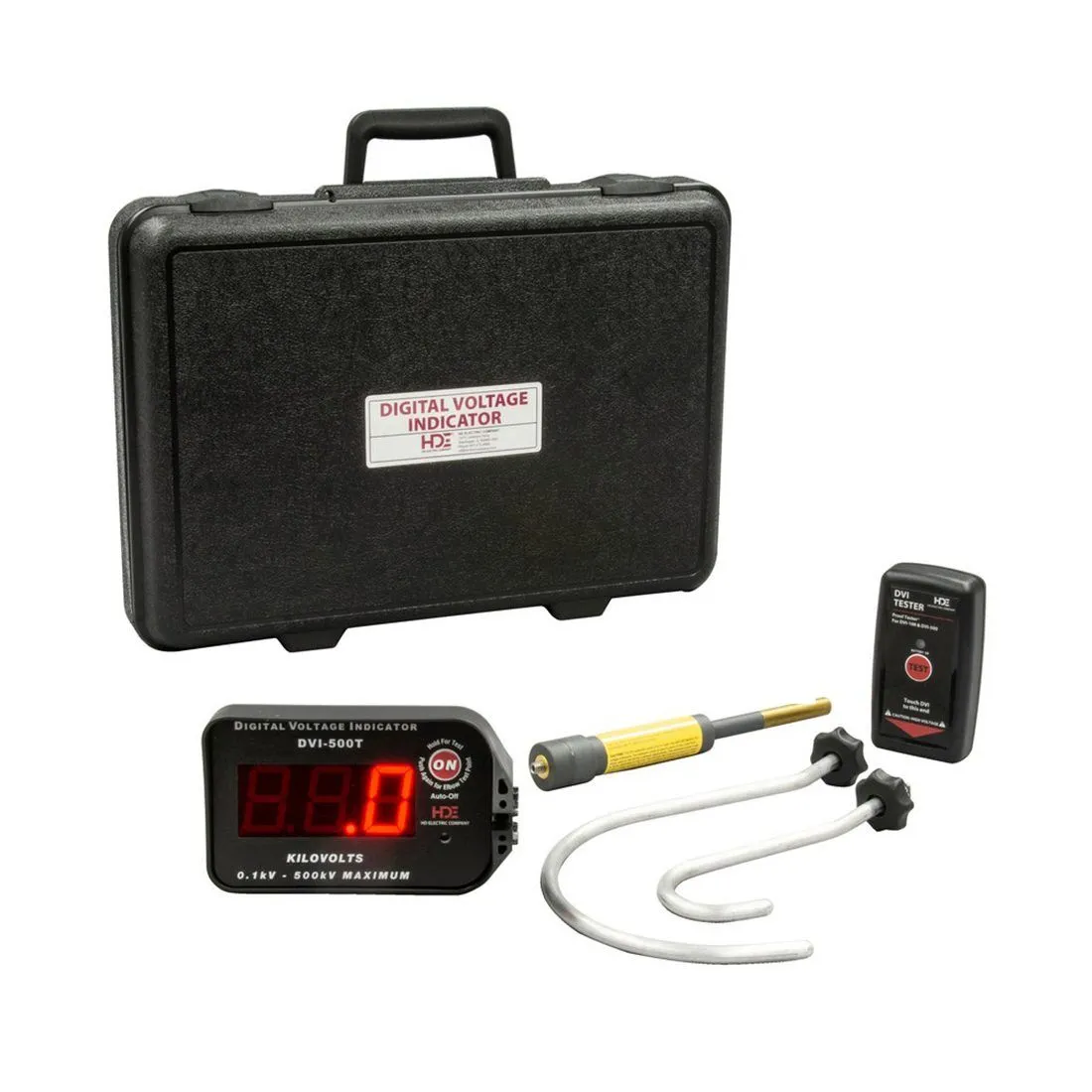

Included:

  • - DVI-500T Voltage Indicator
  • - Overhead Hook Probe, 2 in. Diameter Opening (HP-DVI-2)
  • - Overhead Hook Probe, 6 in. Diameter Opening (HP-DVI-6)
  • - Underground Bushing Probe, 15/25/35 kV Class (IEP-DVI-5)
  • - Proof-Tester Digital Voltage Indicator Tester (PT-DVI)
  • - Plastic Carrying Case (CS-DVI-5)

Features:

  • Measures voltage from 0.1kV to 500kV line-to-ground
  • Equipped with Capacitive Test Point mode for measuring elbow test points
  • Suitable for overhead and underground applications
  • Indicates voltage on large 3-digit LED display
  • Voltage readout distinguishes between nominal and induced voltages
  • Ideal for field use with compact, rugged and lightweight polycarbonate housing
  • Produces audible indication when voltage is detected
  • Auto-ranging with no range selector switch or settings required
  • Built-in universal spline for attaching standard hotstick (sold separately)
  • Auto-shutoff function and low battery indication
  • Powered by field-replaceable 9V lithium or alkaline battery
  • Included Proof-Tester Digital Voltage Indicator Tester generates high voltage AC for to confirm proper operation of unit
  • Supplied with overhead hook probes and underground bushing probe
  • Operating Voltage Range: 0.1 to 500 kV (0.1kV - 9.9kV and 10kV - 500kV)
  • Operating Frequency: 60Hz
  • Accuracy: Laboratory calibrated to +/- 3%; Typical overhead line in compact overhead three phase +/- 10%; Other applications up to +/- 25%

Data Sheet

Manual

Additional information

Weight 5 lbs
Dimensions 14 × 12 × 6 in
Brand

Greenlee, HDE Electric
