DCD Line Swivels

Item Number: N/A Categories: , , ,

DCD Line Swivels are typically constructed with a thrust bearing for tensile load and a radial bearing for bending load. They combine a high safe working load with a compact design. All sizes incorporate an oil seal and are manufactured from high strength stainless steel. our line swivels are designed for cable pulling or hauling in overhead and underground applications.

Contact us at Tallman for any questions you may have or for more information.

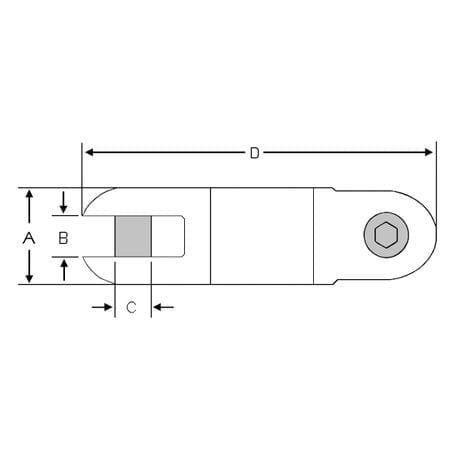

Item Number
Safe Working Load
A
B
C
D
Hex Key Size
Slotted Item Number
DC00505-010
2,250 lbs.
7/8"
3/8"
5/16"
3-3/8"
7/32"
DC00505-020
5.000 lbs.
1-1/4"
17/32"
13/32"
4-3/4"
1/4"
DC00505-025
7,000 lbs.
1-3/8"
9/16"
1/2"
5-1/8"
5/16"
DC00505-030
10,000 lbs.
1-5/8"
11/16"
5/8"
6"
3/8"
DC00505-035
15,000 lbs.
2"
25/32"
11/16"
7"
3/8"
DC00505-040
25,000 lbs.
2-3/8"
1-1/32"
7/8"
10-5/16"
3/8"

Reviews

Be the first to review “DCD Line Swivels”

We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.

Product Specifications
Weight 18 lbs
Shipping Dimensions 16 × 5 × 5 in
3:1 Safe Working Load

2,250 lbs., 5,000 lbs., 7,000 lbs., 10,000 lbs., 15,000 lbs., 25,000 lbs., 50,000 lbs.

Brand

DCD

More Product Information

DCD Line Swivels

DCD Line Swivels are typically constructed with a thrust bearing for tensile load and a radial bearing for bending load. They combine a high safe working load with a compact design. All sizes incorporate an oil seal and are manufactured from high-strength stainless steel.

DCD Locking Line Swivels are typically constructed with a bronze thrust bearing for tensile load and a radial bearing for bending load. The bronze bearing will rotate up to a portion of the safe working load before locking. Once past this point, rotation will only occur when pulling tension is relieved.

Sizes 00505-020 and larger are supplied with a grease point for lubrication. This is particularly useful in overhead applications where high-speed rotation is possible.

All sizes of both types are pull tested to verify the 3:1 safety factor. Test certificates are available upon request. Visit our website for articles with more information on 3:1 and 5:1 Safe Working Loads.

Sizes 00505-025 and larger are supplied with hexagon clevis pins. Smaller sizes have slotted clevis pins.

Under no circumstances should alternate clevis pins be used.

Permanent peen marking is now standard on all line swivels and material traceability for all batches produced.
