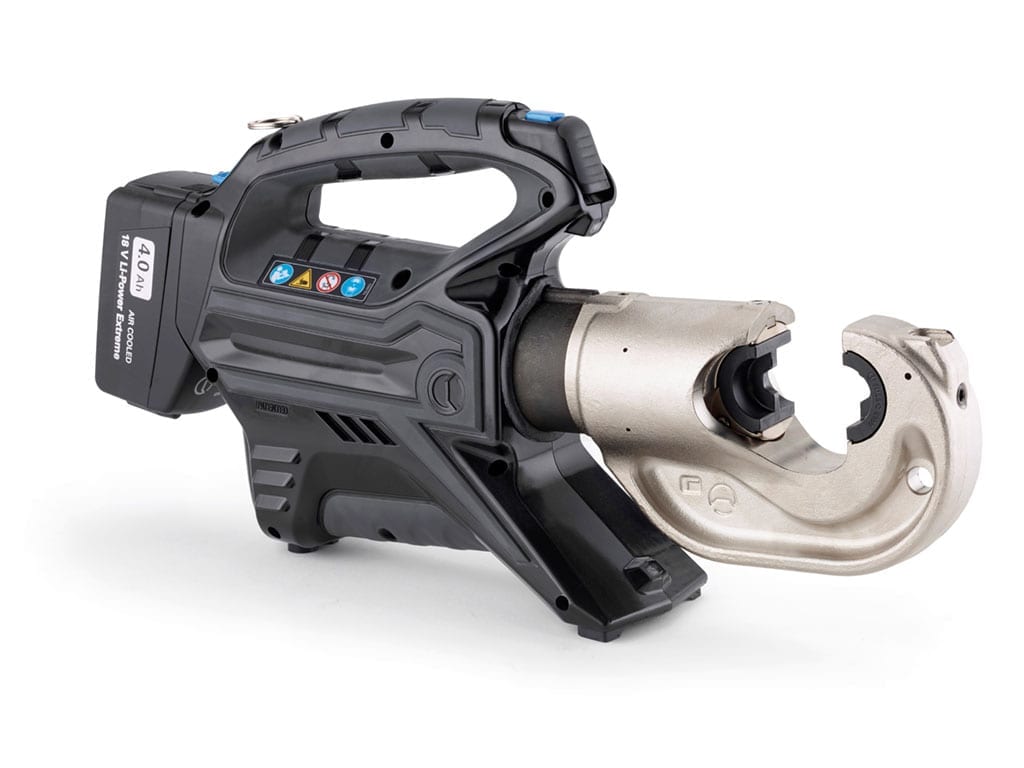

Cembre 18V CORDLESS HYDRAULIC CRIMPING TOOL

Cembre cordless hydraulic tools represent a significantly advantageous evolution from current models. Born of the renowned B131LN-CA type crimping tool, B1300L-CA will accept all semi-circular slotted dies, common to most 12 ton tools (U dies). Featuring a large 1.65 in. jaw opening, for an easier introduction/removal of large size compression terminations and joints.

Contact us if you have any questions.



$4,494.67

Cembre 18V CORDLESS HYDRAULIC CRIMPING TOOL

New Li-Ion 18 V 4 Ah batteries offer a higher capacity than 14.4 V 3 Ah, while greater crimping speed and crimping force result from a revitalized hydraulic system with double speed action: a rapid approach of the dies to the connector then a slower, more powerful speed for crimping. A maximum pressure sensor and pressure relief valve assure greater precision and repeatability of the pressure cycle and double the provision for operator safety.

The OLED display provides essential real-time tool operating information data including:

  • Crimping pressure and force being generated, for confirmation of adherence to norms and best practice
  • Battery power availability
  • Tool identification, LED work light state, reset, no. of operational and service crimping cycles
  • Tool service required to maintain optimum condition.

Designed with improved balance, B1300L-CA is easily manageable during the crimping process and, by the use of bi-component plastics, has a shell with high resistance to wear and damage. Rubber grip inserts, low noise, and minimal vibration aid operator comfort while additional convenience and safety are provided by LED lighting of the working area. Crimping cycle data (up to 200,000 events) is automatically stored on a memory card for transfer to PC by USB interface.

Operating temperature: +5 to +122°F

Cembre B1300L-CA Operation and Maintenance Manual

Additional information

Weight 17.6 lbs
Dimensions 18.54 × 9.41 × 4.04 in
