Buckingham Double Sheave Buckrigger™

The advantage of the BuckRigger™ pulleys by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device.

Contact us if you have any questions.

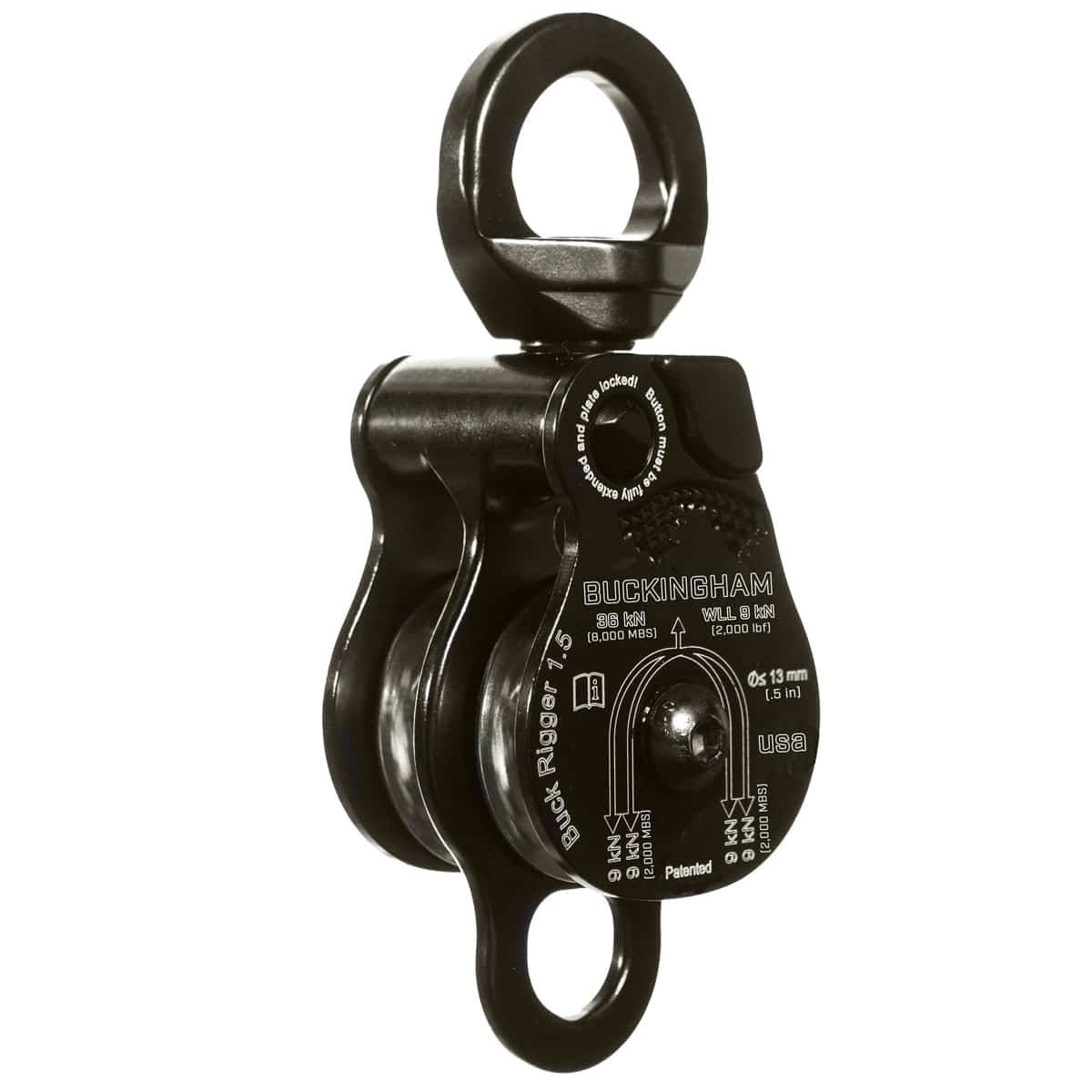

Buckingham Double Sheave Buckrigger™

When configured with optional pulleys, the OX BLOCK™ can be used to create a 4:1, 5:1, or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads. The double sheave pulley with swivel eye features a 1/2″ rope capacity and a WLL of 2000 lbf.


Additional information

Weight 1 lbs
Dimensions 8 × 4 × 3 in


Pulley Size:

1.5″ (38mm)

Max Rope Diameter:

1/2″ (13mm)

Breaking Strength:

8000 lbf (36Kn)

Weight Rating:

WLL – 2000 lbf (8Kn)
