Buckingham Ox Block
$ 602.42
The Buckingham Ox Block is a rope snatchblock with an integrated friction bar used for:
- Hurtman/self-rescue
- Lowering
- Raising
- Snubbing loads.
Product Description

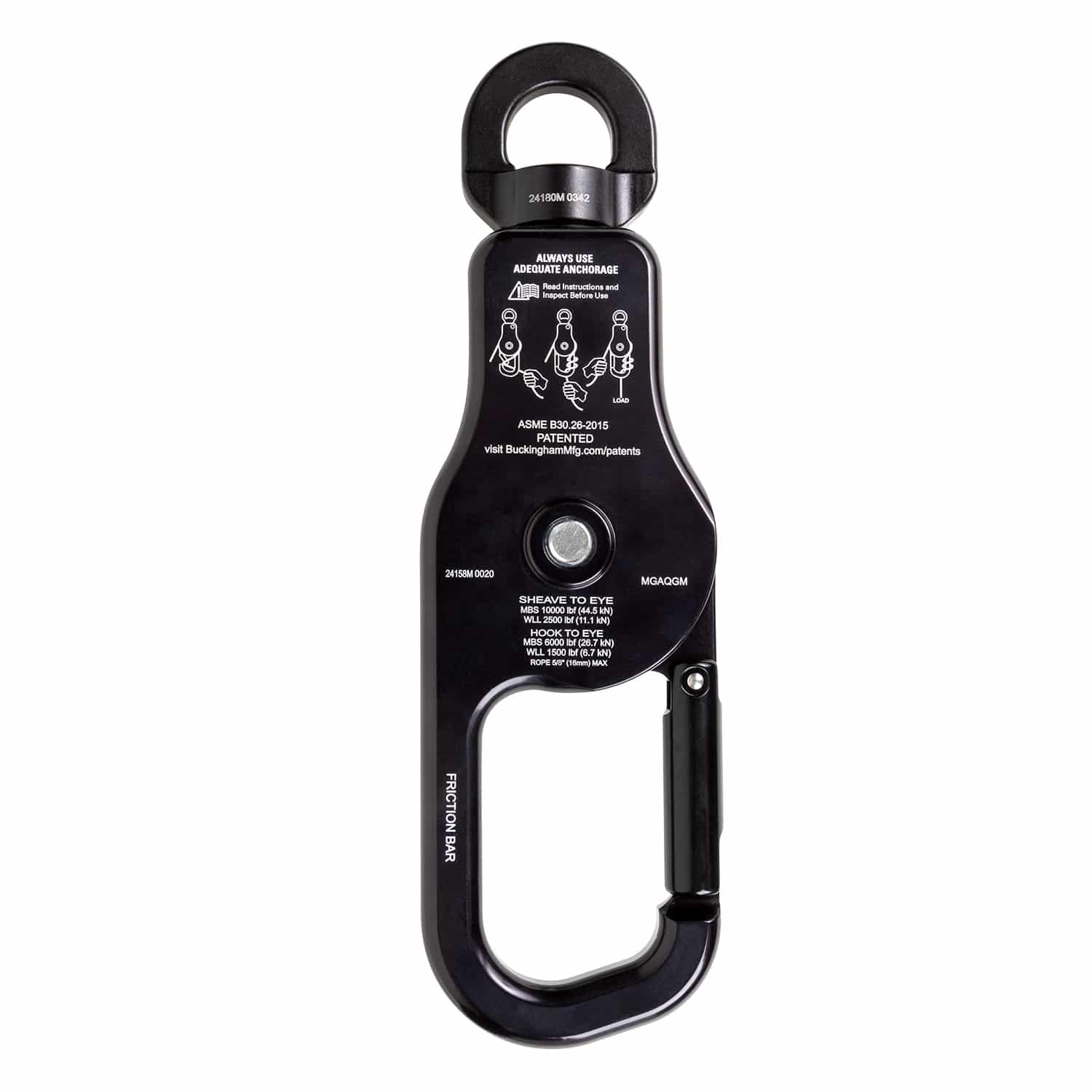

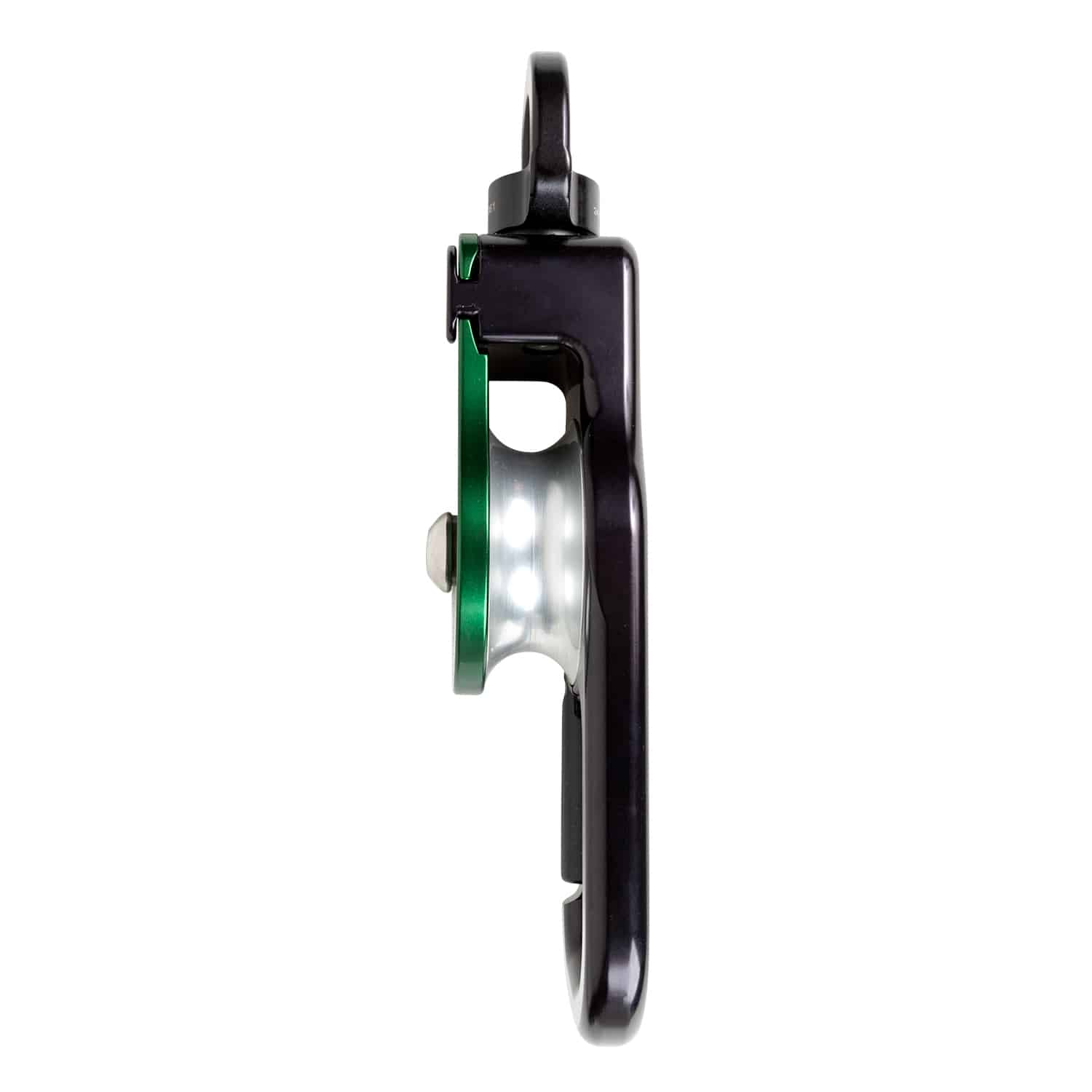

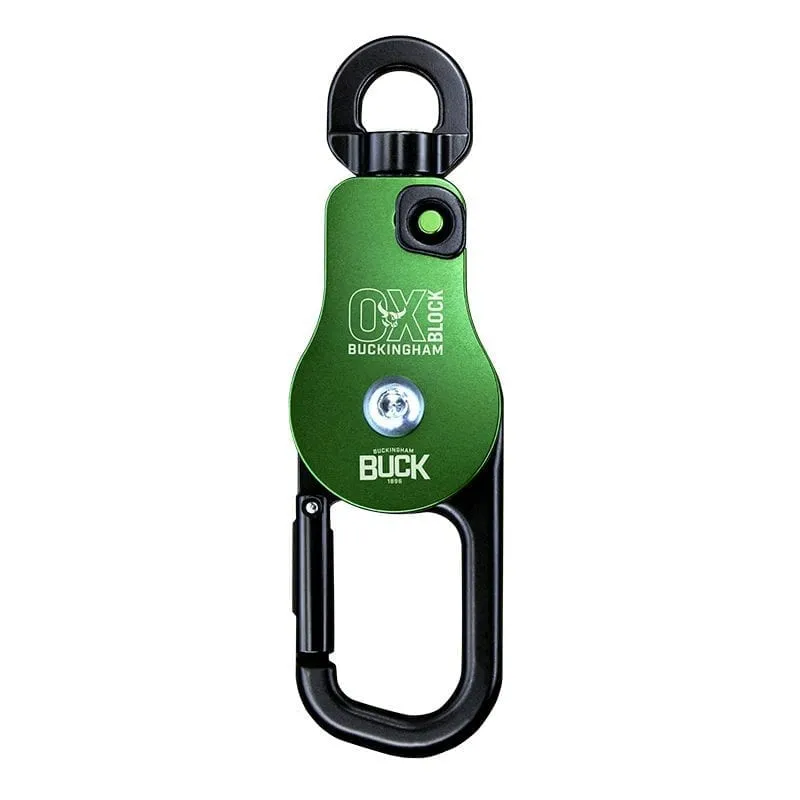

Buckingham Ox Block
It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK®.
- The patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks.
- Has greater WLLs than blocks of similar size.
- When configured with optional pulleys, the OX BLOCK® can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads.
- The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device.
- ASME B30 Compliant
Product Specifications
| Weight | 2.15 lbs |
|---|---|
| Shipping Dimensions | 10.5 × 2 × 3 in |
| Gate Opening Capacity: | 1.5″ |
| Material: | Lightweight Aluminum |
| HOOK TO EYE: MBS: | 6,000 lbs |
| HOOK TO EYE:WLL: | 1,500 lbf |
| SHEAVE TO EYE:MBS: | 10,000 lbs |
| SHEAVE TO EYE:WLL: | 2,500 lbf |
| Brand | Buck |
| Sheave Diameter | 3" |
