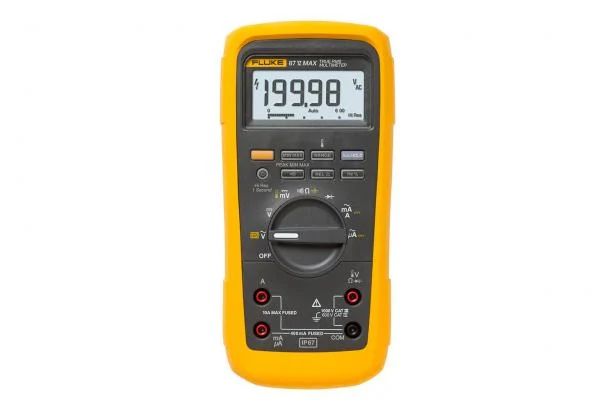

FLUKE 87V MAX True-rms Digital Multimeter
$559.54 – $759.99
The 87V MAX contains all the trusted features of the most popular digital multimeter used today, the Fluke 87V, and then some. From wet, dusty or dark environments to long days, the 87V MAX was designed to help you finish the most on a work site. It features a unique function for accurate voltage and frequency measurements on variable frequency motor drives (VFDs) and other electrically noisy equipment; using true-rms ac voltage and current for accurate measurements on non-linear signals.
Contact us if you have any questions.
You must be logged in to post a review.
We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.
Product Specifications
| Weight | 1.5 lbs |
|---|---|
| Shipping Dimensions | 8.5 × 4 × 2.5 in |
| Brand | Fluke |
| DC Voltage | Range: 0.1 mV to 1000 V |
| AC Voltage | Range: 0.1 mV to 1000 V |
| DC Current | Range: 0.1 μA to 10 A (20 A for 30 seconds maximum) |
| AC Current | Range: 0.1 μA to 10 A (20 A for 30 seconds maximum) |
| Resistance | Range: 0.1 Ω to 50 MΩ |
| Capacitance | Range: 0.01 nF to 9999 μF |
| Frequency | Range: 0.5 Hz to 199.99 kHz |
| Duty Cycle | Maximum Duty Cycle: 99.9% |
| Temperature Measurement Range | –200.0 °C to 1090 °C |
| 80 BK temperature probe | –40.0 °C to 260 °C, ± 2.2 °C or 2% whichever is greater |
| Conductance | Maximum Conductance: 60.00 nS |
| Diode Test | Range: 2 V |
| Diagnostics and data storage | Peak Min/Max: 250 μS |
| Display | Digital: 6000 counts updates 4/second |
| Low Pass Filter | Yes |
| Input Alert | Yes |
| Safety Rating | IEC61010-1: Pollution Degree 2 |
| Agency Approvals | CE, CSA |
| IP Rating | IEC 60529: IP67 |
| Power | Three AA batteries. 800 hours typical, without backlight |
More Product Information
FLUKE 87V MAX True-rms Digital Multimeter
- Withstands drops up to 4-meters (13 feet) with industrial strength casing and holster
- Waterproof, dustproof IP67 case for the most extreme work sites

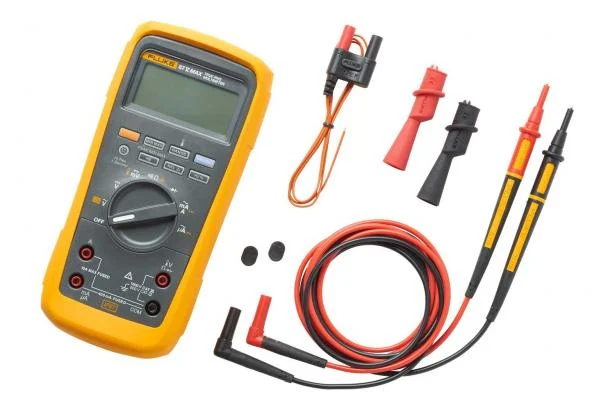

- Premium TL175 TwistGuard™ test leads
- Double the battery life of the 87V (up to 800 hours); backlit keys for dark environments
Fluke’s most rugged digital multimeter
The 87V MAX is built with an IP67 rated, industrial-strength case and a removable holster. The holster doubles as a test probe holder for easier, one-handed operation. This meter is fully waterproof and dust proof keep working reliably no matter where your job takes you.
4-meter Drop tested
- Industrial-strength is no joke, the meter is designed to survive drops up to 4-meters (13 feet).
Withstands hot and cold environments
- Rely on accurate measurements with the extended operating temperature range of -40 °C (for up to 20 minutes) to +55 °C.
Easy-to-read measurements
The large display digits and 2-level bright, white backlight and backlit keypad buttons make for increased visibility. Along with the high resolution 19,999 count display mode allows you to read measurements easily in any work environment. This multimeter will run for up to 800 hours of battery life and offers measurement capabilities
- up to 1000 V ac and dc and up to 10 A (20 A for 30 seconds),
- frequency to 200 kHz
- min/max/average recording, plus 250 μs Peak min-max to capture variations automatically or
- use the built-in thermometer.
