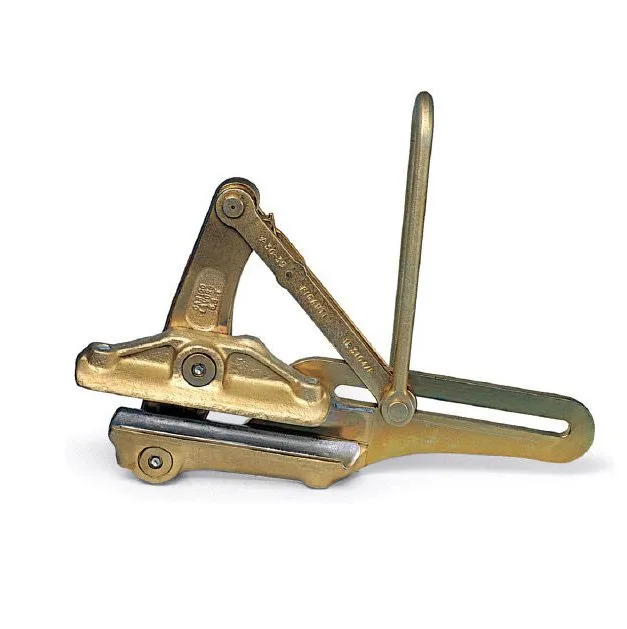

Self-Gripping Clamp, IR 3104-S

Item_number: PC3104-S Categories: , ,

Automatic self-gripping clamp

Suitable for aluminum, A.C.S.R., steel earthwire, anti-twisting rope and copper conductors. Made of high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated with a complete range of interchangeable liners.

Contact us if you have any questions.

Item_number: PC3104-S Categories: , ,

$885.00

Self-Gripping Clamp, IR 3104-S

Requires liners. The liners are available in aluminum for aluminum or aluminum/steel conductors and bronze for copper conductors, steel anti-twisting rope and steel earth wire from Ø 10 mm to 45 mm.

Specifications

Maximum safety load 117 kN
Minimum breaking load 310 kN
Weight 17 kg

Additional information

Weight 37.5 lbs
Dimensions 33.5 × 6 × 12 in
Max Safe Load

26,000 lbs

Minimum Breaking Load

69,000 lbs
