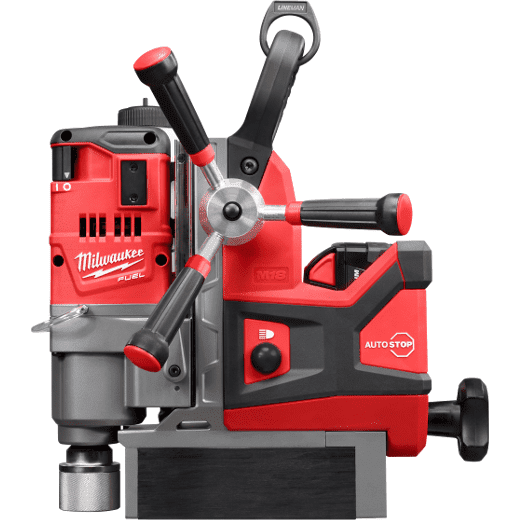

The Milwaukee M18 FUEL™ 1-1/2” Magnetic Drill drills faster than the number one corded competitor, delivers the strongest magnetic hold on 1/4” steel providing a safer drilling environment in this material, and drills up to (66) 13/16” holes per charge. The M18 FUEL™ 1-1/2” Magnetic Drill delivers safer drilling on ¼” steel by providing the industry’s strongest holding force on this material. By utilizing permanent magnets, the magnetic base operates without electricity; ensuring that the magnet does not deactivate if the battery is drained. Equipped with Auto-Stop lift-off detection, the power to the motor is automatically cut if excess rotational motion is detected while drilling.

Powered by a Milwaukee POWERSTATE™ Brushless Motor, both drills are faster than their corded counterparts and deliver the same 1-1/2” annular cutter capacity. REDLINK PLUS™ Intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 Battery Pack provides 50% more power and runs 50% cooler than standard XC battery packs.

This drill maintains full power and runs substantially cooler through heavy applications, allowing users to push their cordless tools harder and longer than ever before. The M18™ REDLITHIUM™ HIGH OUTPUT™ XC8.0 Battery is fully compatible with 200+ M18™ tools.

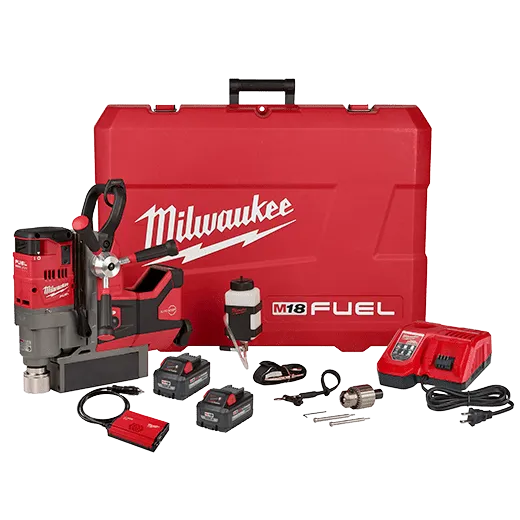

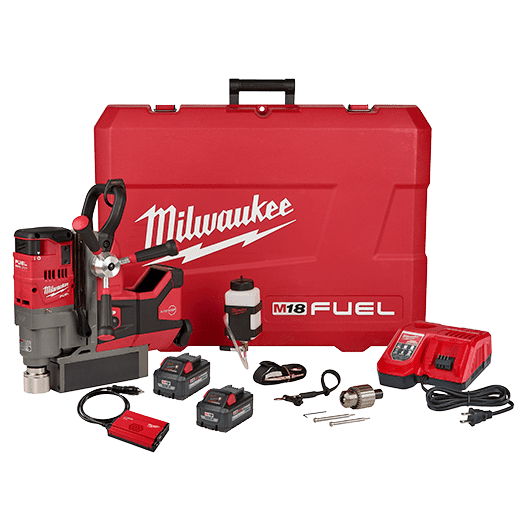

(1) M18 FUEL™ 1-1/2″ Lineman Magnetic Drill
(2) M18™ REDLITHIUM HIGH OUTPUT™ XC8.0 Battery (48-11-1880)
(1) Safety Strap
(1) Magnetic Lubrication Tank
(1) Chuck Key
(1) Carrying Case
(1) AC/DC Vehicle Charger
(1) 3/4” Weldon to ½” Chuck adapter
(2) 1” retractable pilot pin
Contact us if you have any questions.

Add To Cart For Price

Milwaukee 1-1/2" Lineman Magnetic Drill HD Features

  • POWERSTATE™ Brushless Motor: Delivers maximum power and provides up to 2x longer motor life.
  • REDLINK PLUS™ Intelligence Provides optimized performance and overload protection using total system communication between tool, battery, and charger.
  • Self-Powered Magnet Base Operates Independently of Power Source and Delivers up to 2,000 lbs. of Holding Force
  • 1-1/2" Annular Cutter Capacity 1/2" Twist Bit Capacity
  • 2 Speed Gear Box: 400/690 RPM
  • Stroke Length: 5-3/4"
  • Motor Head Adjustment: 5-1/8"

Download Operators Manual

Download Service Parts List


Additional information

Weight 60 lbs
Dimensions 33 × 11 × 25 in
