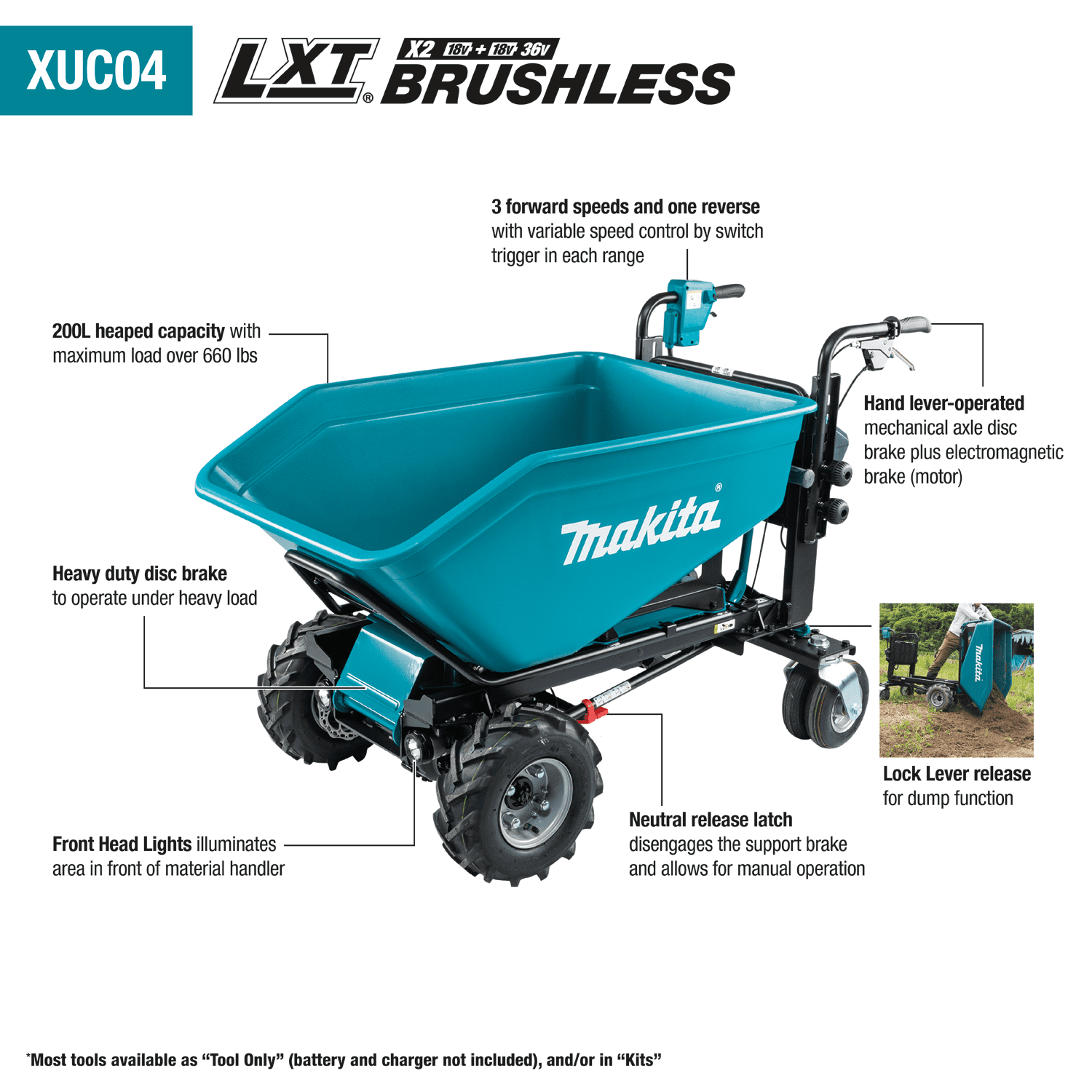

MAKITA 36V (18V X2) LXT® Brushless Material Handler, Dump Bucket, Tool Only

$7,066.67

Available on backorder

The 36V (18V X2) LXT® Brushless Material Handler with Dump Bucket, Tool Only (XUC04Z) is an ideal solution for transporting materials on job sites and other settings. The XUC04Z delivers up to 100 minutes of run time (distance equivalent to 4.5 miles) under load using four 18V LXT® 6.0Ah batteries (batteries sold separately).

The Material Handler features three forward speeds and one reverse with variable speed controlled by a switch trigger in each range. The maximum load capacity is 660 lbs with a bucket capacity of over 200 liters.

The XUC04Z is engineered to operate using two 18V batteries at a time, with the ability to utilize additional onboard batteries for longer run times. The XUC04Z features a warning beep that will go off if the unit is overloaded either on a slope or flat ground. It also beeps when in-use batteries are running low as a reminder to the user to cycle through the other set of batteries.

Convenience features include a hand lever-operated mechanical axle disc brake plus an electromagnetic brake that prevents the Material Handler from rolling forward or backward when the throttle is not engaged. There are headlights, a taillight, and a level gauge for more convenience. It also features handles that adjust to three separate heights to accommodate multiple users, and the handles feature rubberized soft grips that provide increased comfort on the job.

The Material Handler features Extreme Protection Technology (XPT™) which is engineered to provide increased dust and water resistance in harsh job site conditions.

It’s part of Makita’s expanding 18V LXT System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries. Makita® 18V LXT® Lithium-Ion Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.

Contact us if you have any questions.

Available on backorder

100% Secure Payments

Reviews

Be the first to review “MAKITA 36V (18V X2) LXT® Brushless Material Handler, Dump Bucket, Tool Only”

We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.

Product Specifications
Weight 398 lbs
Shipping Dimensions 60 × 30 × 34 in
Brand

Makita

Speed Forward

3.1 / .93 MPH

Speed Reverse

.62 MPH

Max. Load Capacity

661 lbs

Max. Grade

12°

Battery

36V LXT® Lithium-Ion

Dimensions

57" x 28-3/4" x 32-1/4"

Net Weight

273 lbs

More Product Information

MAKITA 36V (18V X2) LXT® Brushless Material Handler, Dump Bucket, Tool Only

  • RUN TIME : Delivers up to 100 minutes of run time using four 18V LXT® 6.0Ah batteries (battery not included)
  • INNOVATION : Holds (4) 18V LXT® Lithium-Ion batteries, operates using (2) at a time (batteries not included)
  • POWER : 200L heaped capacity with maximum load over 660 lbs
  • CONVENIENCE : 3 forward speeds and one reverse with variable speed control by switch trigger in each range
  • INCLUDES : Frame with motor, wheels, tires, and dump bucket
  • Delivers up to 100 minutes of run time (distance equivalent to 4.5 miles) under load using four 18V LXT® 6.0Ah BL1860 battery (battery not included)
  • Holds (4) 18V LXT® Lithium-Ion batteries but operates using (2) 18V batteries at a time; utilizes additional batteries when needed (batteries not included)
  • 3 forward speeds and one reverse with variable speed control by switch trigger in each range
  • 200L heaped capacity with maximum load over 660 lbs
  • Hand lever-operated mechanical axle disc brake plus electromagnetic brake (motor)
  • Headlights, taillight, warning beeper and level gauge for more convenience
  • Rubberized soft grip handles provide increased comfort on the job; adjust to 3 heights
  • Makita-built brushless motor for optimal performance
  • Features Extreme Protection Technology (XPT™) which is engineered to provide increased dust and water resistance in harsh job site conditions
  • 3-year limited warranty
