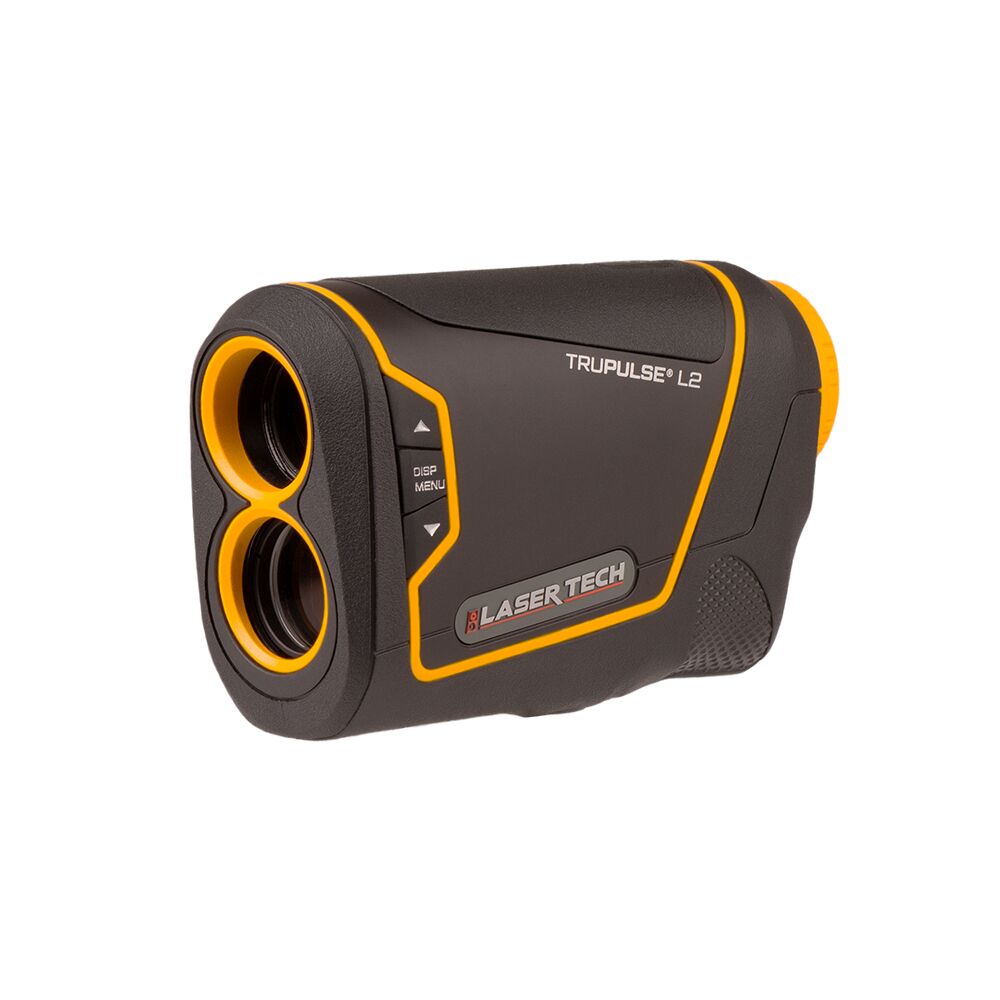

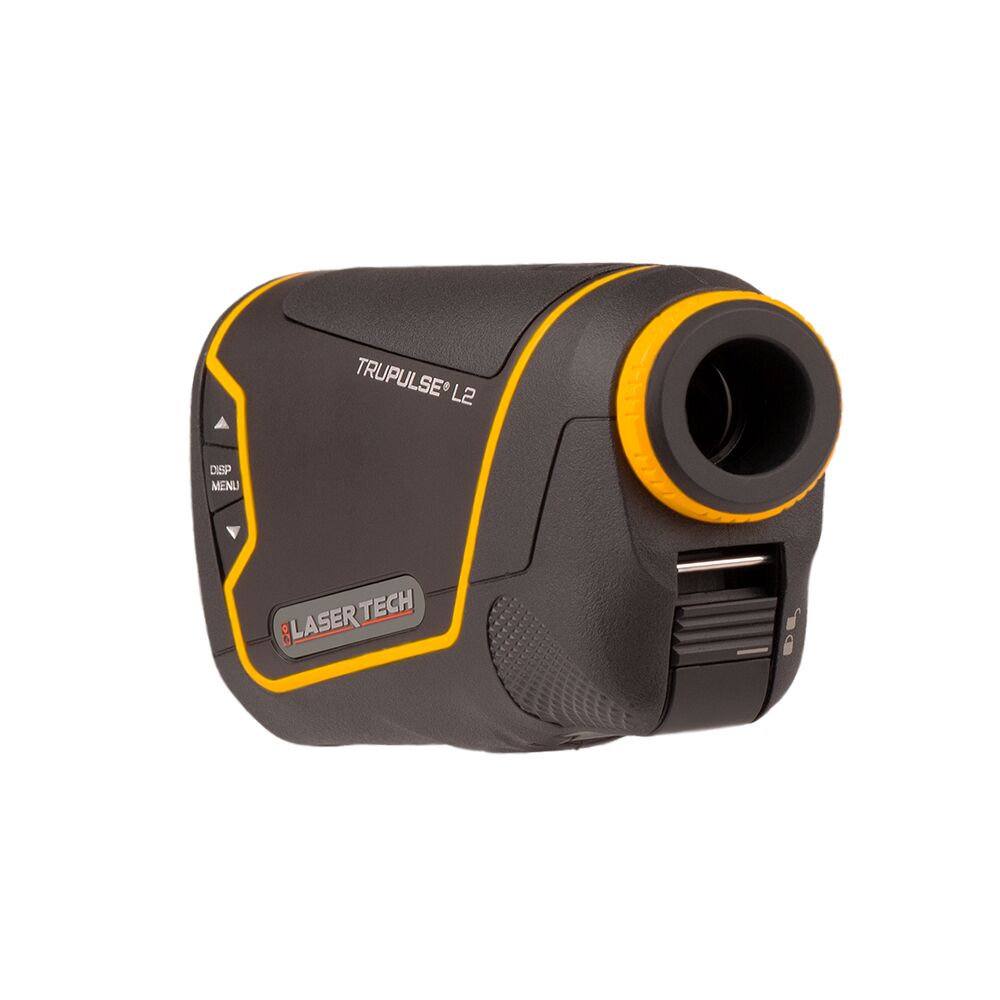

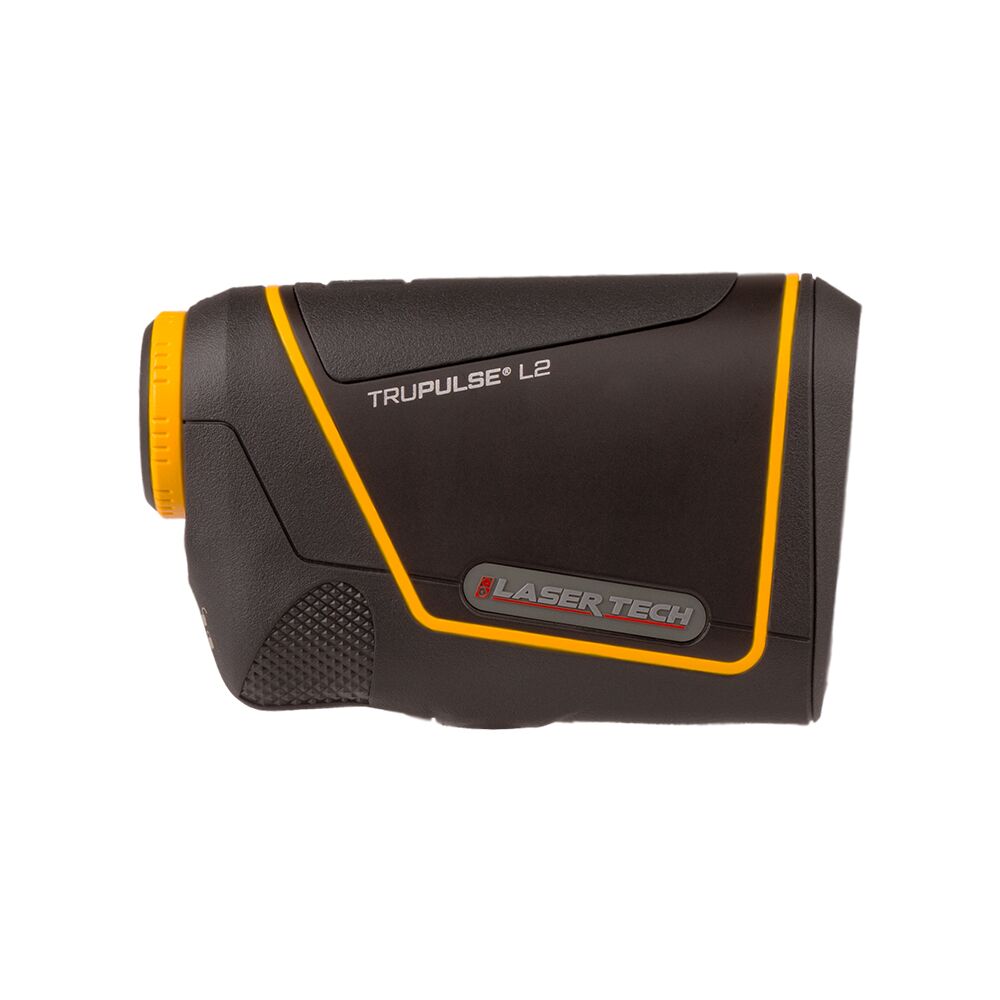

LASER TECH TruPulse L2 Laser Rangefinder

Item Number: LZ7005860 Categories: , , , Tag:

$828.12

Available on backorder

The Laser Tech TruPulse L2 Laser Rangefinder measures much more than just range. Measure slope distance and inclination angle and calculate horizontal distance, vertical distance, height, and 2D vertical missing line values. This laser rangefinder is more accurate and provides calculations not found on recreational rangefinders enabling professional results. Take advantage of Laser Tech’s four Advanced Targeting Modes (Closest, Farthest, Continuous and Filter) and TruTargeting technology so you know exactly what accuracy level is being achieved.

Contact us if you have any questions.

Available on backorder

100% Secure Payments

Reviews

Be the first to review “LASER TECH TruPulse L2 Laser Rangefinder”

We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.

Product Specifications
Weight 2 lbs
Shipping Dimensions 4.5 × 4 × 2 in
Distance Accuracy

± 0.5 m (1.6 ft)

Inclination Accuracy

± 0.5° Relative

Scope Magnification

5x

Battery Type (10 hrs. continuous use)

CR2

Temperature

-5° to 60° C (23° to 140° F)

Environmental

IP54

More Product Information

LASER TECH TruPulse L2 Laser Rangefinder

Features:

  • Measurement : Provides measurement capability with distance & inclination values.
  • TruTargeting : Faster acquisition and greater accuracy mean confidence, efficiency, and safety. Physical, visual, and audible feedback confirm target acquisition.
  • Targeting Mode : Advanced targeting modes (Closest, Farthest, Continuous, and Filter).
  • Ergonomics : Easy to hold, lightweight, rubberized grips, tactile button feedback.
  • Rugged : Withstands harsh conditions with rugged, waterproof housing. Holds up to everyday uses under any conditions and is completely dust and waterproof.
  • On Board Calculations : Auto calculates horizontal distance, vertical distance, height, and 2D missing line values.
  • UI / Display : Icon-driven display with 100% automatic brightness adjustments.
  • User Experience : 5 Intuitive User Interface and workflows.

Specifications:

  • Distance Accuracy to Typical Targets : +/- 0.5m (1.6 ft)
  • Distance Accuracy to Weak Targets : ± 1 m (3 ft)
  • Max Range to Reflective Targets : 2195 m (7200 ft) (2400 yds)
  • Max Range to Non-Reflective Targets : 1200 m (3900 ft) Typical
  • Minimum Range : 5 m (16 ft)
  • Target Acquisition : 0.5 Seconds
  • Inclination Accuracy : +/- 0.5 degrees relative, +/- 1.0 Degree, +/- 30 degrees tilt
  • Inclination Limits : +/- 90 degrees
  • Range Display Resolution : High Accuracy: .1 m (0.5 ft), Low Accuracy: ± 1 m (3 ft)
  • Inclination Resolution : 0.5 degree, 0.5% Slope
  • Scope Magnification / In-Scope Display Type : Optics: 5X magnification; PDLC Display, AUTOMATIC BRIGHTNESS DISPLAY, Display Color: Black/Red
  • Battery Type (8 hrs. of continuous use) : One CR2; 10hrs continuous use
  • Waterproof / Environmental : Environmental Rating IP67: Water & Dust Proof
  • Temperature : Operational temperature -5 to 60 ? (23 to 140 degrees F); Storage -25 to 60 degrees C (-13 to 140 degrees F)
  • Shock Resistance : Drop test 4ft to 3″ sand
  • Vibration resistance : JIS A
  • Size : height 75 mm, width 47 mm, length 110 mm
  • Weight : 227 gram (8 oz)
  • Regulatory Certifications : FDA; FCC; CE; IEC; ROHS; REACH, WEEE
  • Eye Safety : FDA CLASS 1 LASER PRODUCT: Product complies with IEC60825-1 Ed. 3:2014-5 and 21CFR1040.10/11 per Notice 50:2007
  • Warranty : 2 year
