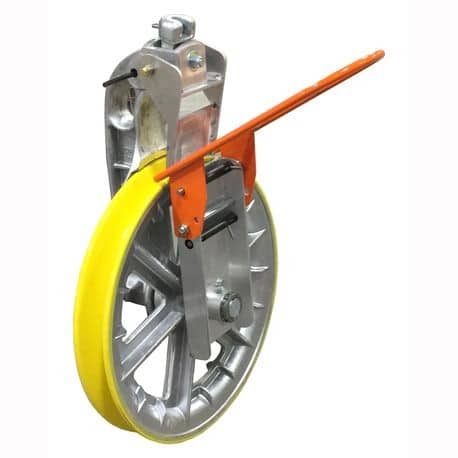

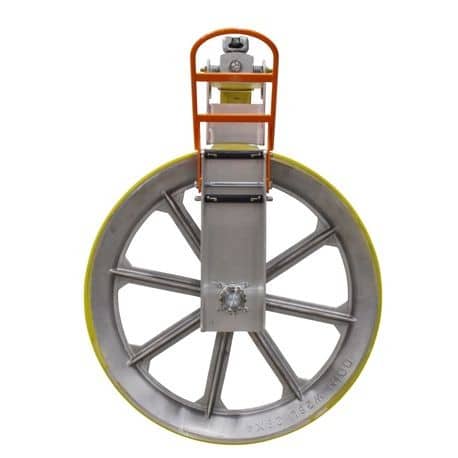

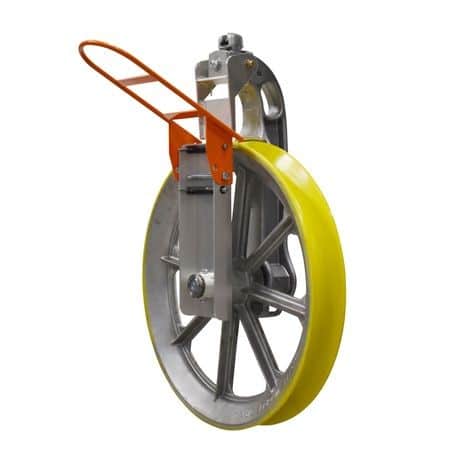

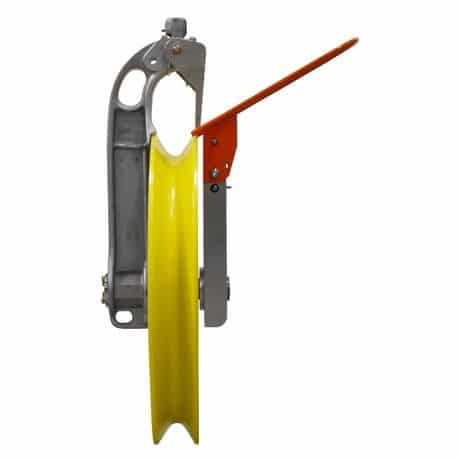

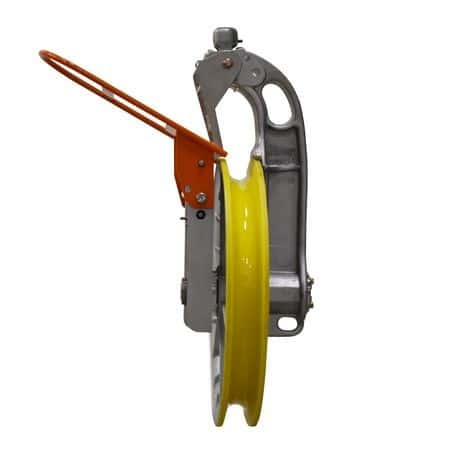

DDIN Helicopter Blocks
DDIN Helicopter Blocks are ideal for stringing multiple sizes of single overhead conductors where the pilot line will be flown in. A unique feature of these blocks is the exclusive “Snap Lock” fold-away helicopter arm, which eliminates the need for removing pins to deploy or retract the fly arm.
Contact us if you have any questions
DNSB16UH
DNSB22UH
DNSB28UH
Sheave Diameter (A):
16"
22"
28"
Throat Width (B):
2-1/2"
2-1/2"
2-1/2"
Throat Depth (C):
5-1/4"
7-1/2"
7-1/2"
Overall Length (D):
26-1/2"
32-1/2"
39"
Max Sheeve Width (E):
1-3/8"
2"
2-3/8"
Working Load Limit (WLL)
12,000 lbs.
12,000 lbs.
12,000 lbs.
Weight:
48 lbs.
62.5 lbs.
73.5 lbs.
DDIN Helicopter Blocks
- Smooth and consistent operation
- “Snap Lock” fold away helicopter arm
- Spring-loaded side gate
- Constructed of aluminum alloy, lightweight and durable
- Anti-Friction Bearings packed with synthetic aviation grease
Product FlyerAdditional information
| Weight | 74 lbs |
|---|---|
| Dimensions | 39 × 20 × 39 in |
| Sheave Size | 16", 22", 28" |
| Block Type | Helicopter |
| Brand | DDIN |
| Job Type | Distribution |
| Sheave Type | Urethane Lined |
| Sheave Width | Standard |
