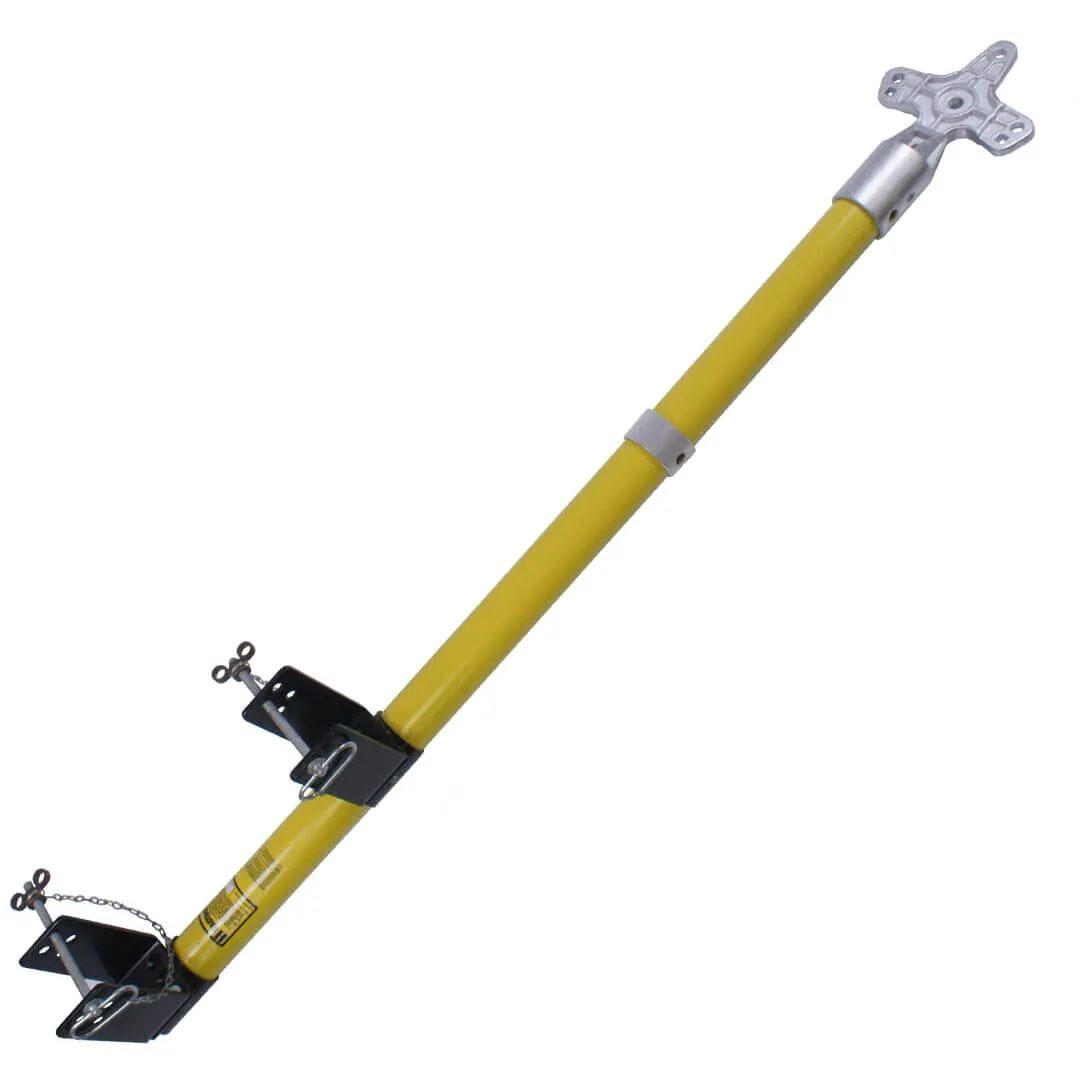

HASTINGS DEAD END ARM

The Hastings Temporary Dead-End Arm enables a line crew to spread conductors off an existing dead-end arm to gain working clearance to replace and terminate new conductors.

Contact us if you have any questions.

$761.00

HASTINGS DEAD END ARM

Features:

  • Arms are constructed with a 3" diameter fiberglass and foam core to meet most load requirements for temporary dead ends.
  • Load limit - 500 lbs. per position or 1,000 lbs. total load limit.
  • Arms have two holes with 18" spacing to accommodate 5/8" diameter hardware bolts for dead ends. Two aluminum sleeves are installed to prevent wear and tear on the fiberglass arm.
  • Steel mounting brackets have multiple holes for adjustment to fit various arm sizes.
  • Arms can be installed on either the top or bottom of existing cross arms.

Additional information

Weight 38.5 lbs
Dimensions 75 × 12 × 12 in
Dimensions

Height: 4 5/8", 4 7/8", 5 7/8", 6 1/8"
Width: 3 7/8", 5", 6 1/8"
