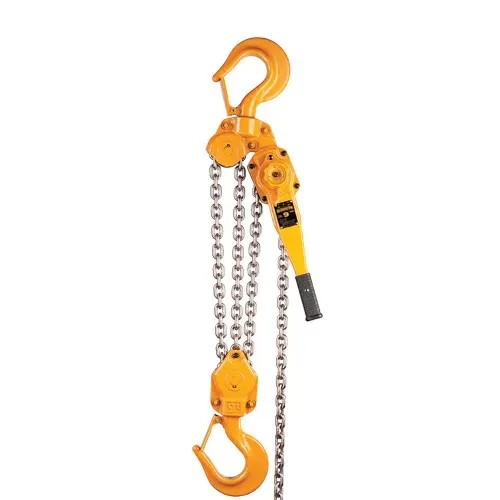

HARRINGTON LB Heavy Duty Lever Hoists, 9 Ton Triple Chain

$1,926.05$2,320.34

The Harrington LB lever hoist forged an entirely new, industry-leading benchmark by being smaller, lighter, and stronger than any other lever hoist on the market. This hoist can be used horizontally, vertically, inverted or at any other load angle and its proven strength and durability stand up in an endless array of applications.

  • Failsafe freewheel system
  • Patented hardening process

Reviews

Be the first to review “HARRINGTON LB Heavy Duty Lever Hoists, 9 Ton Triple Chain”

We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.

Product Specifications
Weight N/A
Shipping Dimensions N/A
Lift

5', 10', 15'

Brand

Harrington Hoist

Headroom

26.8"

Pull to Lift Load (lbs)

78

More Product Information

HARRINGTON LB Heavy Duty Lever Hoists, 9 Ton Triple Chain

CAPACITY
  • 9 Ton
COMPLIANCE
  • ANSI/ASME B30.21, “Safety Standard—Manually Lever Operated Hoists.”
  • ANSI/ASME HST—3M, “Performance Standard for Manually Lever Operated Chain Hoists.”
BODY
  • Rugged, high-impact, all-steel construction weighs less than comparable aluminum models
  • Compact and lightweight
  • Open design for easy inspection and cleaning without dismantling the unit
HOOKS
  • Forged, heat-treated alloy steel hooks open gradually without fracturing under excessive load
  • Top and bottom hooks have heavy-duty hook latch
  • Top and bottom hooks rotate 360 degrees
OPERATION
  • Rubber grip handle for non-slip operation
  • Operate in close quarters with short handle and 15-degree recovery stroke
  • Patented spring-loaded freewheel mechanism for easy adjustment of the load chain and protection against accidental freewheeling under load
GEARS
  • Highly durable, split-load double reduction gears
  • Induction heat-treated and case-hardened
  • Enclosed to protect from dust and moisture
LOAD CHAIN
  • Nickel-plated for corrosion resistance
  • Grade 100 heat-treated
  • Standard lift: 5′, 10′, 15′ or 20′
BRAKE
  • Weston-style load brake with four braking surfaces, two brake pads and two brake pawls for added safety
  • The totally enclosed brake mechanism protects from dirt and moisture
