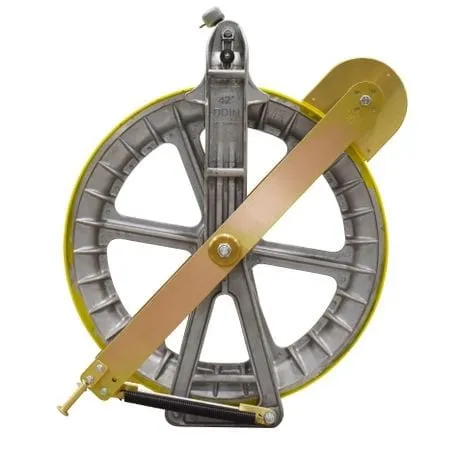

DDIN Grounded Wide Stringing Blocks

$1,361.25$4,440.63

DDIN Grounded Stringing Blocks are assembled with a unique grounding attachment mounted directly to the axle. The 4-½” x ¾” ground stud can accept virtually any ground clamp, while the dual heavy-duty springs keep the roller in constant contact with the conductor. These blocks maintain the same trusted features as DDIN’s Standard Blocks including urethane-lined sheaves, anti-friction shielded ball bearings packed with aviation grease, and a high-strength aluminum alloy frame.

Contact us if you have any questions.

DNSBW16UG
DNSBW22UG
DNSBW28UG
DNSBW36UG
DNSBW42UG
Sheave Diameter (A):
16"
22"
28"
36"
42"
Throat Width (B):
4"
4"
4"
5"
5-3/8"
Throat Depth (C):
5-3/4"
5-1/2"
5-1/2"
6-1/2"
6-3/8"
Overall Length (D):
26-3/4"
32-1/2"
38-3/4"
47-1/4"
53"
Max Sheeve Width (E):
3-1/4"
3"
3-1/4"
3-5/8"
4"
Working Load Limit (WLL)
12,000 lbs.
12,000 lbs.
12,000 lbs.
12,000 lbs.
12,000 lbs.
Weight:
54 lbs.
85 lbs.
94.5 lbs.
224 lbs.
248 lbs.

Reviews

Be the first to review “DDIN Grounded Wide Stringing Blocks”

We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.

More Product Information

DDIN Grounded Wide Stringing Blocks

  • A wider version of the Standard Stringing Block
  • V-Groove” urethane lined wide-throat sheave
  • GOLD Standard grounding attachment mounted to the frame
  • 4-1/2″ x 3/4” Ground stud accepts virtually any clamp

free pdf download icon 3388 thumb e1683558593662 Product Flyer

Product Specifications
Weight 243 lbs
Shipping Dimensions 64 × 10 × 53 in
Sheave Size

16", 22", 28", 36", 42"

Block Type

Grounded

Brand

DDIN

Job Type

Distribution

Sheave Type

Urethane Lined

Sheave Width

Wide

Rentable

Rentable
