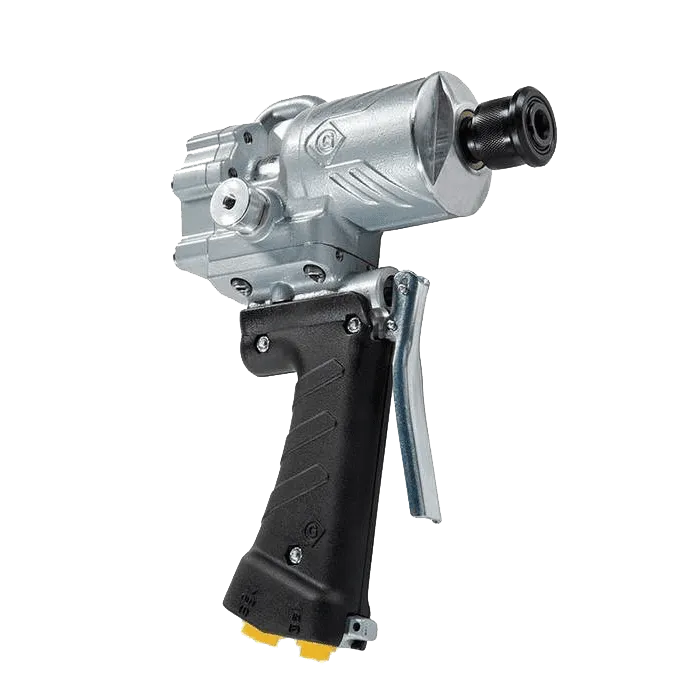

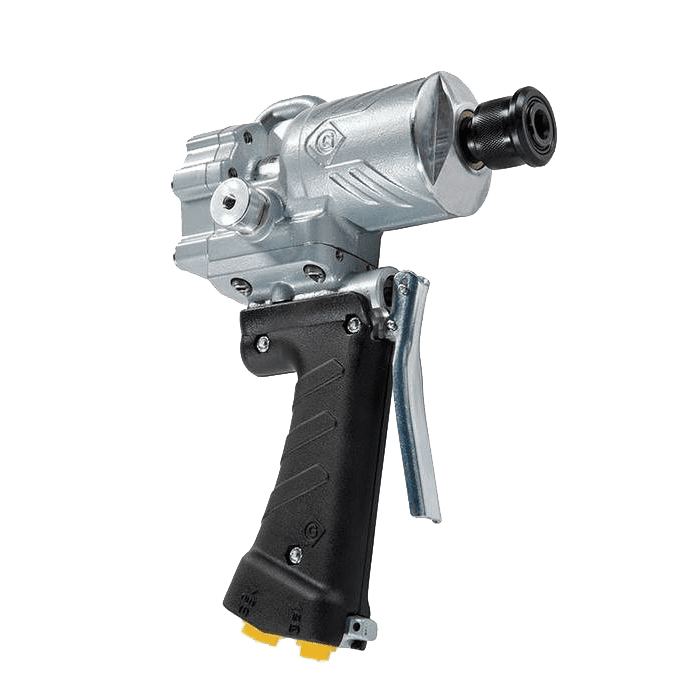

Greenlee Hydraulic Impact Wrench
Greenlee Hydraulic Impact Wrench
- Impact and temperature resistant replaceable polymer grip designed to dissipate heat from the impact wrench handle
- Weight reduction of 14% to previous models
- Improved center-of-gravity for superior ergonomics
- Increased service life with the addition of back-up rings and larger O-rings
- Built-in hydraulic check valve to eliminate damage from an improperly connected tool
- Large and strong lifting eye for easy and secure storage
- Longer and wider trigger provides improved control with insulated gloves
- Fast and easy change between open-center systems and closed-center systems with no disassembly required
- Higher breaking torque in reverse to ensure you can remove tighted bolts
- Cast motor enclosure that better protects the impact mechanism operation versus competing models with stamped steel enclosure
Contact us if you have any questions.
$1,280.10
Greenlee Hydraulic Impact Wrench
Specifications
| Accessory | NR1 Nut Runner With Adapter For 5/8'', 1/2'', 13/16'' and 1.000'' Square Nuts, NR2 Nut Runner With Adapter For 1.000'', 1-1/8'' And 1-5/16'' Square Nuts, 00376 Trigger Guard Kit For HW1 Or HW1V, 49314 Heavy Duty 7/16'' Hex X 1/2'' Square Drive Shank |
| Capacity | 7/16 IN Hex |
| Drive Size | 1/2 IN |
| Flow Range | 4 - 12 GPM (15 - 46 LPM) |
| Handle Type | Impact And Temperature Resistant Replaceable Polymer Grip |
| Height | 11.000 IN |
| Hydraulic System | Super Spool Selector For Open and Closed-Center Systems |
| Includes | 7/16 Hex Quick-Change Chuck And 49314 Heavy-Duty Adapter IN |
| Length | 8.200 IN |
| Operating Pressure | 1000 - 2500 PSI (69 - 170 BAR) |
| Optimum Flow Range | 5 - 8 GPM (19 - 30 LPM) |
| Pressure Port | 9/16 - 18 SAE O-Ring |
| Replacement | 54923 HTMA Male Coupler: HTMA, 3/4-16 SAE O-Ring Exterior Thread, 54925 HTMA Female Coupler: HTMA, 9/16-18 SAE O-Ring Exterior Thread |
| Return Port | 3/4 - 16 SAE O-Ring |
| Torque Rating | 500 FT-LB At 8 GPM (677 N-M At 30 LPM) Maximum, 500 FT-LB At 8 GPM (677 N-M At 30 LPM) Minimum |
| Type | Hydraulic, High Torque |
| Weight | 6.500 LB (2.930 KG) |
| Width | 4.200 IN |
Additional information
| Weight | 8.5 lbs |
|---|---|
| Dimensions | 18 × 12 × 8 in |
| Brand | Greenlee |
