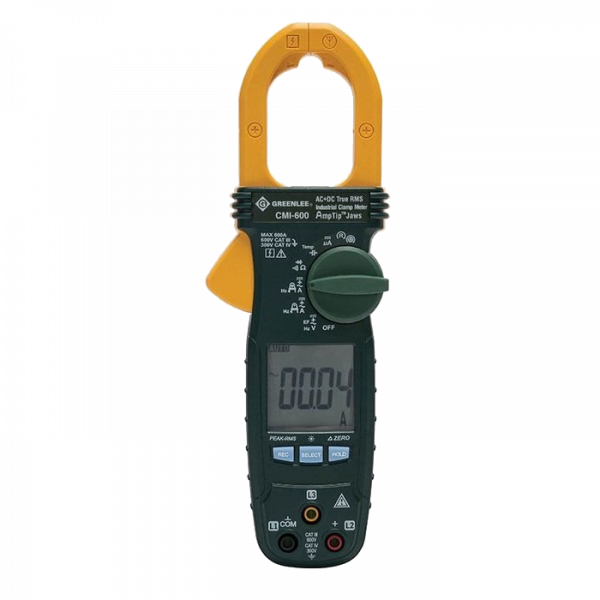

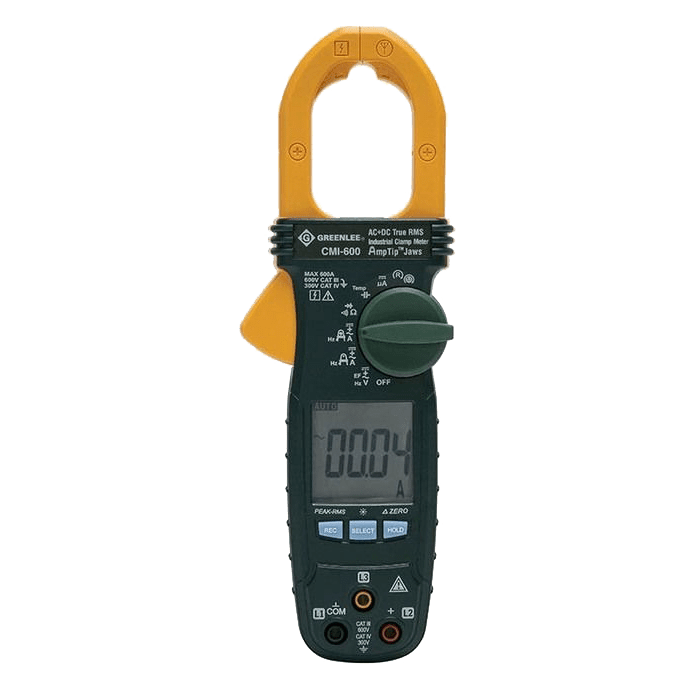

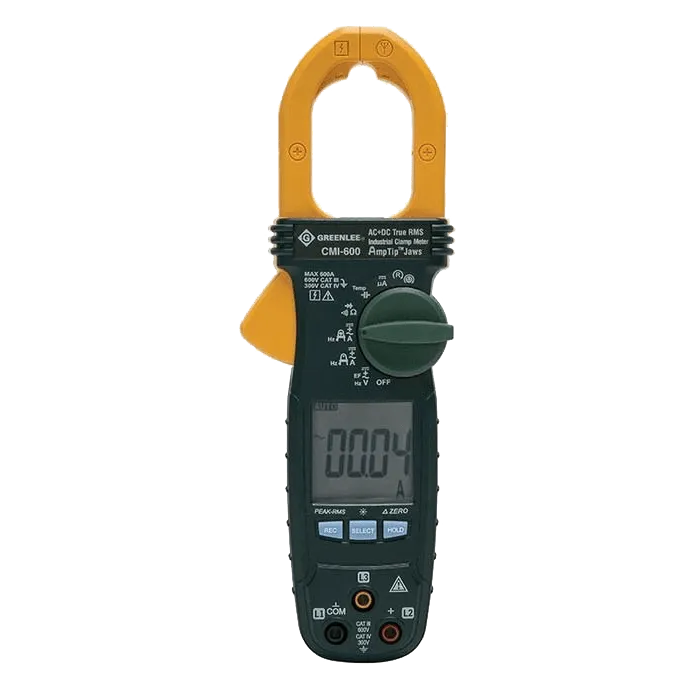

GREENLEE CMI-600 AC/DC Industrial True RMS Clamp Meter
$279.96
The Greenlee CMI-600 Clamp Meter is a hand-held testing device with the following measurement capabilities: AC and DC voltage, AC current, AC current AmpTip™, frequency, non-contact electric field (EF) detection, and resistance. It also checks diodes and verifies continuity. These clamp meters are designed to be placed on or removed from insulated or uninsulated conductors.
Contact us if you have any questions.
You must be logged in to post a review.
We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.
Product Specifications
| Weight | 1 lbs |
|---|---|
| Shipping Dimensions | 11.4 × 5.5 × 2.2 in |
| Amperage Measurement | 60, 600 Amps AC+DC |
| Display | LCD, 6000 Count |
| Frequency Rating | Voltage and AmpTip™ current: 50/60 Hz. High current: 50 to 400 Hz |
| Includes | (2) 1.5V AAA batteries, test leads and clips, carrying case |
| Jaw Opening | 1.18'' (30 mm) |
| Measurement Category | CAT III 600V, CAT IV 300V |
| Replacement Parts | 02714 test leads and clips, TC-10 carrying case |
| Resistance Measurement | 600, 6k, 60k Ohms |
| Standard | CAT III, C/US UL Listed, CE |
| True Power | AC+DC True RMS |
| Voltage Measurement | 600 Volts AC+DC |
| Brand | Greenlee |
More Product Information
GREENLEE CMI-600 AC/DC Industrial True RMS Clamp Meter
- Measures AC+DC current and DC microamps
- AC and AC+DC voltage measurements with digital filter low pass for accurate readings on variable frequency drives
- Also measures DC voltage, resistance, capacitance, temperature, and frequency
- Tests continuity and diodes
- Phase Sequence & Motor Rotation tests
- Peak-RMS measures motor inrush current
- Backlight & relative mode for added versatility
- AmpTip™ increases accuracy on small wires and low current
- Two voltage detection modes – non-contact or using a single test lead
- Data hold
- Recording of Maximum, Minimum, and Average readings
- Lifetime warranty
