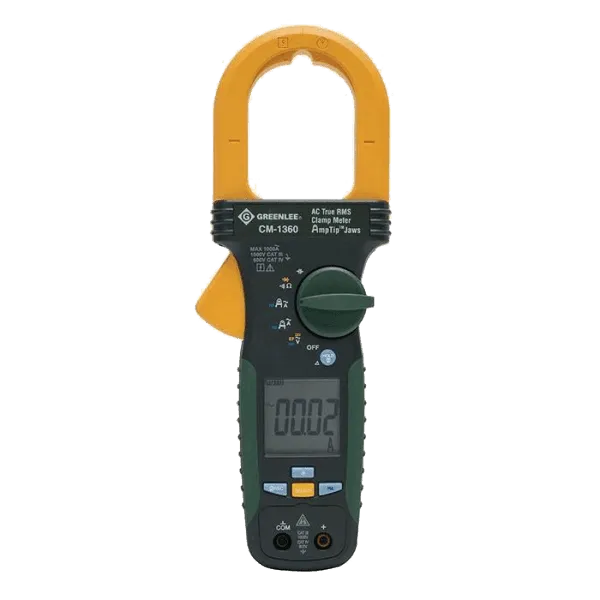

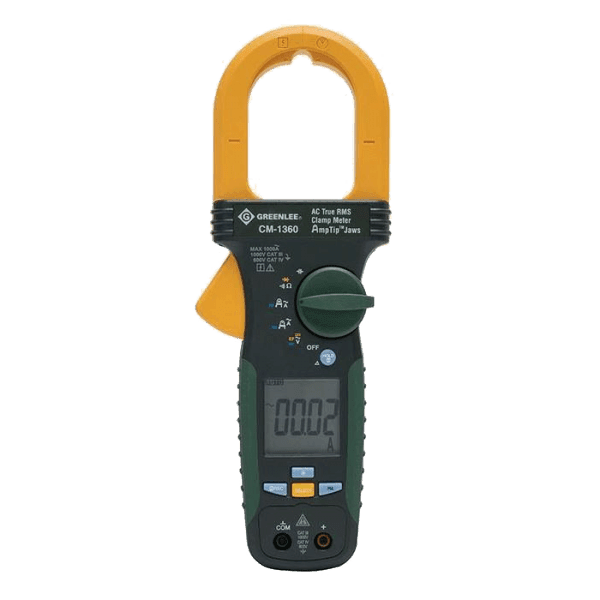

GREENLEE CM-1360 AC True RMS Clamp Meter
$ 282.66
The Greenlee CM-1360 Clamp Meter is a hand-held testing device with the following measurement capabilities: AC and DC voltage, AC current, AC current AmpTip™, frequency, non-contact electric field (EF) detection, resistance, and capacitance. It also checks diodes and can verify continuity. This clamp meter is designed to be placed on or removed from insulated or uninsulated conductors.
- AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage, resistance, capacitance, and frequency
- Tests continuity and diodes
Available on backorder
Product Description
GREENLEE CM-1360 AC True RMS Clamp Meter
- Measures AC current
- AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage, resistance, capacitance, and frequency
- Tests continuity and diodes
- Flashlight inside clamp jaw for easier work in dark locations
- Backlight & relative mode for added versatility
- AmpTip™ increases accuracy on small wires and low current
- Two voltage detection modes – non-contact or using a single test lead
- Data hold
- Recording of Maximum, Minimum, and Average readings
- Lifetime warranty
Product Specifications
| Weight | 2 lbs |
|---|---|
| Shipping Dimensions | 16 × 8 × 5 in |
| Amperage Measurement | 60, 600, 1000 Amps AC |
| Display | LCD, 6000 Count |
| Frequency Rating | Voltage: 50/60 Hz. Current: 40 to 400 Hz |
| Includes | (2) 1.5V AA batteries, test leads, carrying case |
| Jaw Opening | 2.0'' (51 mm) |
| Measurement Category | CAT III 1000V, CAT IV 600V |
| Replacement Part | TSG-3 test leads, TC-30 carrying case |
| Resistance Measurement | 600, 6k, 60k Ohms |
| Standard | CAT IV, C/US UL Listed, CE |
| True Power | AC True RMS |
| Voltage Measurement | 600, 1000 Volts AC/DC |
| Brand | Greenlee |
