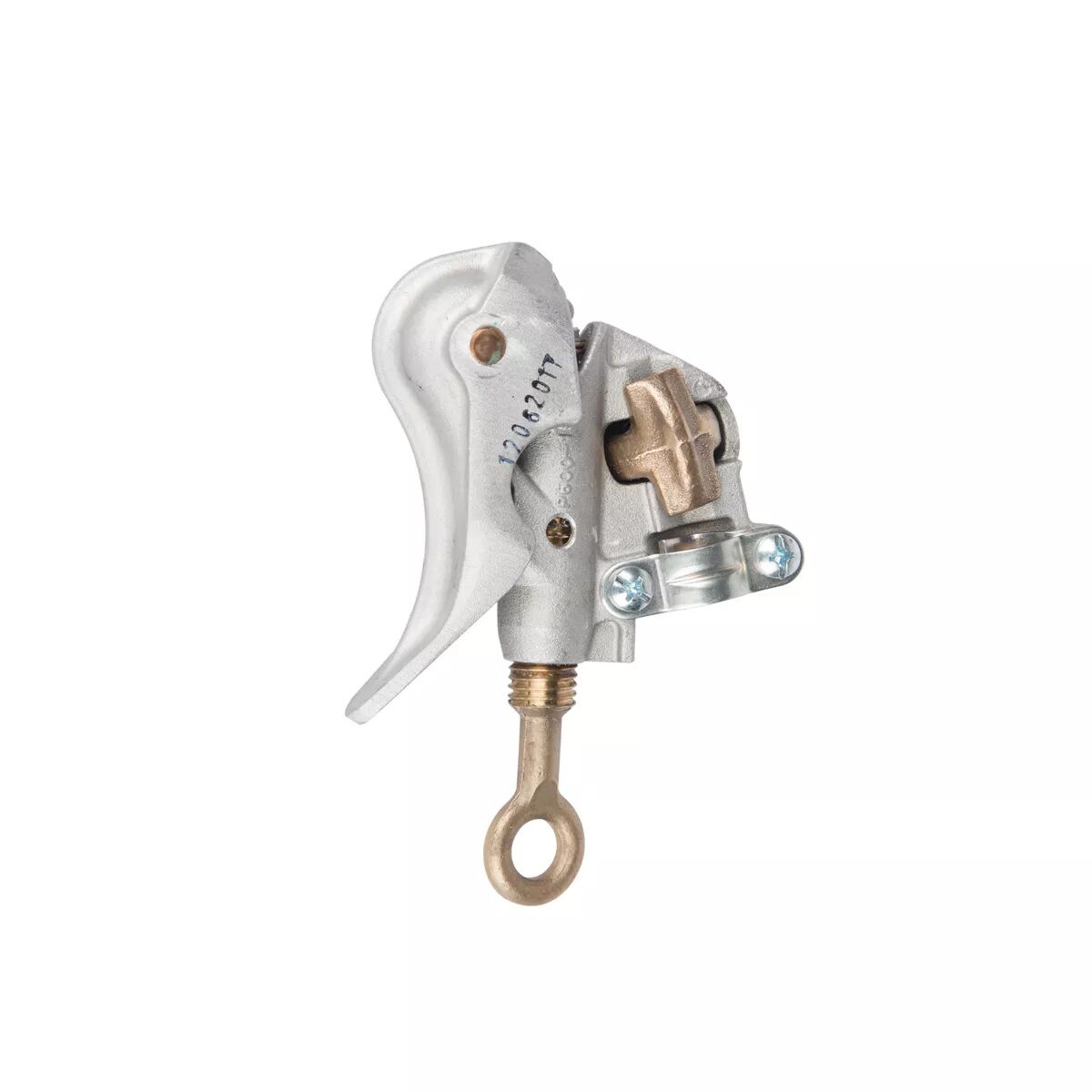

Duckbill-Type Grounding Clamp, Type I-Class A-Grade 5, 1.162″ Jaw Opening New
$ 94.27
Product Description
Duckbill-Type Grounding Clamps
- Duckbill Ground Clamp
- Continuous Current 400A
- Fault Current 43kA for 15 cycles or 30kA for 30 cycles
- Main Line Range Max. 566kcmil CU or 900kcmil ACSR (1.162″)
- Main Line Range Min. #6 Sol. CU (0.162″)
- Jumper Range Max. 4/0 Grd. Cable
- Jumper Range Min. #2 Grd. Cable
- ASTM Type I, Class A, Grade 5
- IEC Rating 35kA (15 cycles)
- Jaws Smooth
- Ferrule Plain-Plug
Product Specifications
| Weight | 2 lbs |
|---|---|
| Shipping Dimensions | 8 × 6 × 4 in |
| Torque Rating | 250 in-lbs |
| Current Rating | 400 A |
| Fault Current | 15 cycles: 43000 A |
| Grounding Wire Capacity | #2 to 4/0 |
