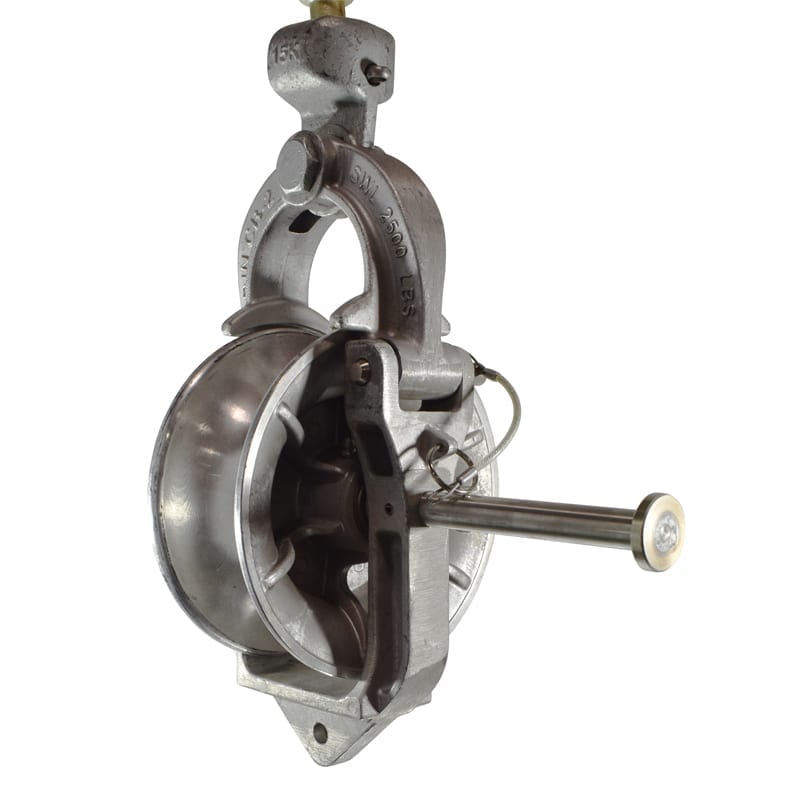

Universal Grounded Block DNCB-2
DDIN Universal Grounded Blocks feature a 5-1/8” ground stud installed through the frame. The grounding stud is offered on both the CB-1 and CB-2 universal blocks. These blocks maintain the same trusted features as the standard universal blocks: a high-strength aluminum alloy frame, heavy-duty sealed ball bearings, and 3 versatile mounting options.
For a convenient transport and storage solution, add a 47″ x 40″ x 36″ Steel Wire Basket. This will hold up to 100 universal blocks.
Contact us if you have any questions.
Universal Grounded Block DNCB-2
- Gate Style: Hinged Flip Top
- Gate is retained with a ball detent pin
- High-strength alloy frame
- Ground stud length: 5 1/8”
- Heavy-duty sealed ball bearings packed with synthetic aviation grease
- 3 mounting options
- Crossarm bracket
- Insulator bracket
- Suspended using a mounting attachment
Product FlyerAdditional information
| Weight | 8.5 lbs |
|---|---|
| Dimensions | 20 × 17 × 10 in |
| Sheave | Aluminum, Ductile Iron |
| WLL | 2,500 lbs |
| Block Type | Grounded |
| Brand | DDIN |
| Job Type | Transmisson |
| Sheave Size | Seven Inch |
| Sheave Width | Standard |
