Dillon Communicator II with Radio and Backlight

Item_number: DLAWT05-506447 Categories: , , , Tags: ,

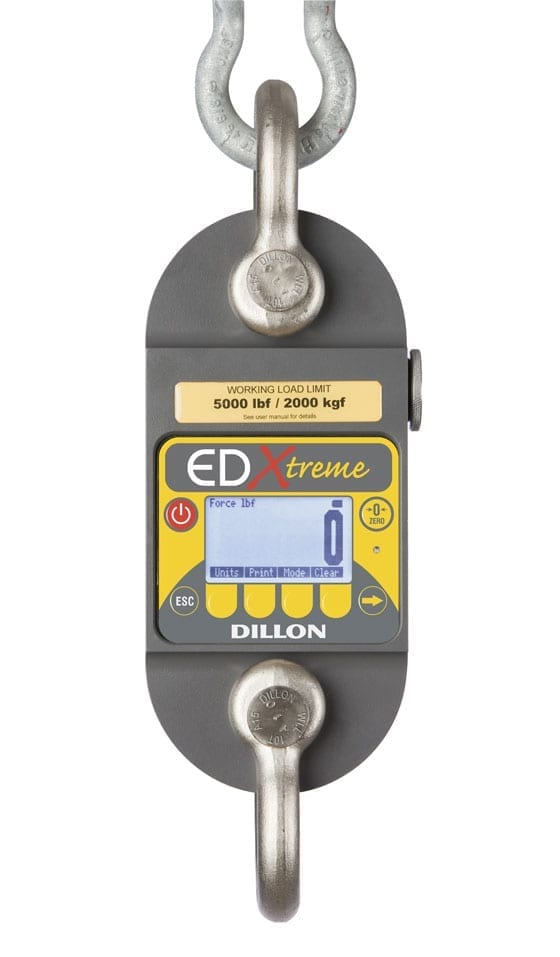

Communications unlock the full potential of the EDXtreme

One of the foremost reasons for choosing an electronic dynamometer is added functionality. The radio or hardwired options available with the EDXtreme offer the convenience and safety of remote operation. Additionally, data from the dynamometer(s) can be downloaded to a PC via an RS-232 connection for compilation and analysis or to generate hard-copy printouts.

Remote control and radio communications are not new to the Dillon product line. In fact, it is the depth of Dillon’s experience in this area that led to meaningful innovations in the design of the Dillon EDXtreme and its optional remote Communicator.

Improved radio performance
Unlike the many products on the market today, the EDXtreme radio dynamometer utilizes leading-edge 2.4Ghz radio frequency technology to eliminate common interference issues. This spread spectrum technology will establish and maintain the strongest, most reliable communications.

Dynamic monitoring and control

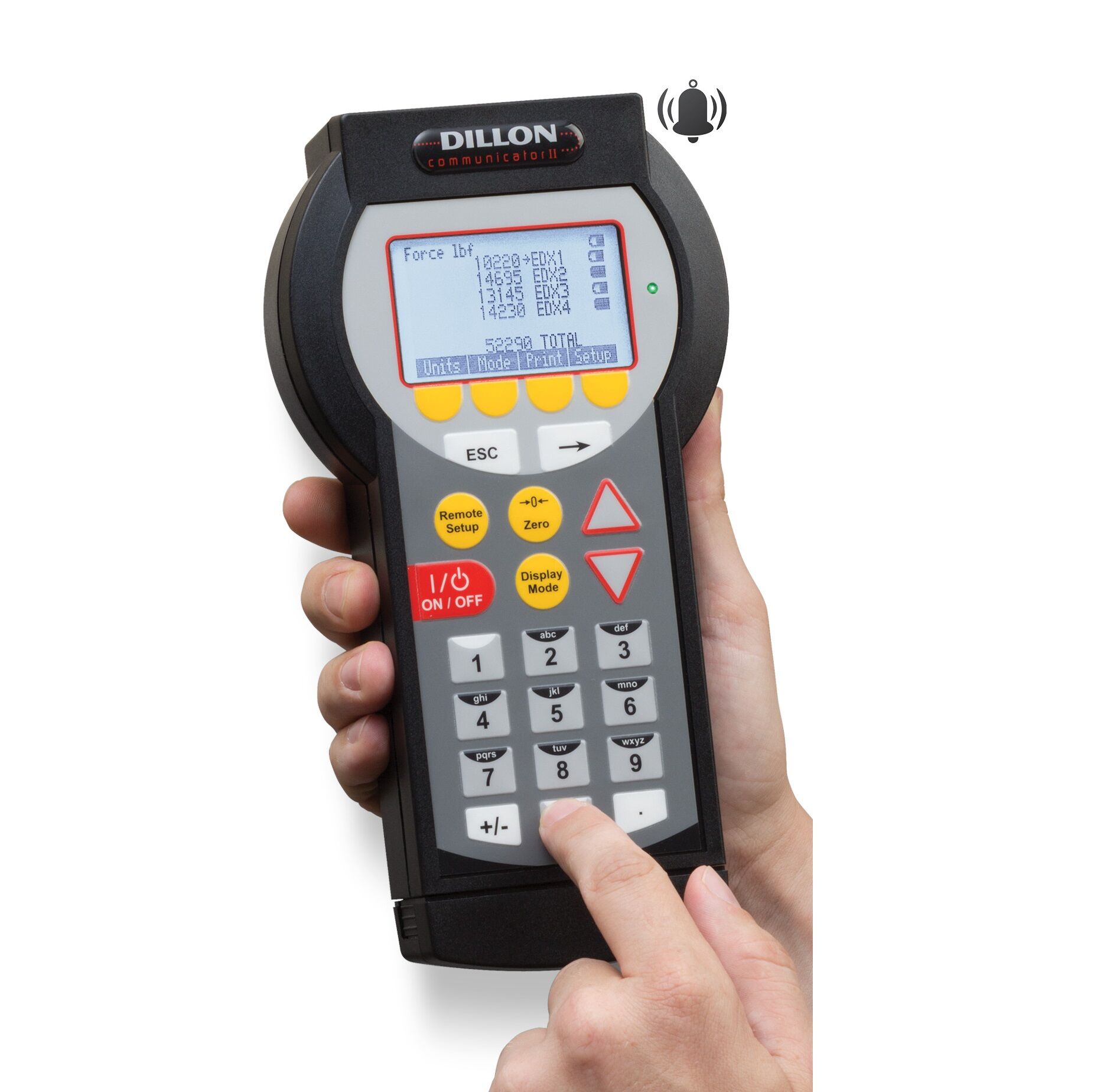

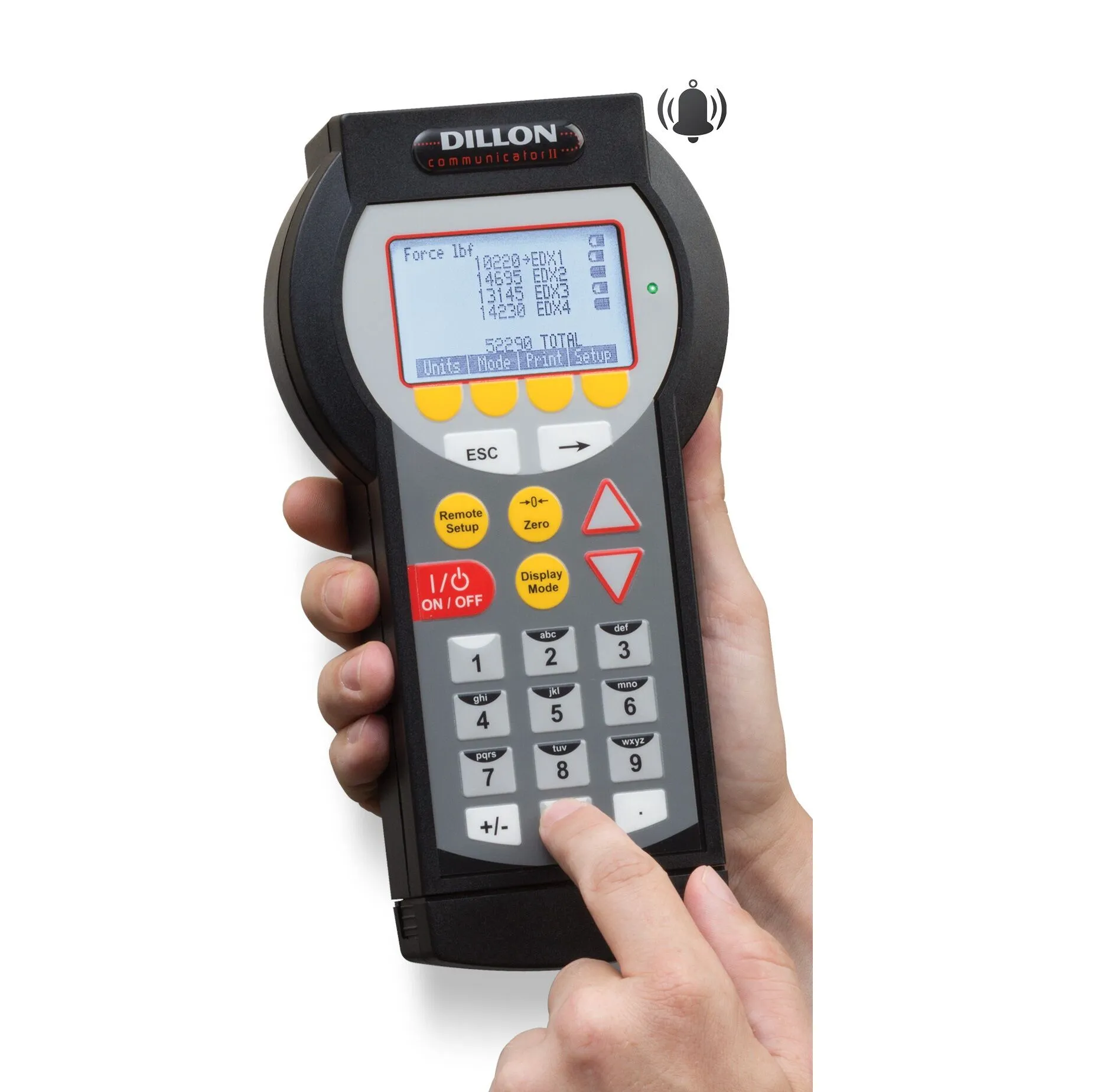

The optional Communicator is an extremely powerful hand-held remote that can define the function and manage the operation of one or more EDXtreme dynamometers using wired or radio technologies. Through the programmable SOFTKEY interface, one or more Communicators can monitor multiple dynamometers within the same airspace. In multiple-link lifting arrays, the Communicator can display

Contact Us with any questions you may have.

Item_number: DLAWT05-506447 Categories: , , , Tags: ,
Item in stock for fast shipping


Enclosure Designed to NEMA 3 / IP44 with optional sleeve. Suitable for protected outdoor use
Connectivity up to 15 EDX units can be connected simultaneously
Wireless Range 300 to 600 feet
Dimensions 9.5 x 5.0 x 2.5 inch (241 x 127 x 64mm).
Accuracy Not applicable. Only sends and receives digital information
Display 128 x 64 dot-graphic LCD display can show full readings up to 5 instruments
Battery Life Up to 80 hours of continuous radio using (4) AA alkaline batteries
Operating Temperature -4° F to 158° F (-20° to 70° C)
Connectors Sealed connectors may be used for serial communications and wired connection to an EDxtreme dynamometer
RS-232 Communication Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
Included with Remote: Carry case and batteries
Shipping Dimensions 18 x 12 x 8 Inches
Accessories Rubberized case protector sleeve, Remote wall mount bracket. Serial and remote cable assemblies
Approval CE
Shipping Weight 10

Dillon Downloads




Installation & Operation Guide

Additional information

Weight 10 lbs
Dimensions 9.5 × 5 × 2.5 in
