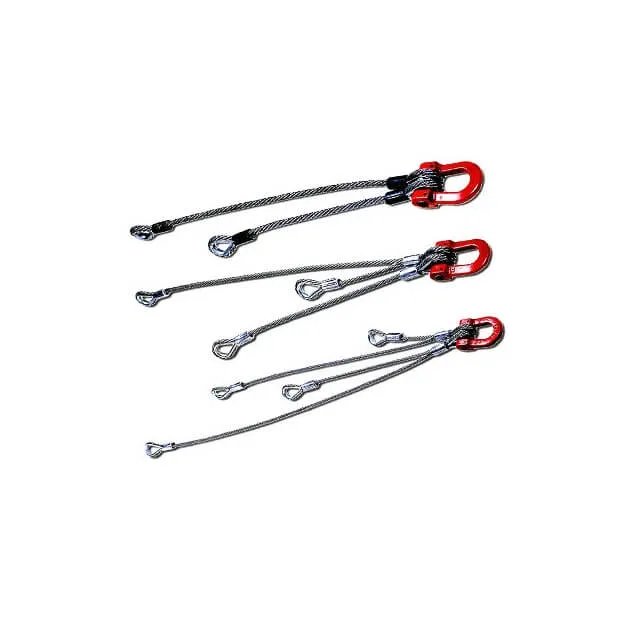

DCD Wire Rope Bridle Slings
$ 154.78 – $ 310.58
Wire Rope Bridle Slings allow multiple pulls at one time by attaching 2, 3 or 4 cables or ducts to the Puller. The 23000 Series of Slings are manufactured from Aircraft quality wire rope. The various “legs” are staggered in length so the individual connections are not interfering with each other. The lead coupler can be dismantled to change out a leg or to add another leg.
Contact us if you have any questions or to order other combinations.
Product Description
DCD Wire Rope Bridle Slings
Each leg is marked with load capacity and they have a three times safety factor on that rating. The safety factor is based on equal pull on all cables (horizontal pull only). Couplers and wire rope sling legs may be ordered separately. Other sling configurations are available upon request.
Line Swivels (00505 series) are recommended to permit free rotation of the bridle at the legs and coupler. The recommended swivels are sized to suit the load and connection: smaller swivels over the leg loop, a larger swivel to fit the shackle.
Product Specifications
| Weight | 15 lbs |
|---|---|
| Shipping Dimensions | 20 × 10 × 10 in |
| Brand | DCD |
| Wire Diameter | 1/4", 3/8", 1/2" |
| Number of Legs | 2, 3, 4 |
