Flat Faced Couplers
$19.66 – $50.23

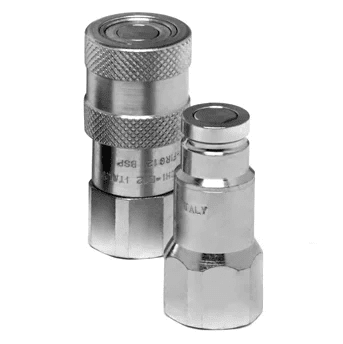

The FIRG Flat Face Series, the original ISO 16028 interchangeable coupling, continues to offer good performance, long life and competitive pricing. The integrated sealing mechanism greatly reduces premature wear caused by movement between coupler and nipple parts affected by impulse pressure and the weight of the hoses and tubing when the coupling is in horizontal position.
You must be logged in to post a review.
We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.
Product Specifications
| Weight | .55 lbs |
|---|---|
| Shipping Dimensions | 3 × 1.5 × 11.5 in |
| Connection & Type | 1/2" Female X 1/2" NPT, 1/2" Male X 1/2" NPT, 3/8" Female X 3/8" NPT, 3/8" Male X 3/8" NPT |
More Product Information
Features
- Port: NPT
- Interchanges with ISO 16028
- Working pressure: 20-30 MPa/2900-4350 psi range
- Non-spill design avoids fluid loss during connection/disconnection
- Minimal air inclusion during connection
- Tight tolerances ensure equal loading of couplers
Applications
- Anywhere fluid loss and hydraulic circuit contamination need to be reduced or eliminated
- Mobile construction, agriculture, and mining operations
- General industrial plants
