CONDUX Jamb Skid Base Section

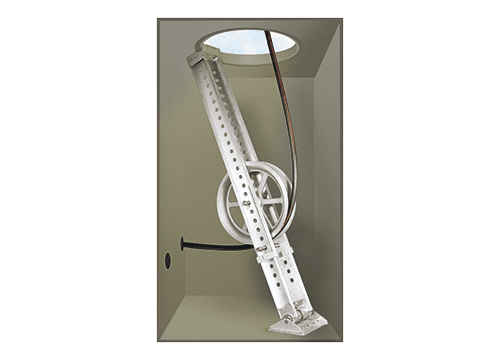

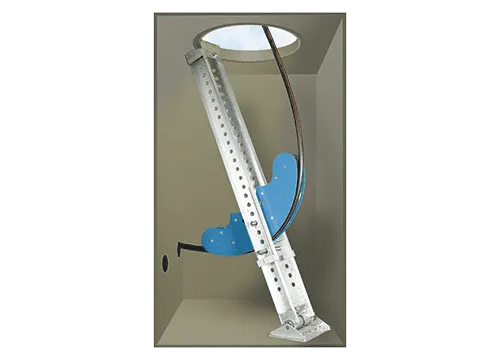

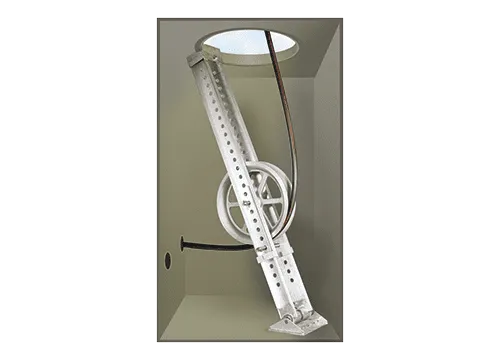

The Condux Jamb Skid is a device for supporting sheaves or quadrant blocks inside a manhole to pull cable into underground conduit. A variety of extensions are available.
Contact us if you have any questions.
Call to Order
Condux Jamb Skid Base Section
By positioning the top of the jamb skid against the underside of the manhole opening, and using the camlock foot pedal, set-up can be done in a fraction of the time it takes to install a hanging sheave assembly. Pulling tension actually increases stability during the pull. No dangerous breakage of chains or straps. The Jamb Skid is especially useful when there are no pulling-in irons available, or when the existing irons do not align correctly. It can be placed anywhere within a 360 radius inside the manhole.
Constructed of solid aluminum, the Jamb Skid is both strong and lightweight. In most instances, it can be installed by one person. The complete unit is created by combining a base unit with one of several extension units, depending upon the height required. Locking 11/4" (32 mm) pins allow height adjustment. Also, the width adjusts from 7" (178 mm) to 11" (279 mm) to accept all Condux sheave assemblies up through 8" (203 mm).
NOTE: Order base section and choice of extension separately for a complete unit. Locking pins are included with the base section.
|Dimensions||58 × 11 × 11 in|
