Roller Link Stick

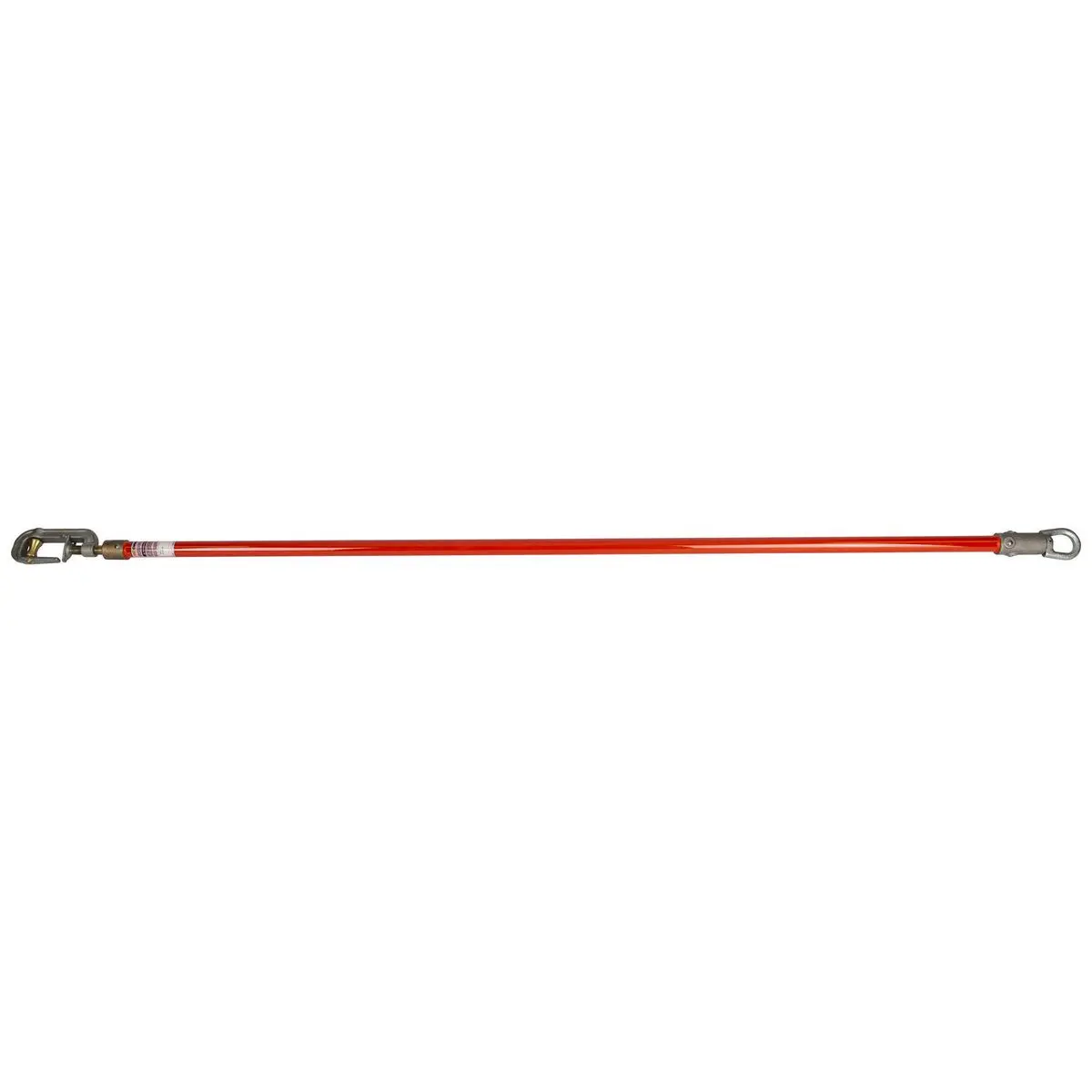

CHANCE Roller Link Stick, 58″

Item Number: ABH47144 Categories: , , ,

$ 499.61

The Chance Roller Link Stick is used to spread and hold conductors aside at midspan when relocating poles. It is applied to the conductor at the pole and pulled to position by a hand line attached to the butt ring. The handline should be secured by a temporarily installed screw anchor or other fixed object.

  • Tested per OSHA & ASTM F711
  • For spreading and holding conductors at midspan when relocating poles
  • Applied to conductor at pole and pulled to position by hand line on butt ring

Available on backorder

Product Description

CHANCE Roller Link Stick, 58″

The tool is also used for measuring conductor-to-ground clearance by attaching a measuring tape or length of rope to the butt ring. Poles for Roller Link Sticks are 1-3/4 inches. Rotating the pole closes the hook leaving the head free to roll along the conductor.

  • Tested per OSHA & ASTM F711
  • For spreading and holding conductors at midspan when relocating poles
  • Applied to conductor at pole and pulled to position by hand line on butt ring
  • Handline should be secured by a temporarily installed screw anchor or other fixed object
  • Also used for measuring conductor-to-ground clearance by attaching measuring tape or length of rope to butt ring
  • 1-1/4” pole
  • Rotating the pole closes the hook, leaving head free to roll along the conductor

Product Specifications

Weight 7 lbs
Shipping Dimensions 60 × 5.5 × 4.75 in
Duty

1,000 lbs
Brand

ABChance
Wire Size

605 kcmil ACSR
