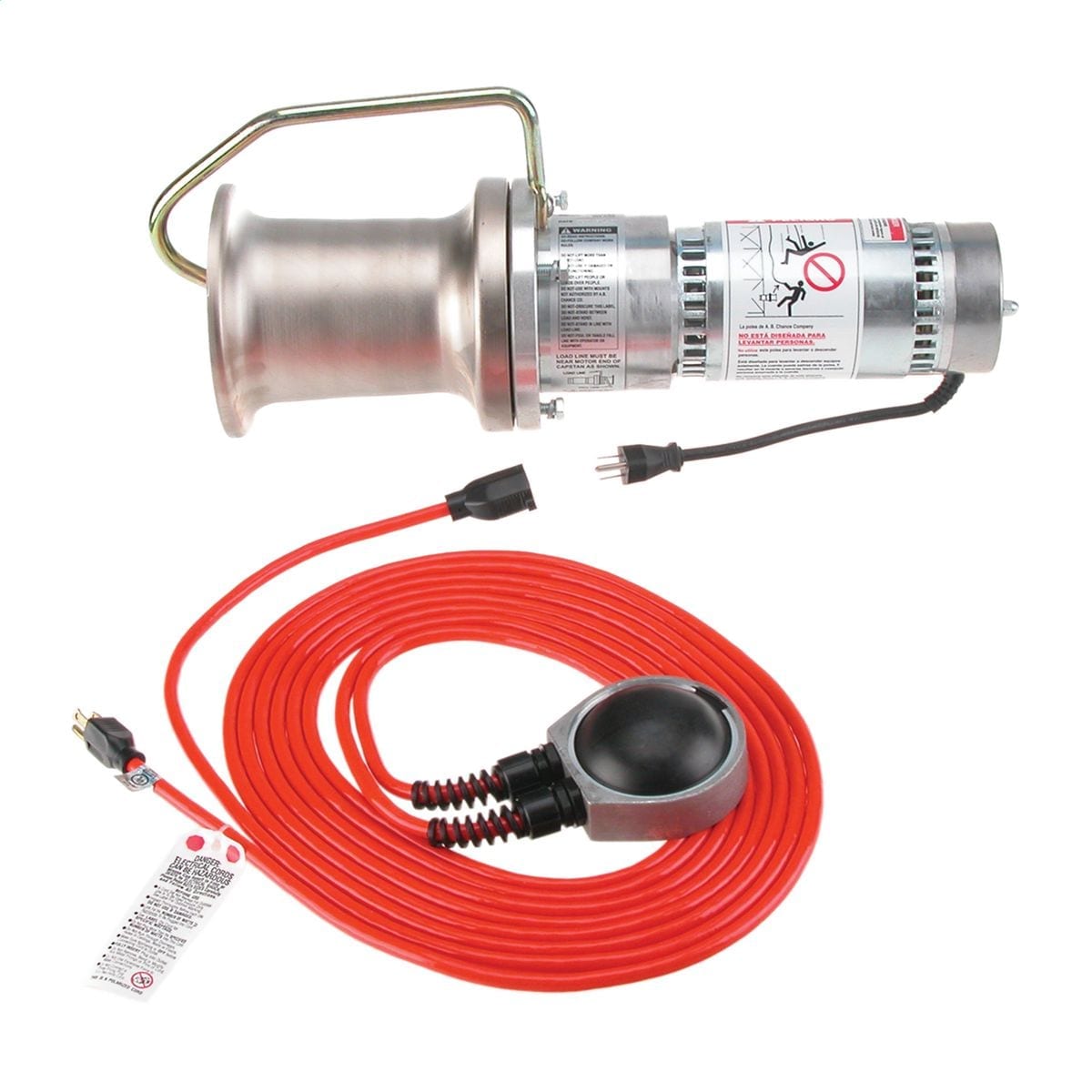

Improved design features a multiple-planetary drive/backstop-clutch assembled on the center shaft of a steel gear case with full-length internal teeth. This design handles more rugged jobs, extends service life, and reduces maintenance. Lightweight yet powerful, these portable hoists move many heavyweight tasks and can get into remote or difficult-access sites.

Examples: Setting utility poles, pulling wheeled equipment over obstacles, raising transformers (even over fences in back lots), hoisting heavy insulators, stringing and tensioning conductors, pulling cable (indoors and underground). Operator effort remains low for typical loads simply by adding wraps on the capstan drum. So little effort is required, any crew member can run the hoist. Control is so accurate, loads can be moved fractions of an inch.

Capstan Hoists are available for rental.

Contact us if you have any questions.



4 wraps of rope = 1:44 ratio. That is, 1 lb. pull on Fall Line develops 44 lb. on Load Line. Therefore, 20 lb. of pull develops 880 lb. of lift.

Owner's Manual

Additional information

Weight N/A
Dimensions 32 × 16 × 17 in
Item Description:

Capstan Hoist 1,000 LB. (115V AC), Capstan Hoist 1,000 LB. (230V AC), Capstan Hoist 1,000 LB. (12V DC), Capstan Hoist 1,000 LB. (Hydraulic), Capstan Hoist 1,000 LB. (Gasoline)
