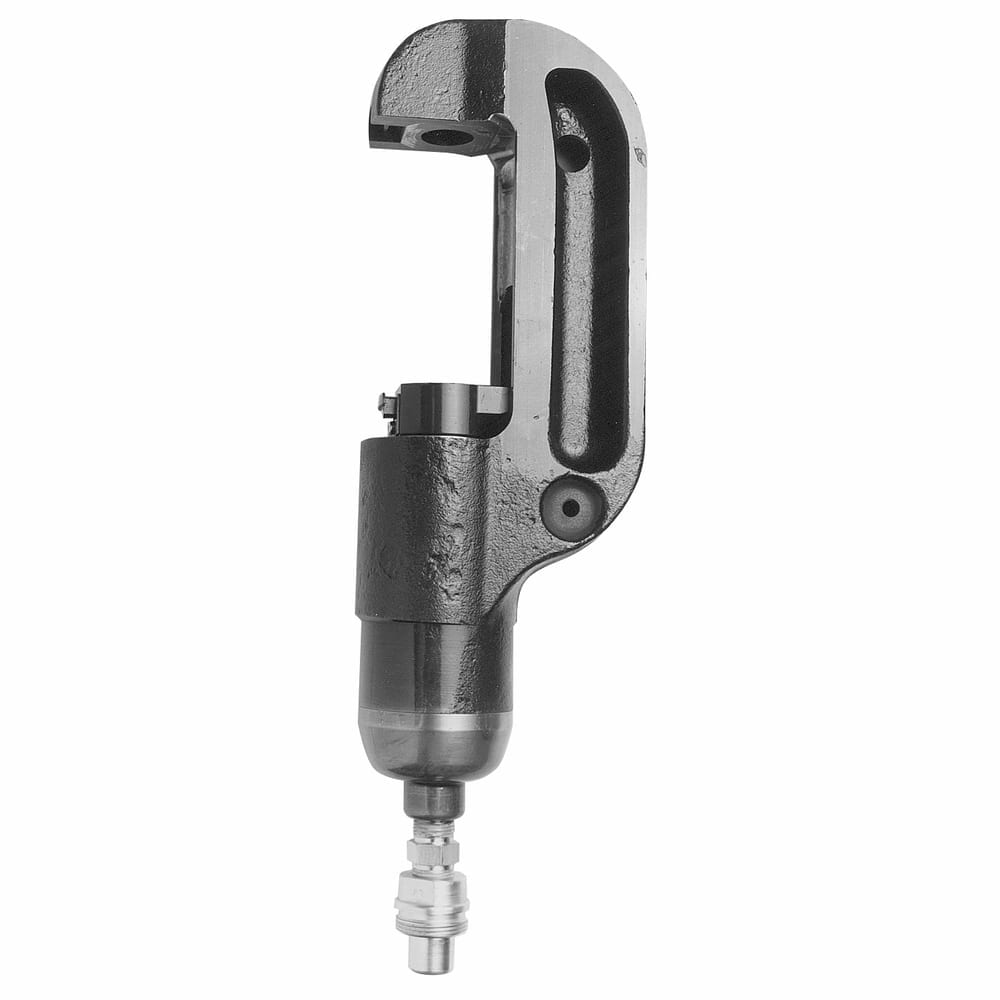

BURNDY 15 Ton Compression Head

$6,183.35

Available on backorder

15-Ton Remote Compression Head Crimper, Operating Pressure 10000 psi, Uses S and U Dies with PT6515 Adapter

Easy connector installation and tool removal from line conductors with the open C-shaped head, Easily lifted into working position using lifting eye, Easy die changing plus secure die alignment is provided with the positive die lock buttons

5 year limited warranty

Contact us if you have any questions.

Available on backorder

Reviews

Be the first to review “BURNDY 15 Ton Compression Head”

We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.

Product Specifications
Weight 15.5 lbs
Shipping Dimensions 15.25 × 6 × 4.5 in
Item Description

15 Ton U Die Adapter, Hydraulic head

Application

Copper, Aluminum, ACSR, HYGROUND® Compression Grounding, Ground Rod

Crimp Force Capacity

15 ton

Die Type

S Die and U Die with PT6515 Adapter

EU RoHS Indicator

Yes

Trade Name

Hypress

Crimping Ranges

Tension Sleeves: Copper #8 sol. – 500 kcmil, Aluminum #6 sol. – 954 kcmil, ACSR #4 – 795 (26/7) kcmil; Taps: Aluminum #14 – 954 (18/1) kcmil, ACSR #6 – 795 (54/7) kcmil; Aerial Cable Connectors: Copper #6 str. – 1500 kcmil, Aluminum #4 str. – 1000 kcmil; HYGROUND® Compression Grounding: Copper #6 – 500 kcmil, 1/2” – 1” ground rods; Code Cable Terminals/Splices: Copper #8 – 1500 kcmil, Aluminum #8 – 1000 kcmil; Code Cable Taps: Copper #14 – 1000 kcmil, Aluminum #14 – 900 kcmil

Brand

Burndy

More Product Information

BURNDY 15 Ton Compression Head

  • Large jaw opening
  • Quick disconnect hydraulic fitting
  • C-Shaped hook style head
  • Heavy-duty reinforced forged steel body

Sales Drawing download
