AEMC INSTRUMENTS Data Logger DL914
$1,999.00
Available on backorder

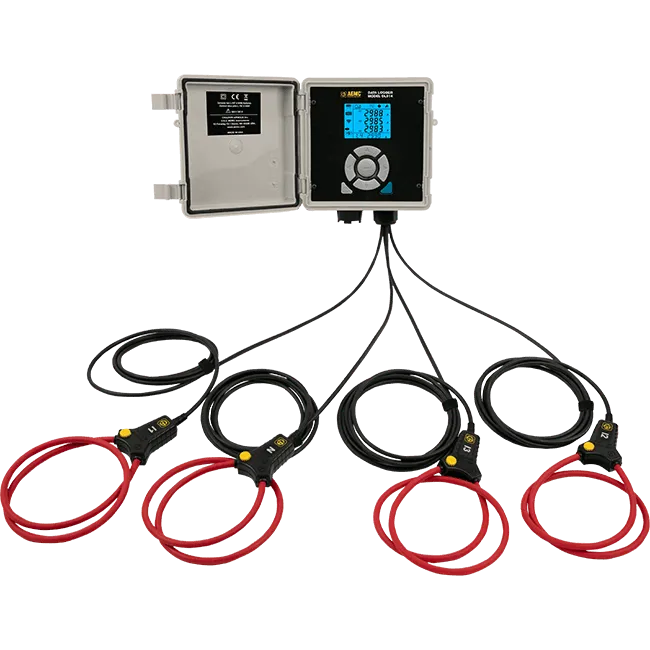

The Data Logger Model DL914 is a 4-channel AC current data logger with four integral flexible current sensors. Each sensor is 24 inches long and capable of wrapping around a 7.64-inch conductor. The DL914 has two measurement ranges of up to 300 and 3000 Amps.
Both the data logger housing and the current sensors are water resistant rated to IP 67. A selection of data storage modes, as well as data sampling rates is user programmable through the DataView® software included with the unit. However, most of the setup can also be done from the keypad and LCD display on the instrument. The measurements are stored in internal nonvolatile memory. Data storage rates as fast as once per second.
Communication is done through a USB port or wireless Wi-Fi and it is powered by two rechargeable NiMH batteries. The instrument can also be externally powered through the USB plug.
Contact us with any questions you may have.
100% Secure Payments
You must be logged in to post a review.
We really want your feedback on the products we sell at Tallman Equipment. If you’ve used any of the products we sell (whether you bought them from us or not), leave a review on our website. After writing just 3 reviews, you can receive a free Tallman t-shirt.
Product Specifications
| Weight | 4 lbs |
|---|---|
| Shipping Dimensions | 10 × 10 × 6 in |
| Brand | AEMC |
| Device Dimensions | (5.9 x 5.9 x 3.57) in |
| Device Weight | 2.42 lbs |
| Technical Specifications | *See Datasheet |
| Memory | Recorded data is stored in non-volatile 8 GB internal memory. |
| Power | Internal: (2) 4.2 A·h NiMH rechargeable batteries |
| Recording Length | Battery Power: 4 days with no missing samples (normal recording mode) |
More Product Information
AEMC INSTRUMENTS Data Logger DL914
Includes small classic tool bag, 10 ft USB Type A to Type B cable, (4) stainless steel mounting brackets with (4) Phillips M4-0.7 x 8 mm stainless steel machine screws, USB power adapter, quick start guide, and USB thumb drive with DataView® software and user manual.
