AB CHANCE WIRE-HOLDING STICKS

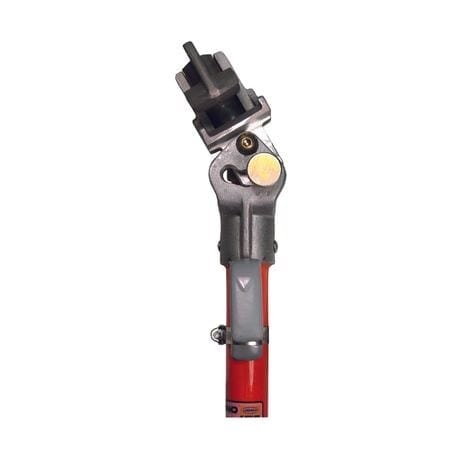

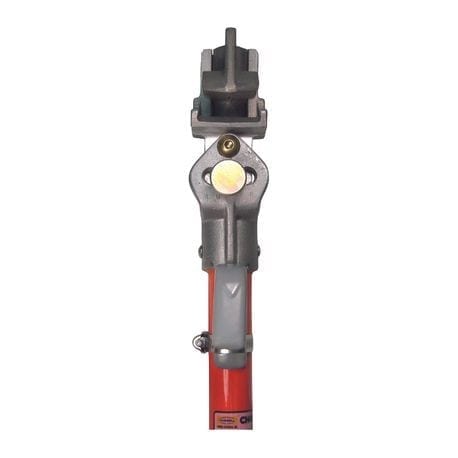

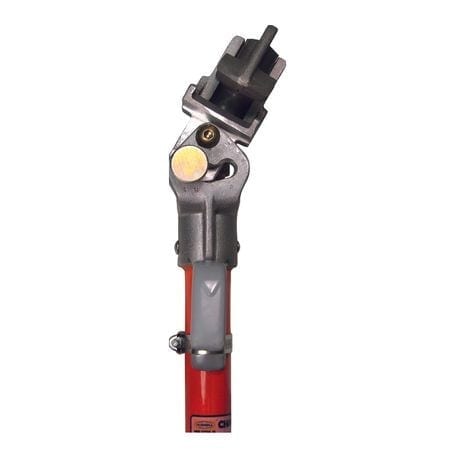

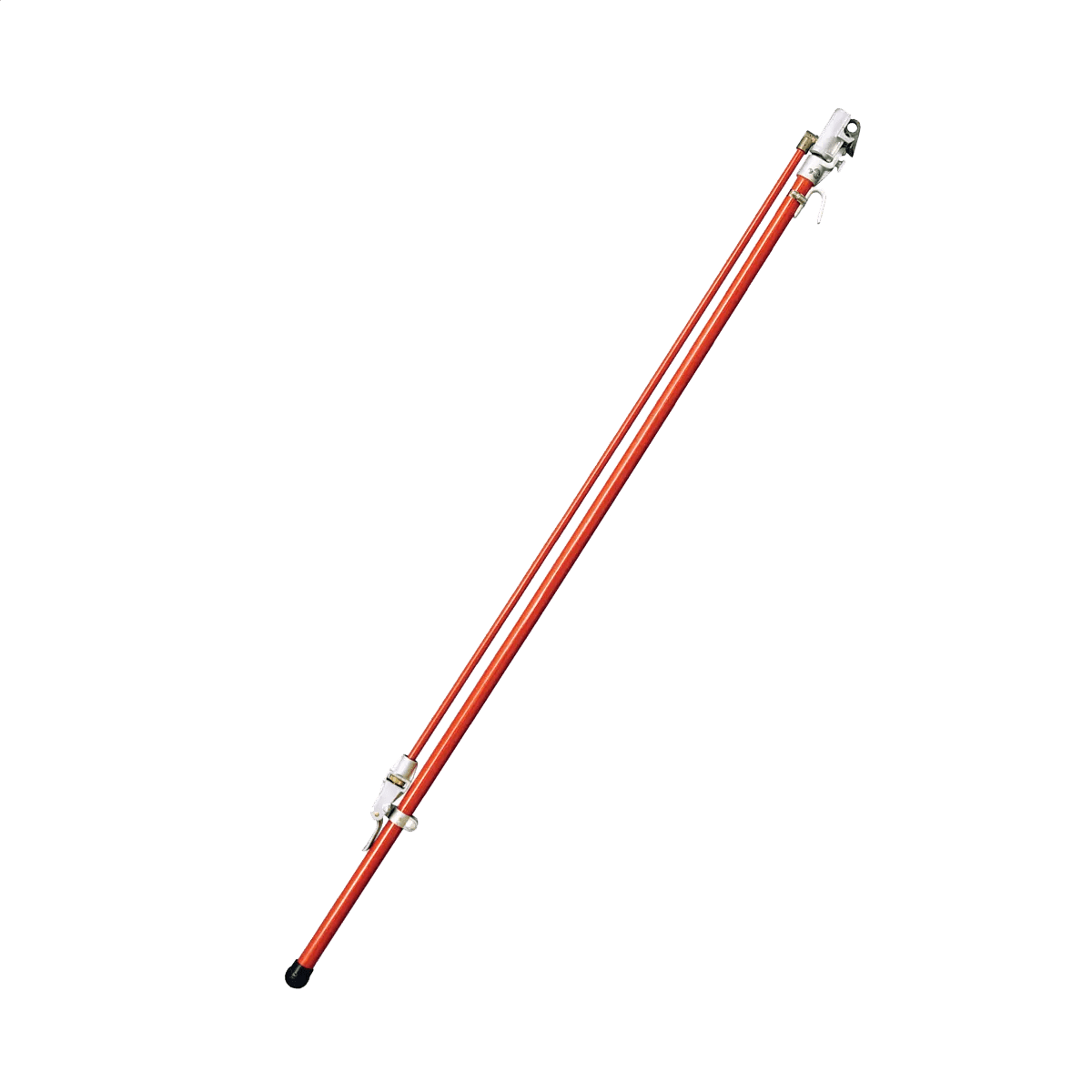

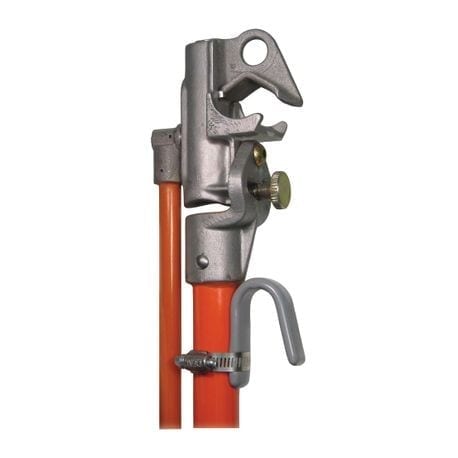

The AB Chance Epoxiglas® Wire-Holding Stick is used on or around energized lines for forming, bending, and positioning jumper wires; and for holding conductors during splicing operations. The gripper, equipped with an eye so that other sticks can assist with heavy bending, will handle No. 6 solid copper through 1590 kcmil ACSR. Operation of the Wire-Holding Stick has been simplified so that it grips much like locking-type pliers. By tightening the knurled nut at the control lever, the wire holding jaws can be positioned to firmly grip the conductor. When this is done, the tightening control lever must be relaxed in a position about 1 inch away from the pole. Then, to secure the grip on the conductor, push the lever down to pole; and to release the conductor simply move the control lever all the way up along the rod. The head of the tool locks in three stop positions so that the lineman can engage and position conductors easily from most angles. The knurled screw handle below the jaw opening is used to adjust the head position from straight to right or left.

Contact us if you have any questions.

$393.45$453.32

Clear

AB Chance Resources/Downloads

Specsheet

Sales sheets

Additional information

Weight N/A
Dimensions N/A
Size

1-1/4" x 6'5", 1-1/4" x 8'5"
