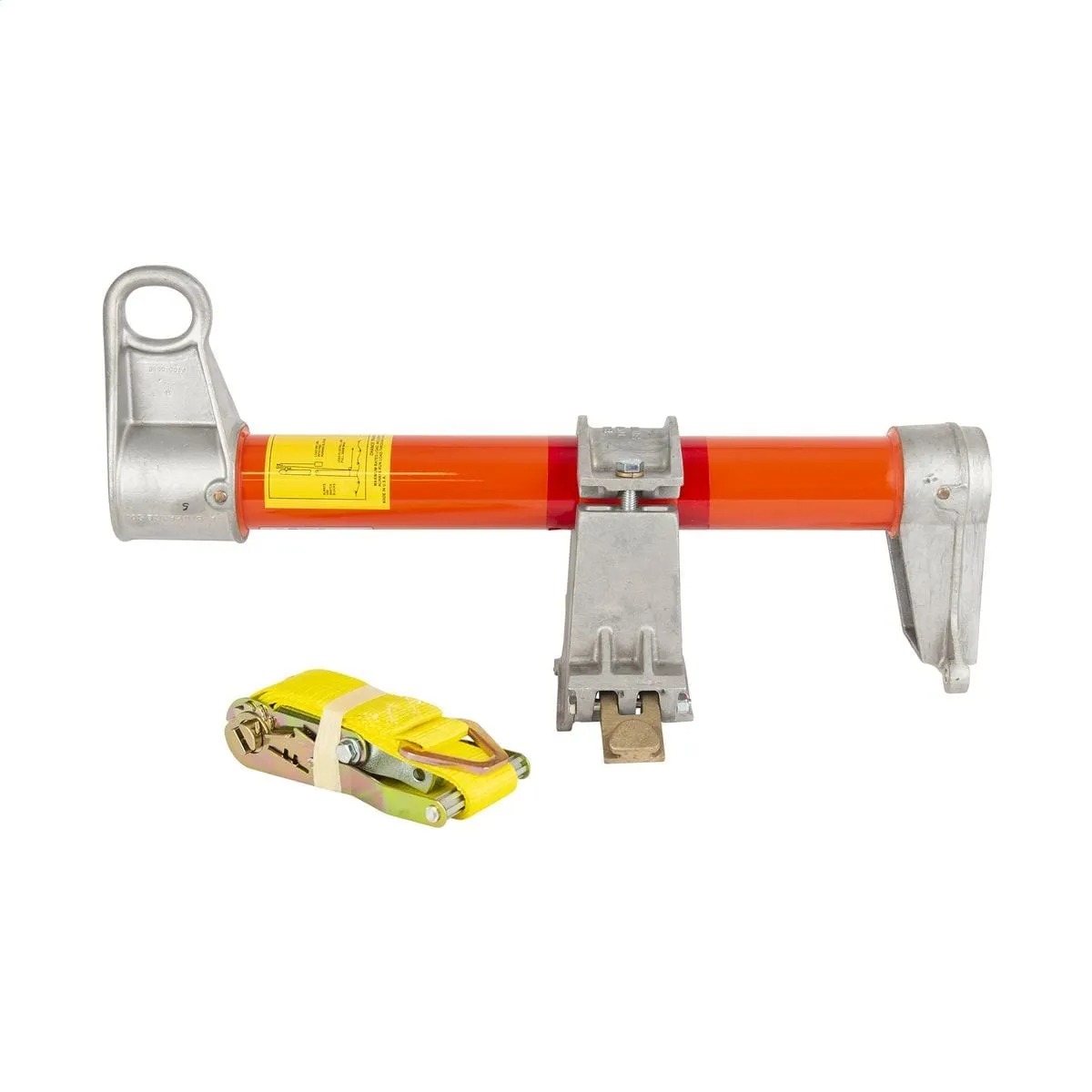

AB Chance Transformer Gin

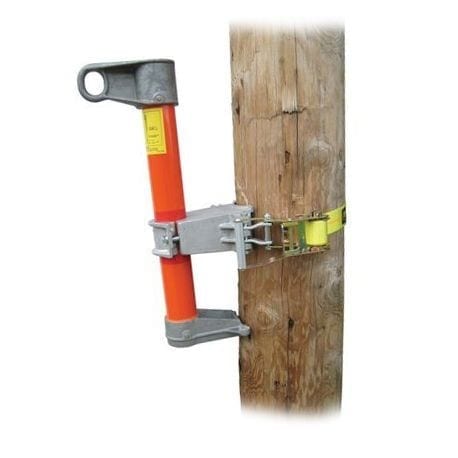

With a strap-type ratchet-action mounting mechanism rather than a chain binder, these AB Chance Transformer Gins are otherwise are the same as chain-type gins. With 10,000-lb. rated tensile strength, 2″-wide polyester strap comes in 44″ length to fit most structures. Wide handle opening on rapid-action ratchet permits easy operation, even with rubber gloves and leather protectors. This model has a 2,000-lb. maximum rating, including load and fall-line pull.
When calculating load capacities, allow 10 percent for friction in rope pulleys. Then, for example, using two double-sheave blocks, the maximum load that can be lifted would be 1,400 lb. Or, using a single sheave, the maximum lift load would be 900 lb. Gins are not intended for applications involving side pull on the hoist line or with the lift load in a tagged-out position. That is, the load line should be parallel to the gin pole.
Contact us if you have any questions.
AB Chance Resources/Downloads
- Same as Chain-Type Gins, except with a strap-type ratchet action mounting mechanism rather than a chain binder
- With 10,000-lb. rated tensile strength, the 2”-wide polyester strap comes in 44” length to fit most structures
- Wide handle opening on rapid-action ratchet permits easy operation, even with gloves
|Dimensions||30 × 14 × 12 in|
