MILWAUKEE M18™ FORCE LOGIC™ 12T Latched Linear Crimper Kit

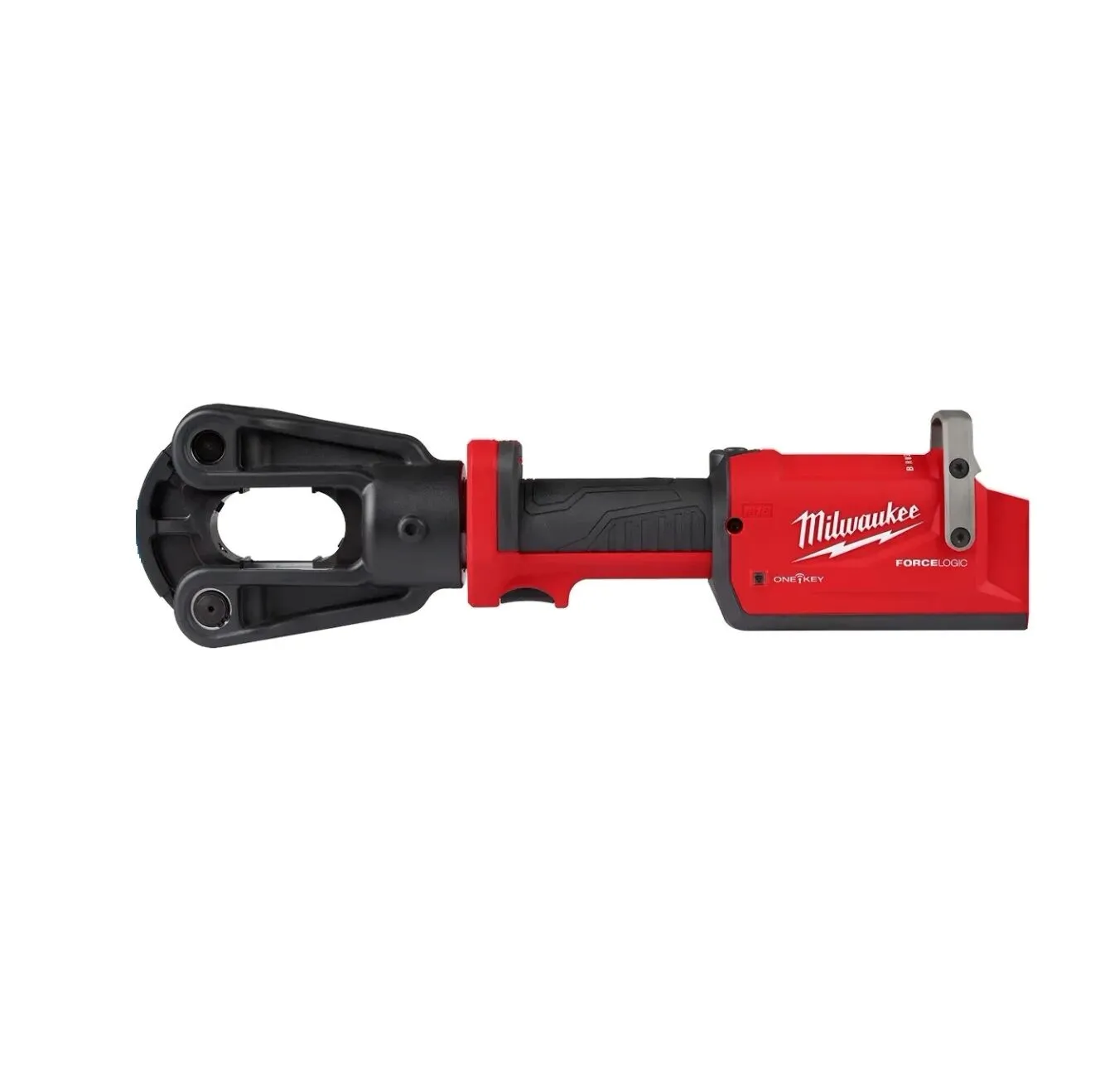

MILWAUKEE M18™ FORCE LOGIC™ 12T Latched Linear Crimper

The linear crimper is designed to allow one-handed use in multiple orientations. An enlarged trigger and electronic release button enable both left and right-handed users to easily activate the tool while wearing Class 3 gloves. The head of the crimper rotates 340° and the quick release and push-to-close style latch pin can be easily opened or secured with just one touch. Predictive Force Monitoring (PFM™) constantly measures output force to deliver the fastest crimp speeds across all connector types and sizes and ensures full pressure is reached every time. A pre-crimp battery check confirms that the battery has enough charge to complete a full crimp. Full compatibility with all industry-standard U-dies allows you to use the dies already on your truck. Our crimper creates UL Classified crimps per UL 486A-B on #8 – 750 MCM Copper and Dual Rated Anderson, Blackburn®, Burndy, Ilsco, Panduit, Penn-Union, and Thomas & Betts color-coded lugs and splices when using our EXACT™ 12T U-Dies. Our crimper is integrated with our ONE KEY™ Technology, giving the crimper the ability to store real-time crimp data.

• Lightest, most balanced inline design delivers maximum control
• PREDICTIVE FORCE MONITORING (PFM™) ensures full pressure
• Fastest 12T crimper
• Inline design & 340° rotating head provides easy access in tight spaces
• Quick release and push-to-close pin design provides easy access around splices
• Compatible with all industry standard U-dies
• Creates UL Classified crimps under UL 486A-B for #8 – 750 MCM Cu and Dual Rated lugs and splices across several leading manufacturers when used with corresponding Milwaukee® dies
• Pre-crimp battery check automatically ensures enough charge to complete each crimp
• Instant verification of successful cycle with green LED
• Hydraulic system optimized for consistent performance from -4° to 140° F
• Longer life with POWERSTATE™ brushless motor & weather protected electronics that keep dirt, dust & moisture out
• Records & stores every crimp made for professional report building through ONE KEY™
• Compatible with the entire M18™ System

Includes:

(1) M18™ FORCE LOGIC™ 12T Latched Linear Crimper(2878-22)

(2) M18™ REDLITHIUM™ CP2.0 Battery(48-11-1820)

(1) M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Pack(48-11-1850)

(1) M18™ & M12™ Multi-Voltage Charger(48-59-1812)

(1) Overhead Crimper Utility Bag
